CAMERA & REAR MONITOR DISPLAY

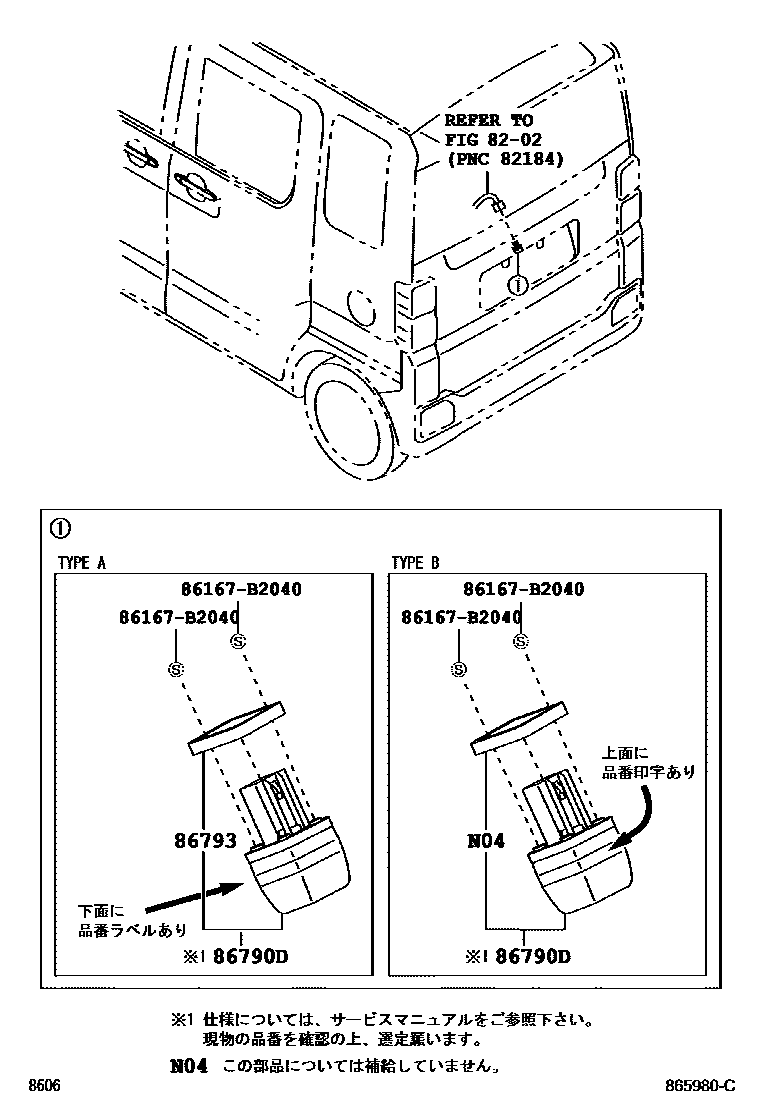

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

86790DCAMERA ASSY, TELEVISION, RR

main86795-B2041i201507-201605

main86795-B2050i201507-201605

main86795-B2150i201801

86793SPACER, CAMERA BRACKET

main86793-B2020i201507-201605

86167B2040SCREW, SPEAKER

main86167-B2040

4 parts on this diagram · 1 diagram in section
