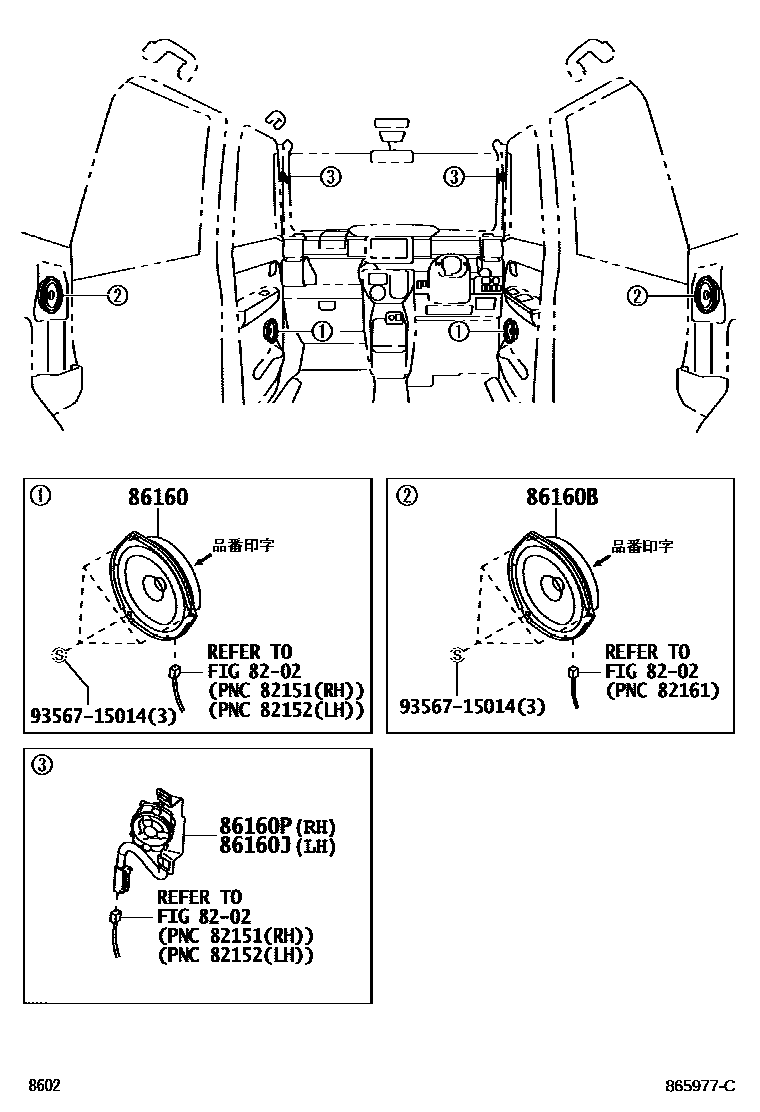

SPEAKER

8202WIRING & CLAMP

→ Go to FIG 82-02

86160SPEAKER ASSY, FRONT NO.1

main86160-B2400×2iLA700,710202207

main86160-B2420×2iLA700,710201605-201801

main86160-B2520×2iLA700,710201909-202201

86160BSPEAKER ASSY, REAR

main86160-B2400×2iLA700,710202207

main86160-B2420×2iLA700,710202201-202206

main86160-B2520×2iLA700,710201909-202201

86160JSPEAKER ASSY, FRONT NO.3

main86160-B2350iLA700,710201605-201801

86160PSPEAKER ASSY, FRONT NO.2

main86160-B2340iLA700,710201605-201801

9356715014

main93567-15014

6 parts on this diagram · 1 diagram in section
