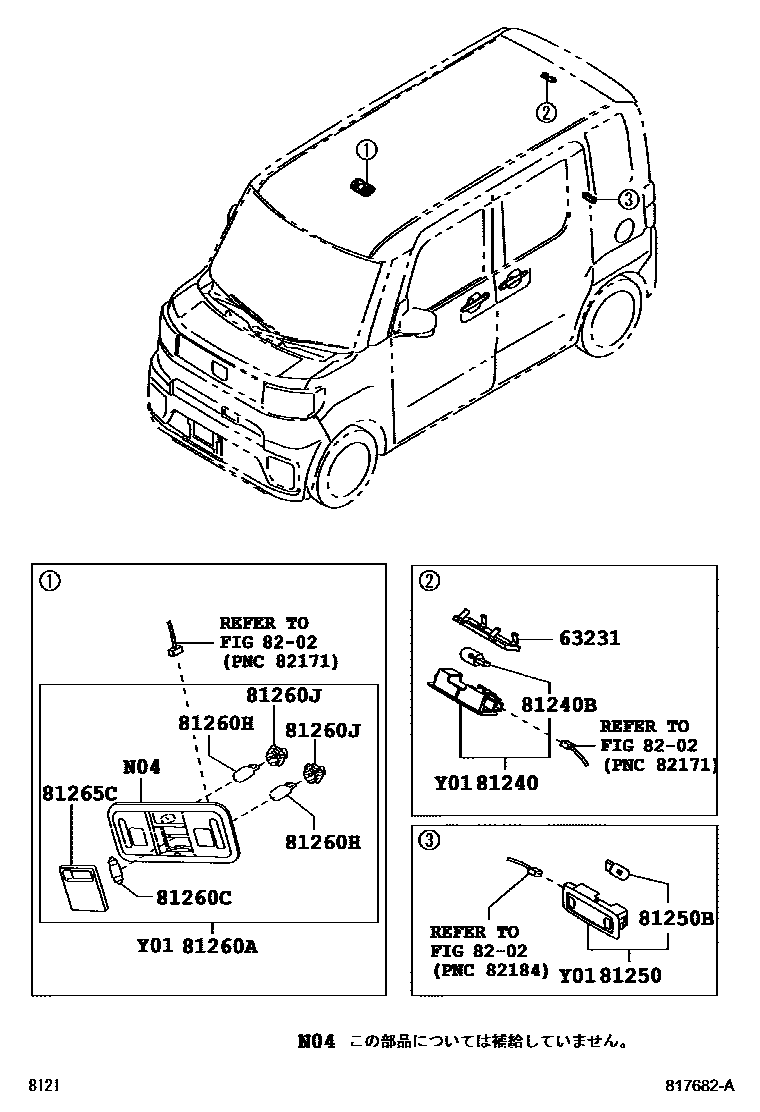

INTERIOR LAMP

63231BRACKET, ROOM LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-B2090-B2i201507-201605

DK.GRAY,TRIM1#

main81240-B2170-B0supersedes 81240-B2090-B2i201605

81240BBULB, ROOM LAMP, NO.1

81250LAMP ASSY, ROOM, NO.2

main81240-B2160-B0i201507-201605

DK.GRAY,TRIM1#

main81240-B2180-B0supersedes 81240-B2160-B0i201605

81250BBULB, ROOM LAMP, NO.2

81260ALAMP ASSY, MAP

main81260-B1010-B1i201507-201605

DK.GRAY,TRIM1#

main81260-B2060-B1supersedes 81260-B2030-B1i201605-201903

main81260-B2070-C0supersedes 81260-B2030-C0i201904

81260CBULB(FOR MAP LAMP)

main90049-51153i201507-201605

main84999-B2020×2supersedes 90981-11013i201605-201903

main84999-B2090×2i201904

81260HBULB(FOR MAP LAMP), NO.2

main90981-11013×2i201507-201605

81260JSOCKET, BULB(FOR MAP LAMP)

main83101-87705×2i201507-201605

81265CLENS, MAP LAMP, NO.1

main81265-97201i201507-201605

main81265-B2040supersedes 81265-B2030i201605

8202WIRING & CLAMP

11 parts on this diagram · 2 diagrams in section
