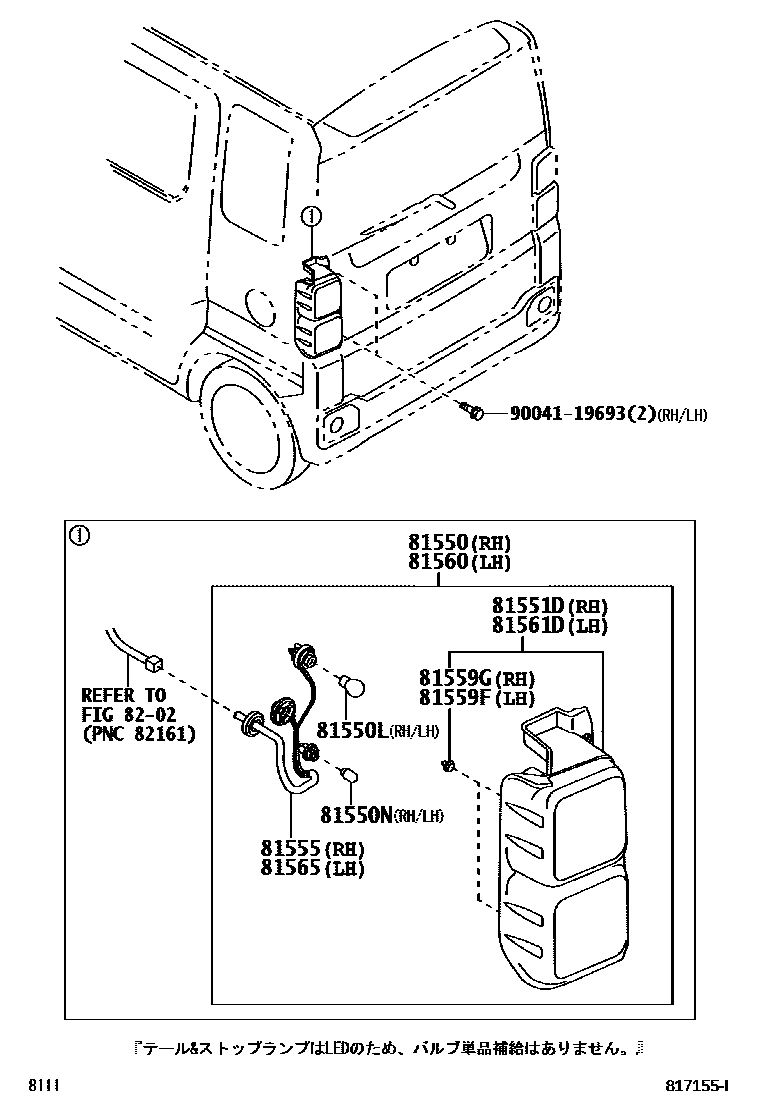

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-B2610iLA700,710201507-201605

main81550-B2720iLA700,710201605

81550LBULB, REAR TURN SIGNAL LAMP

main90049-51148×2iLA700,710201605

81550NBULB, BACK UP LAMP

main90981-11059×2iLA700,710201507-201605

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-B2380iLA700,710201605

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-B2330iLA700,710201507-201605

main81555-B2350iLA700,710201605

81559FCLIP, RR COMBINATION LAMP, LH

main81559-B2190×2iLA700,710201605

81559GCLIP, RR COMBINATION LAMP, RH

main81559-B2190×2iLA700,710201605

81560LAMP ASSY, REAR COMBINATION, LH

main81560-B2610iLA700,710201507-201605

main81560-B2720iLA700,710201605

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-B2380iLA700,710201605

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-B2330iLA700,710201507-201605

main81555-B2350iLA700,710201605

8202WIRING & CLAMP

→ Go to FIG 82-02

9004119693

main90041-19693

12 parts on this diagram · 2 diagrams in section
