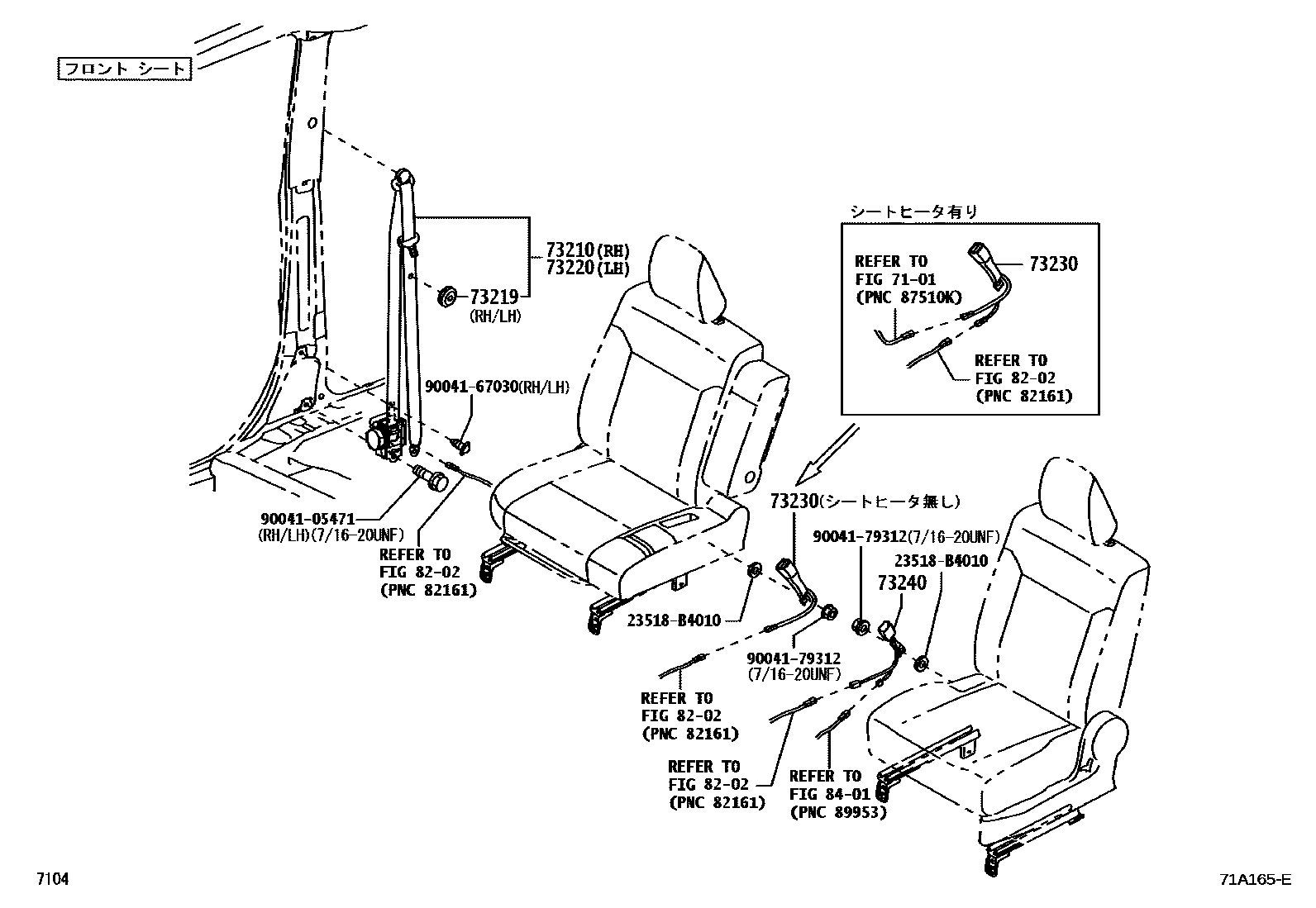

SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0002 1�����

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-B2E90-C0iLA700,710201507-201605

BLACK,TRIM1#

73219STOPPER, TONGUE PLATE

main73690-87401iLA700,710201605

main73690-B1010iLA700,710201605

main73690-B1020iLA700,710201605

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-B2710-C0iLA700,710201605

BLACK,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-B2660-B0supersedes 73230-B2520-B1iLA700; LA710201507-201605

main73230-B2530-B1iLA700..NTBO; LA700..TBO201507-201605

main73230-B2670-B0iLA700..NTBO; LA700..TBO; LA710..NTBO; LA710..TBO201507-201605

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-B2680-B0iLA700,710201605

DK.GRAY,TRIM1#

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

23518B4010WASHER, WAVE(FOR ELASTIC FACE VALVE SET)

main23518-B4010

9004105471

main90041-05471

9004167030

main90041-67030

9004179312

main90041-79312

12 parts on this diagram · 2 diagrams in section
