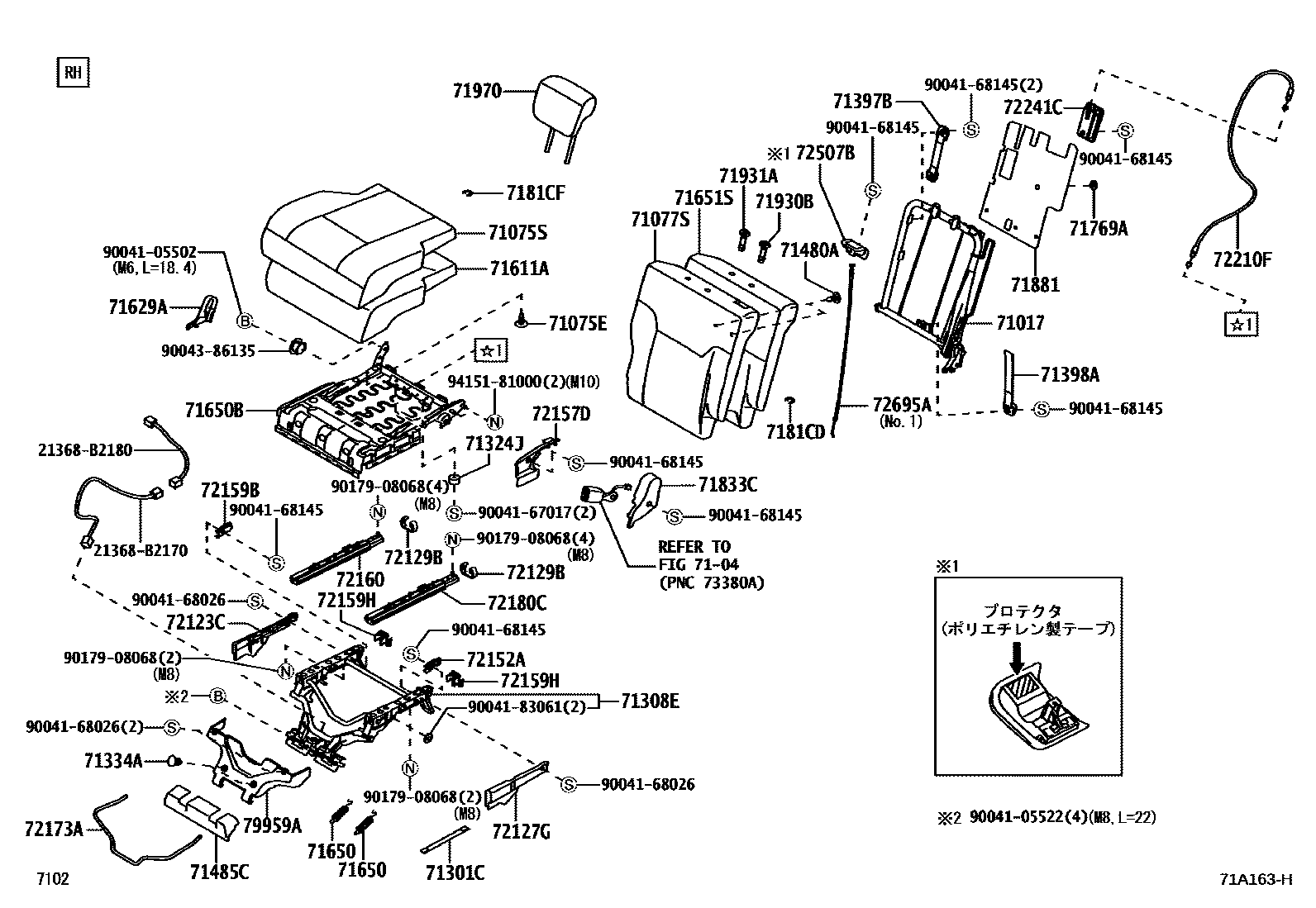

REAR SEAT & SEAT TRACK

0001 1RH 0002 1RH 0003 1LH 0004 1LH 0005 1

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-B2590iLA700,710201507-201605

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075ECLIP(FOR REAR SEAT)

main90044-68185-B1iLA700,710201507-201605

DK.GRAY

71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

main71075-B2G60-C1iLA700,710..NTBO201605-201807

main71075-B2G60-C1iLA700,710..NTBO201507-201605

OFF BLACK,TRIM1#

main71075-B2G61-C1iLA700,710..NTBO201807

main71075-B2G70-C1iLA700,710..TBO201605-201807

main71075-B2G70-C1iLA700,710..TBO201507-201605

OFF BLACK,TRIM1#

main71075-B2G71-C1iLA700,710..TBO201807

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-B2K90-C2iLA700,710..NTBO201507-201512

OFF BLACK,TRIM1#

main71077-B2K91-C2iLA700,710..NTBO201512-201909

OFF BLACK,TRIM1#

main71077-B2K92-C2iLA700,710..NTBO201909

OFF BLACK,TRIM1#

main71077-B2L00-C2iLA700,710..TBO201507-201512

OFF BLACK,TRIM1#

main71077-B2L01-C2iLA700,710..TBO201512-201909

OFF BLACK,TRIM1#

main71077-B2L02-C2iLA700,710..TBO201909

OFF BLACK,TRIM1#

71301CLINK SUB-ASSY, REAR SEAT CUSHION

main71301-B2051iLA700,710201507-201605

71308ELEG SUB-ASSY, REAR SEAT, RH

main71308-B2160iLA700,710201507-201605

71324JCUSHION, REAR SEAT

main90045-40125iLA700,710201507-201605

71334ASTOPPER, REAR SEAT LEG

main71334-B2030-B2iLA700,710201507-201611

DK.GRAY,TRIM1#

main71334-B2030-C0iLA700,710201611

BLACK,TRIM1#

71397BHOLDER, REAR SEATBACK, RH

main71398-B2040-B0iLA700,710201507-201611

DK.GRAY,TRIM1#

main71398-B2040-C0iLA700,710201611-201909

BLACK,TRIM1#

main71398-B2041-C0iLA700,710201909

BLACK,TRIM1#

71398AHOLDER, REAR SEATBACK

main71398-B2030-B1iLA700,710201507-201611

DK.GRAY,TRIM1#

main71398-B2030-C0iLA700,710201611

BLACK,TRIM1#

71480ACLIP (FOR REAR SEATBACK)

main90044-68028-B0iLA700,710201507-201605

DK.GRAY,TRIM1#

71485CCOVER, REAR SEAT HINGE, RH

main71485-B2160-B0iLA700,710201507-201610

DK.GRAY,TRIM1#

main71485-B2160-C0iLA700,710201611

BLACK,TRIM1#

71611APAD, REAR SEAT CUSHION, RH

main71503-B2580iLA700,710201507-201605

71629ACOVER, REAR SEAT CUSHION HINGE, RH

main71629-B2080-B0iLA700,710201507-201611

DK.GRAY,TRIM1#

main71629-B2080-C0iLA700,710201611

BLACK,TRIM1#

71650SPRING ASSY, REAR SEAT CUSHION

main44699-B2070iLA700,710201507-201605

71650BSPRING ASSY, REAR SEAT CUSHION, RH

main71055-B2071iLA700,710201507-201908

main71055-B2090iLA700,710201909

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71507-B2610iLA700,710201507-201605

71769ACLIP, REAR SEATBACK BOARD

main71769-B2010iLA700,710201507-201605

7181CDRING, HOG, SMALL (FOR REAR SEATBACK)

main71812-87201iLA700,710201507-201605

7181CFRING, HOG, SMALL (FOR REAR SEAT CUSHION)

main71812-87201iLA700,710201507-201605

71833CCOVER, REAR SEAT RECLINING, NO.2 RH

main71833-B2090-B0iLA700,710201507-201611

DK.GRAY,TRIM1#

main71833-B2090-C0iLA700,710201611

BLACK,TRIM1#

71881BOARD, REAR SEATBACK, RH

main71881-B2130iLA700,710201507-201909

main71881-B2150iLA700,710201909

71930BSUPPORT ASSY, REAR SEAT HEADREST

main71930-B2010-B0iLA700,710201507-201611

DK.GRAY,TRIM1#

main71930-B2010-C1iLA700,710201611

BLACK,TRIM1#

71931ASUPPORT, REAR SEAT HEADREST

main71931-B2010-B0iLA700,710201507-201611

main71931-B2010-C1iLA700,710201611

71970HEADREST ASSY, REAR SEAT

main71940-B2870-C1iLA700,710201507-201605

BLACK,TRIM1#

72123CCOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-B2050-B0iLA700,710201507-201611

DK.GRAY,TRIM1#

main72123-B2050-C0iLA700,710201611

BLACK,TRIM1#

72127GCOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72123-B2060-B0iLA700,710201507-201611

DK.GRAY,TRIM1#

main72123-B2060-C0iLA700,710201611

BLACK,TRIM1#

72129BPROTECTOR, SEAT TRACK LOWER RAIL

main72129-B2030iLA700,710201507-201605

72152ACOVER, REAR SEAT TRACK BRACKET, INNER

main72152-B2100-B0iLA700,710201507-201611

DK.GRAY,TRIM1#

main72152-B2100-C0iLA700,710201611

BLACK,TRIM1#

72157DCOVER, SEAT TRACK BRACKER, INNER RH

main72157-B2050-B0iLA700,710201507-201611

DK.GRAY,TRIM1#

main72157-B2050-C0iLA700,710201611

BLACK,TRIM1#

72159BCOVER, REAR SEAT TRACK BRACKET, OUTER

main72152-B2080-B0iLA700,710..NTBO201507-201611

DK.GRAY,TRIM1#

main72152-B2080-C0iLA700,710..NTBO201611

BLACK,TRIM1#

72159HCOVER, REAR SEAT TRACK BRACKET

main72157-B2030iLA700,710201507-201605

72160TRACK ASSY, REAR SEAT, OUTER RH

main72160-B2070iLA700,710201507-201605

72173AHANDLE, REAR SEAT TRACK ADJUSTING, RH

main72173-B2111iLA700,710201507-201605

72180CTRACK ASSY, REAR SEAT, INNER RH

main72160-B2070iLA700,710201507-201605

72210FCABLE ASSY, SEAT TRACK CONTROL

main72210-B1050iLA700,710201909

main72210-B2031iLA700,710201507-201909

72241CLEVER, OUTER SEAT TRACK LOCK, RH

main72303-B1040-C0iLA700,710201909

BLACK,TRIM1#

main72303-B2040iLA700,710201507-201605

main72303-B2040-C0iLA700,710201605-201909

BLACK,TRIM1#

72507BHANDLE SUB-ASSY, RECLINING RELEASE, RH

main72507-B2100-B0iLA700,710201507-201605

main72507-B2100-C0iLA700,710201605-201812

main72507-B2130-C0iLA700,710201901

72695ACABLE, REAR SEAT LOCK CONTROL

main72695-B2090iLA700,710201507-201605

main72695-B2110iLA700,710201507-201605

79959ACOVER, REAR SEAT LEG, RH

main79959-B2150-B0iLA700,710201507-201611

DK.GRAY,TRIM1#

main79959-B2150-C0iLA700,710201611

BLACK,TRIM1#

21368B2170HARNESS

main21368-B2170

21368B2180HARNESS

main21368-B2180

9004105502

main90041-05502

9004105522

main90041-05522

9004167017

main90041-67017

9004168026

main90041-68026

9004168145

main90041-68145

9004183061

main90041-83061

9004386135

main90043-86135

9017908068

main90179-08068

9415181000

main94151-81000
