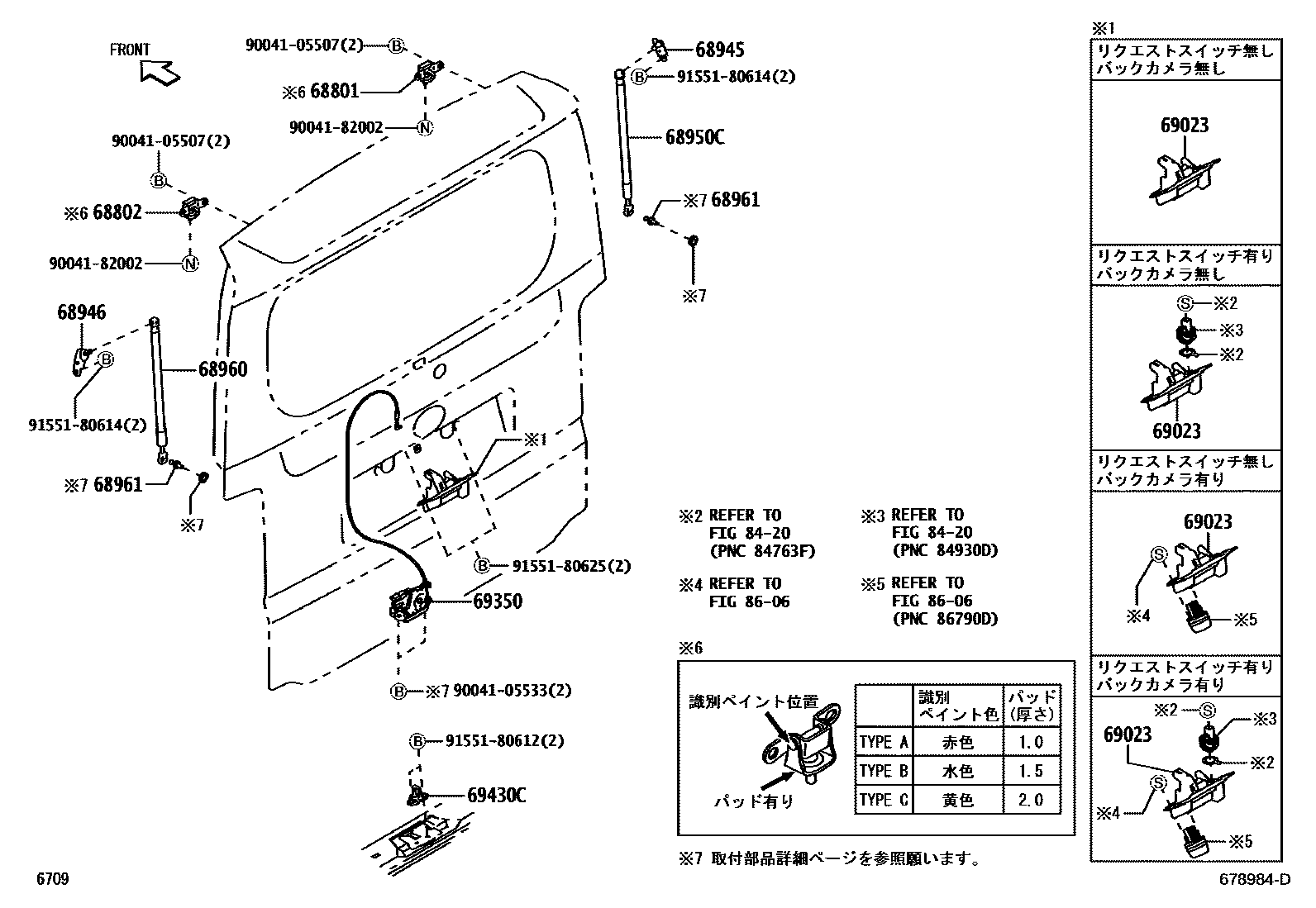

BACK DOOR LOCK & HANDLE

0001 1 0002 1 0003 1�������������

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-B1050iLA700,710201611

main68801-B1060iLA700,710201611

main68801-B1070iLA700,710201611

main68801-B2150iLA700,710201605-201610

main68801-B2160iLA700,710201605-201610

main68801-B2170iLA700,710201507-201605

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68802-B1010iLA700,710201611

main68802-B1020iLA700,710201611

main68802-B1030iLA700,710201611

main68802-B2050iLA700,710201507-201605

main68802-B2060iLA700,710201605-201610

main68802-B2070iLA700,710201507-201605

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-B2060iLA700,710201507-201605

main68945-B2100iLA700,710201605

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-B2070iLA700,710201507-201605

main68946-B2100iLA700,710201605

68950CSTAY ASSY, BACK DOOR, RH

main68950-B2390iLA700,710201605

68960STAY ASSY, BACK DOOR, LH

main68960-B2230iLA700,710201605

68961BOLT, BACK DOOR STAY

main68961-B2020×2iLA700,710201507-201605

main68961-B2040×2iLA700,710201605

69023HANDLE SUB-ASSY, BACK DOOR OUTSIDE

main69023-B2061supersedes 69090-B2231iLA700..D201605

main69023-B2081supersedes 69023-B2071iLA700,710..G,L,X201507-201605

69350LOCK ASSY, BACK DOOR

main69350-B2340iLA700,710201605

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-B2070iLA700,710201605

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9004105507

main90041-05507

9004105533

main90041-05533

9004182002

main90041-82002

9155180612

main91551-80612

9155180614

main91551-80614

9155180625

main91551-80625

18 parts on this diagram · 3 diagrams in section
