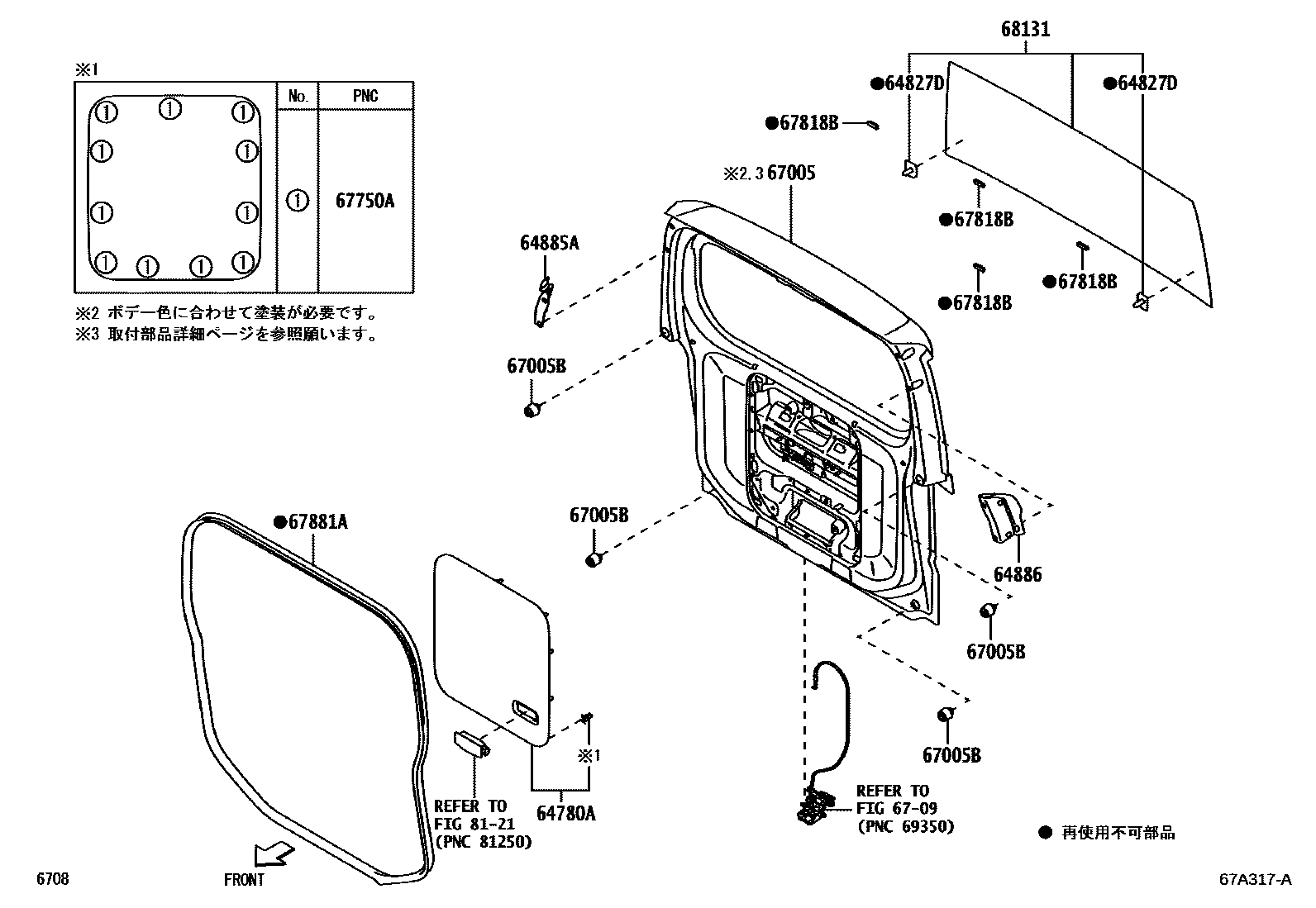

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1�������������

64780APANEL ASSY, BACK DOOR TRIM

main64780-B2170-B0iLA700,710201605-202208

DK.GRAY,TRIM1#

64827DCLIP, BACK WINDOW GLASS

main64827-B2040×2iLA700,710201605

64885ACHANNEL, BACK WINDOW GLASS, RH

main64885-B2021iLA700,710201605

64886CHANNEL, BACK WINDOW GLASS, LH

main64886-B2021iLA700,710201605

67005PANEL SUB-ASSY, BACK DOOR

main67005-B2F90iLA700,710201507-201605

main67005-B2G00iLA700,710201605-201801

main67005-B2G10iLA700,710201801-202208

67005BCUSHION(FOR BACK DOOR PANEL)

main90045-41273×4iLA700,710201605

6709BACK DOOR LOCK & HANDLE

→ Go to FIG 67-09

67750ACLIP(FOR BACK DOOR TRIM)

main90044-68324×11iLA700,710201605-202208

67818BSPACER, BACK WINDOW GLASS

main64818-B2010×4iLA700,710201605

67881AWEATHERSTRIP, BACK DOOR

main67881-B2320iLA700,710201605

68131GLASS, BACK DOOR

main68105-B2320iLA700,710201605

8121INTERIOR LAMP

→ Go to FIG 81-21

12 parts on this diagram · 4 diagrams in section
