DECK BOARD & DECK TRIM COVER

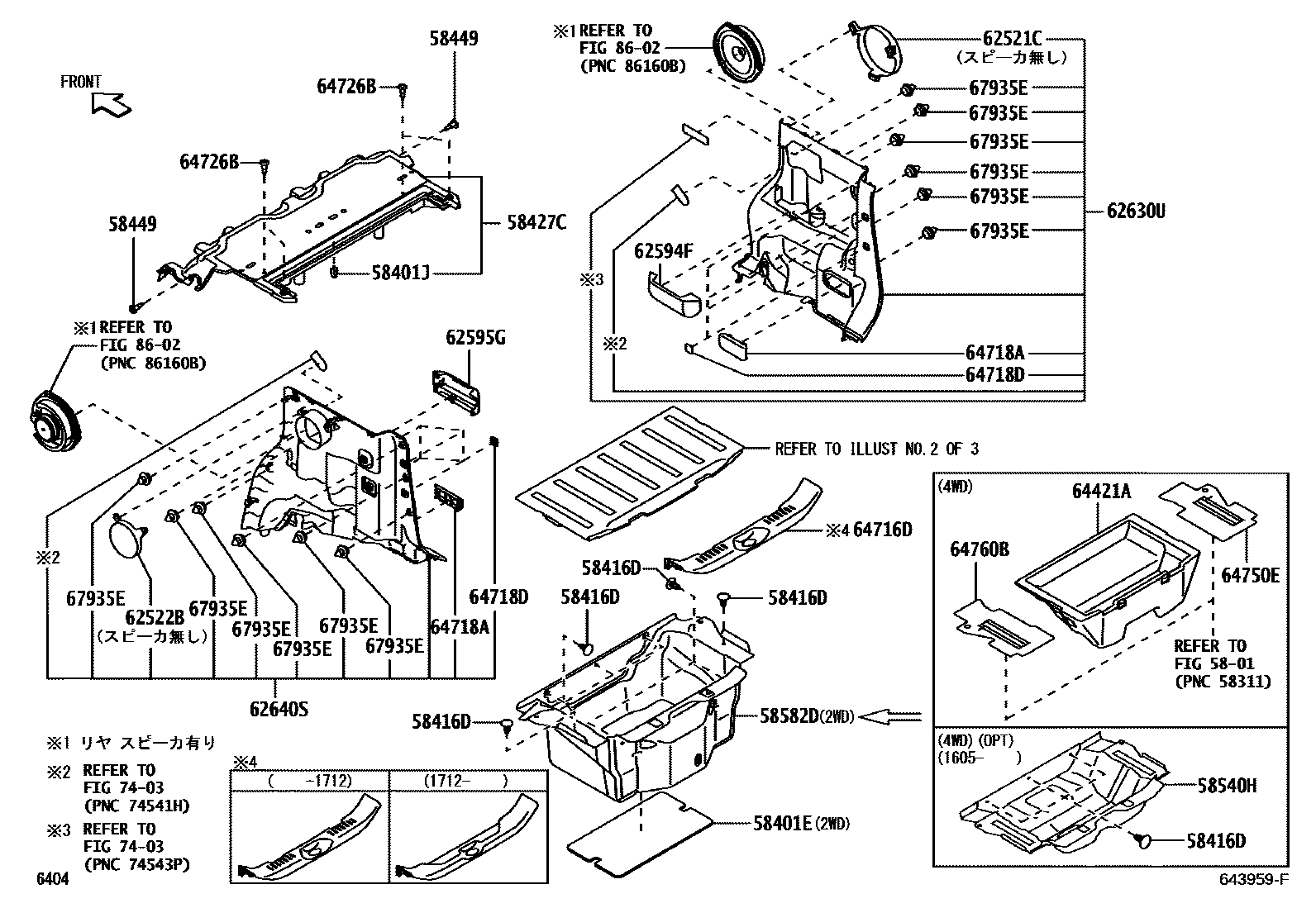

Parts diagram
5801FLOOR PAN & LOWER BACK PANEL
→ Go to FIG 58-01
58401EBOARD SUB-ASSY, DECK
main58401-B2100i201605
58401JCLIP(FOR DECK BOAD)
main90044-68306i201507-201605
58416DCLIP, REAR FLOOR BOARD
main90044-68046-B2×7i201605-201610
main90044-68046-C2×7i201611
58427CSPACER, REAR FLOOR BOARD
main58427-B2160-B0i201605
DK.GRAY,TRIM1#
58449CLIP, DECK BOARD
main90044-67579-B0×2i201605-201610
DK.GRAY,TRIM1#
main90044-67579-C2×2i201611
BLACK,TRIM1#
58540HMAT ASSY, FLOOR, REAR
main58540-B2030i201605
58582DMAT, REAR FLOOR, REAR
main58582-B2010i201507-201605
main58540-B2020i201605
62521CCOVER, QUARTER TRIM RH
main62538-B2030-B0i201605
DK.GRAY,TRIM1#
62522BCOVER, QUARTER TRIM LH
main62538-B2030-B0i201605
DK.GRAY,TRIM1#
62594FPOCKET, QUARTER TRIM, RH
main62594-B2050-B0i201605
DK.GRAY,TRIM1#
62595GPOCKET, QUARTER TRIM, LH
main62595-B2060-B0i201605
DK.GRAY,TRIM1#
62630UPANEL ASSY, QUARTER TRIM, REAR RH
main62630-B2560-B0i201605
DK.GRAY,TRIM1#
main62630-B2570-B0i201605-201801
62640SPANEL ASSY, QUARTER TRIM, REAR LH
main62640-B2530-B0i201605
DK.GRAY,TRIM1#
main62640-B2540-B0i201605-201801
64421ATRAY, LUGGAGE COMPARTMENT
main64421-B2150i201605-201711
main64421-B2151i201712
64716DCOVER, DECK TRIM, REAR
main64716-B2200-B0i201507-201605
DK.GRAY,TRIM1#
main64716-B2250-B0i201712
DK.GRAY,TRIM1#
64718ACOVER, DECK TRIM SERVICE HOLE
main64718-B2130-B0×2i201605
DK.GRAY,TRIM1#
64718DCOVER, DECK TRIM SERVICE HOLE
main64718-B2170-B0×8i201605
DK.GRAY,TRIM1#
64726BCLIP, DECK REAR TRIM
main90044-68382-B0×4i201605-201610
DK.GRAY,TRIM1#
main90044-68382-C0×4i201611
BLACK,TRIM1#
64750ECARPET SUB-ASSY, DECK TRIM SIDE, RH
main58540-B2010i201605
64760BCARPET SUB-ASSY, DECK TRIM SIDE, LH
main58550-B2010i201605
67935ERETAINER, DOOR TRIM
main67771-B2010×12i201605
7403CAUTION PLATE (EXTERIOR & INTERIOR)
→ Go to FIG 74-03
8602SPEAKER
→ Go to FIG 86-02

24 parts on this diagram · 3 diagrams in section
