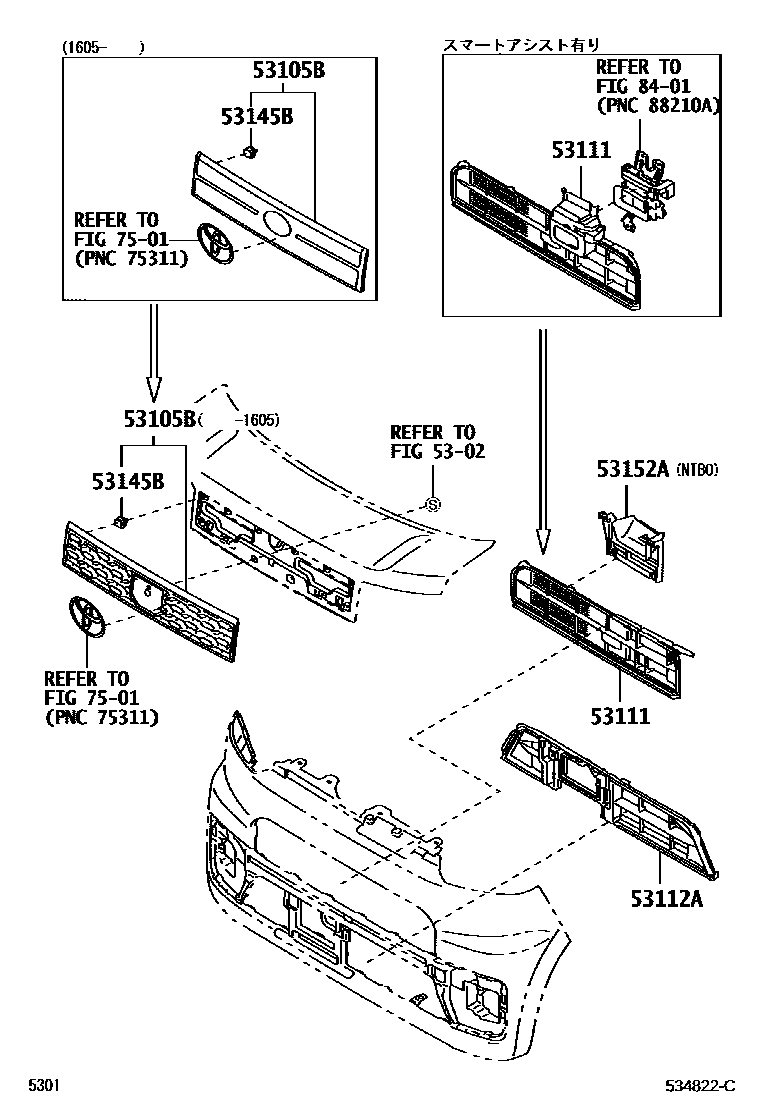

RADIATOR GRILLE

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53105BGARNISH SUB-ASSY, RADIATOR GRILLE

main53105-B2310iLA700,710201507-201605

main53105-B2350iLA700,710..NTBO201605

main53105-B2440iLA700,710..TBO201605

53111GRILLE, RADIATOR

main53111-B2620iLA700,710201507-201605

main53111-B2820iLA700..D201605-201801

main53111-B2830iLA700..D..PS1;LA700,710..PS2201605

53112AGRILLE, RADIATOR, LOWER

main53112-B2380iLA700,710201507-201605

53145BCLIP, RADIATOR GRILLE GARNISH

main53145-B2010iLA700,710201605

main53145-B2030iLA700,710201507-201605

53152AGUIDE, RADIATOR GRILLE AIR

main53152-B2080iLA700,710..NTBO201507-201605

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8 parts on this diagram · 1 diagram in section
