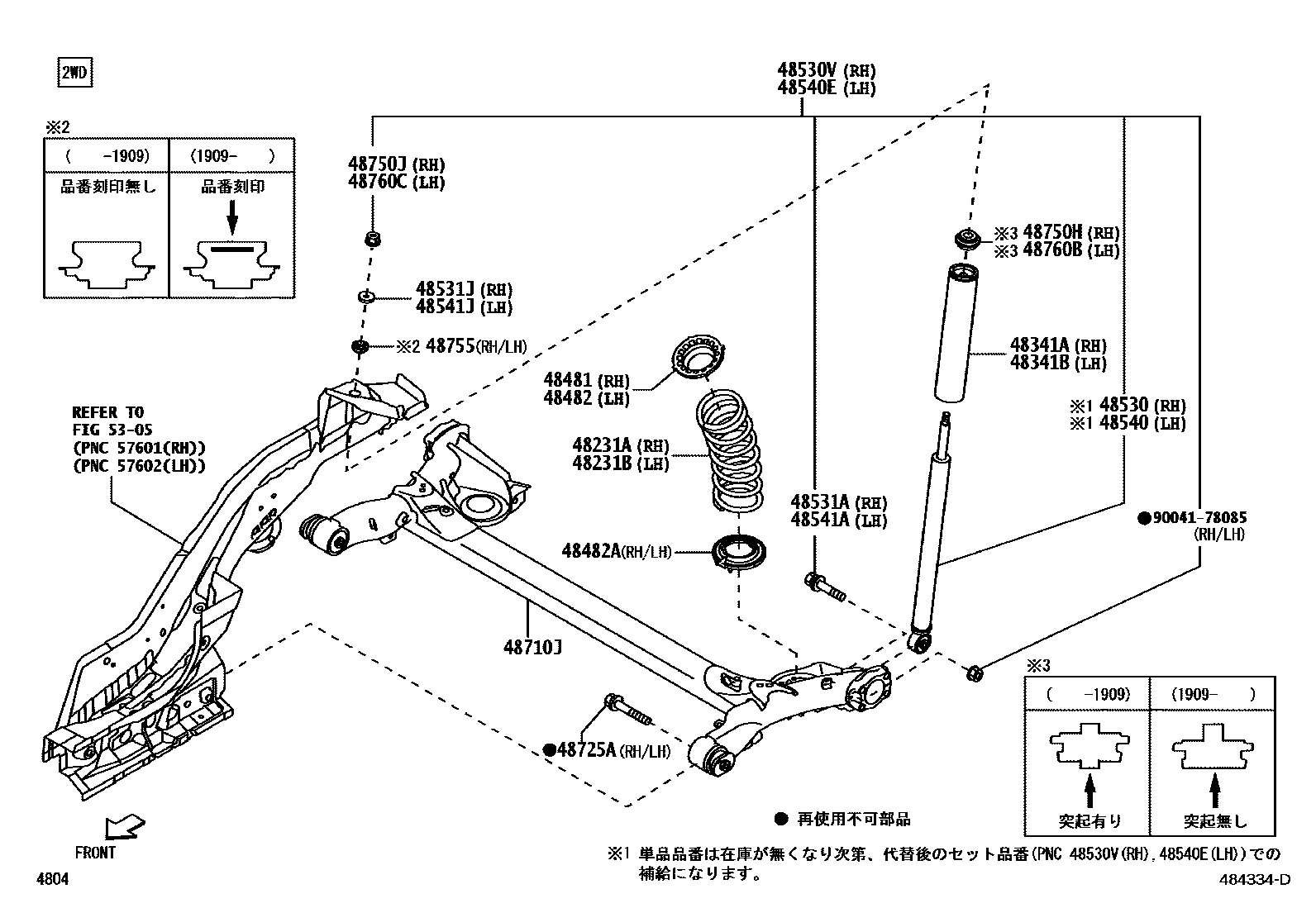

REAR SPRING & SHOCK ABSORBER

0001 12WD 0002 14WD

48231ASPRING, COIL, REAR RH

main48231-B2B50iLA700201507-201605

main48231-B2B60iLA710201507-201605

48231BSPRING, COIL, REAR LH

main48231-B2B50iLA700201605

main48231-B2B60iLA710201605

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-B2020iLA710201507-201605

main48341-B2120iLA700201507-201605

main48341-B2121iLA700202109

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-B2020iLA710201605

main48341-B2120iLA700201605-202108

main48341-B2121iLA700202109

48481SEAT, REAR SPRING, UPPER

main48481-B2020iLA700201605

main48481-B2030iLA710201507-201605

48482SEAT, REAR SPRING, UPPER LH

main48481-B2020iLA700201507-201605

main48481-B2030iLA710201507-201605

48482ASEAT, REAR SPRING, LOWER

main48482-B2030×2iLA700201507-201605

main48482-B2040×2iLA710201605

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-B2G21iLA700201507-201605

main48531-B2G30iLA710201507-201605

48530VABSORBER SET, SHOCK, REAR RH

main48530-B9230iLA700201605

main48530-B9235iLA710201605

48531ABOLT, UNION(FOR REAR SHOCK ABSORBER RH)

main90041-01716iLA700201907

main90041-19A06iLA710;LA700..PS1201605-201909

48531JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH

main90042-01758iLA700,710201605

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-B2G21iLA700201507-201605

main48531-B2G30iLA710201507-201605

48540EABSORBER SET, SHOCK, REAR LH

main48530-B9230iLA700201605

main48530-B9235iLA710201605

48541ABOLT, UNION(FOR REAR SHOCK ABSORBER LH)

main90041-01716iLA700201907

main90041-19A06iLA710;LA700..PS1201605-201909

48541JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH

main90042-01758iLA700,710201605

48710JARM ASSY, REAR SUSPENSION, NO.1

main48710-B2271iLA700201605

48725ABOLT(FOR LOWER CONTROL ARM)

main48718-B2031×2iLA700201605-201907

main90041-19A37×2iLA700201907-202104

main90041-19A48×2iLA700202105

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-B2030iLA700201605-201909

main48750-B2031iLA700201909

main48750-B2040iLA710201507-201605

main48750-B2041iLA710201909

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main94188-01001iLA700,710201605

48755SUPPORT, REAR SUSPENSION

main48755-B2020×2iLA700,710201605-201909

main48755-B2040×2iLA700,710201909

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-B2030iLA700201507-201605

main48750-B2031iLA700201909

main48750-B2040iLA710201605-201909

main48750-B2041iLA710201909

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main94188-01001iLA700,710201507-201605

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9004178085

main90041-78085

24 parts on this diagram · 2 diagrams in section
