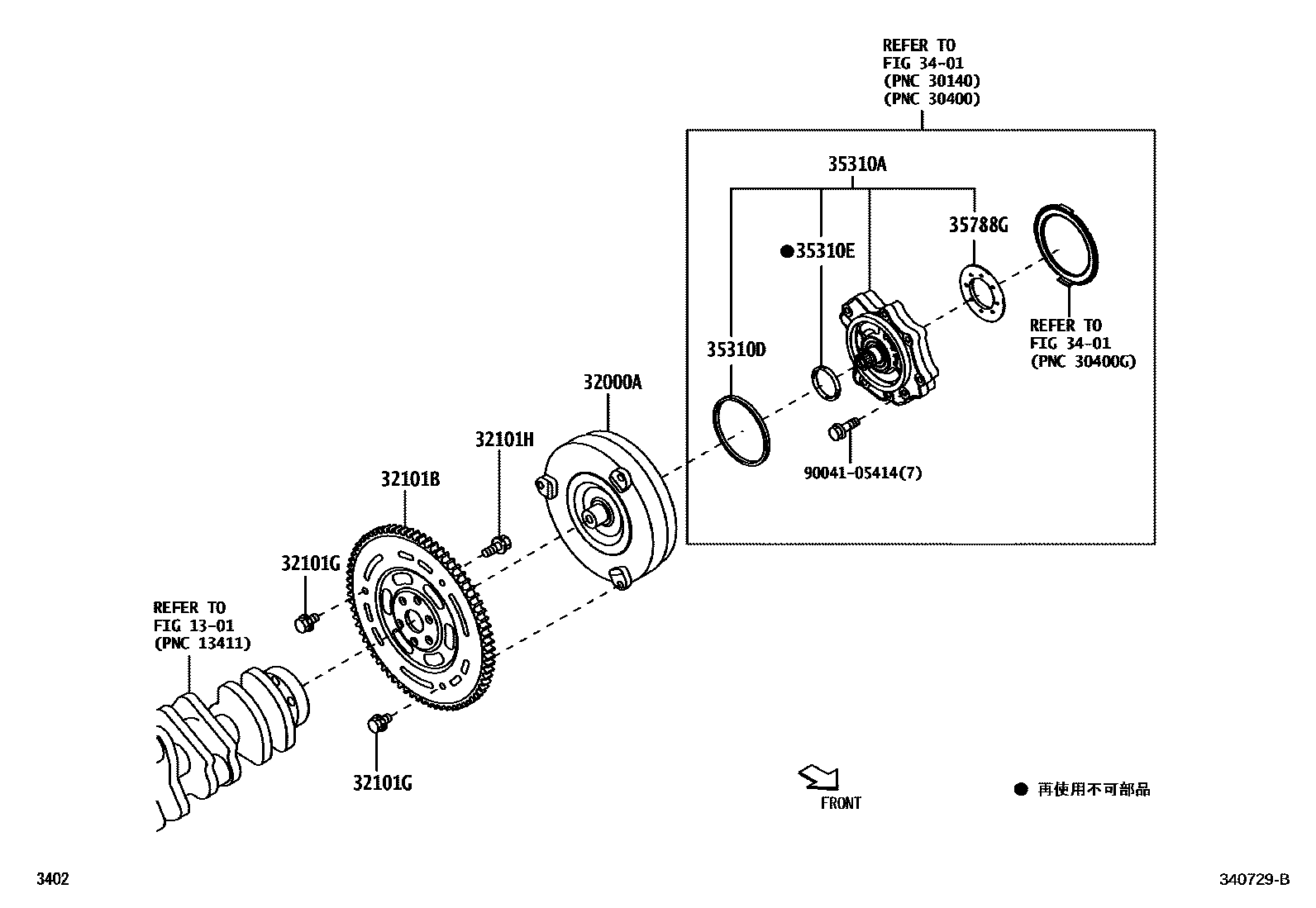

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

32000ACONVERTER ASSY, TORQUE

main32000-B2090iLA700,710..NTBO201507-201605

main32000-B2130iLA700,710..TBO201605

main32000-B2220iLA700,710..NTBO201801

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-B2021iLA700,710201605

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90041-05280iLA700,710201605-201908

main90041-05281×2iLA700,710201507-201605

main90041-05595iLA700,710201909

main90041-05596×2iLA700,710201909

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90048-01037×6iLA700,710201507-201605

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35310APUMP ASSY, FRONT OIL

main35310-B9051iLA700,710201507-201605

main35310-B9052iLA700,710201910

35310DRING, O (FOR FRONT OIL PUMP)

main90043-01332iLA700,710201605

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main90043-11423iLA700,710201605

35788GRACE, THRUST BEARING

main35789-B2061iLA700,710201507-201605

main35789-B2071iLA700,710201605

main35789-B2081iLA700,710201605

main35789-B2091iLA700,710201605

main35789-B2101iLA700,710201605

main35789-B2111iLA700,710201507-201605

9004105414

main90041-05414

11 parts on this diagram · 1 diagram in section
