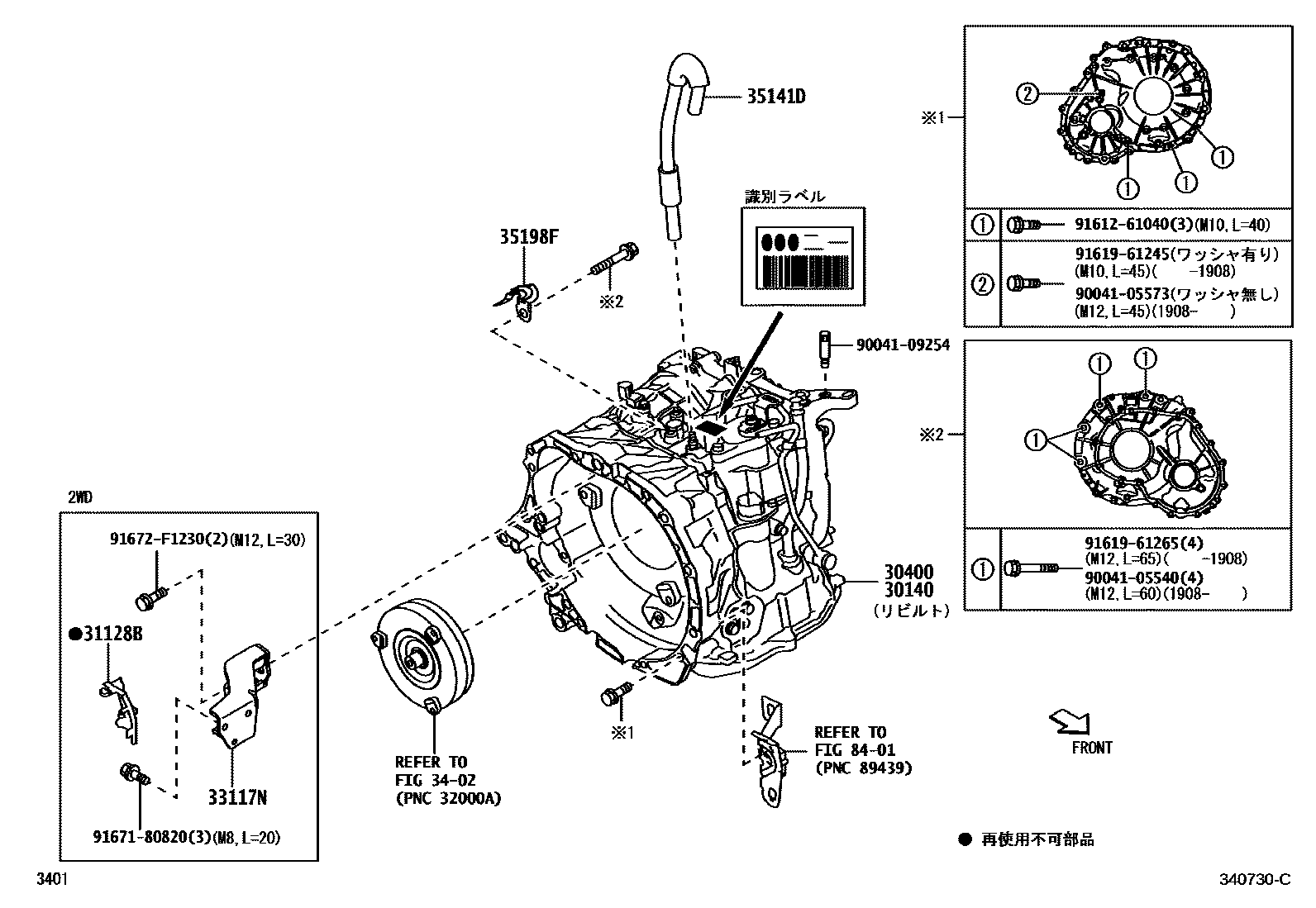

TRANSAXLE ASSY(CVT)

0001 1 0002 1 0003 1 0004 1 0005 1

30140TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER)

main30140-B0450iLA710..NTBO201507-201605

main30140-B0530iLA700..NTBO201507-201605

main30140-B0590iLA700..TBO201605

main30140-B0600iLA710..TBO201605

main30140-B0710iLA700..TBO201608

main30140-B0720iLA710..TBO201608

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-B2450iLA710..NTBO201605

main30400-B2530iLA700..NTBO201605

main30400-B2590iLA700..TBO201507-201605

main30400-B2600iLA710..TBO201605

main30400-B2710iLA700..TBO201608

main30400-B2720iLA710..TBO201608

31128BCOVER, CLUTCH HOUSING UNDER

main31128-B2060iLA700201605

33117NBRACKET, STIFFENER PLATE

main33117-B2010iLA700201605

3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)

→ Go to FIG 34-02

35141DHOSE(FOR BREATHER PLUG)

main35121-B2070iLA700,710201507-201605

main35121-B2080iLA700,710201910

35198FBRACKET, WIRE HARNESS CLAMP

main82715-B2510iLA700,710201605

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004105540

main90041-05540

9004105573

main90041-05573

9004109254

main90041-09254

9161261040

main91612-61040

9161961245

main91619-61245

9161961265

main91619-61265

9167180820

main91671-80820

91672F1230

main91672-F1230

16 parts on this diagram · 5 diagrams in section
