HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1��������� 0002 1������ 0003 1���

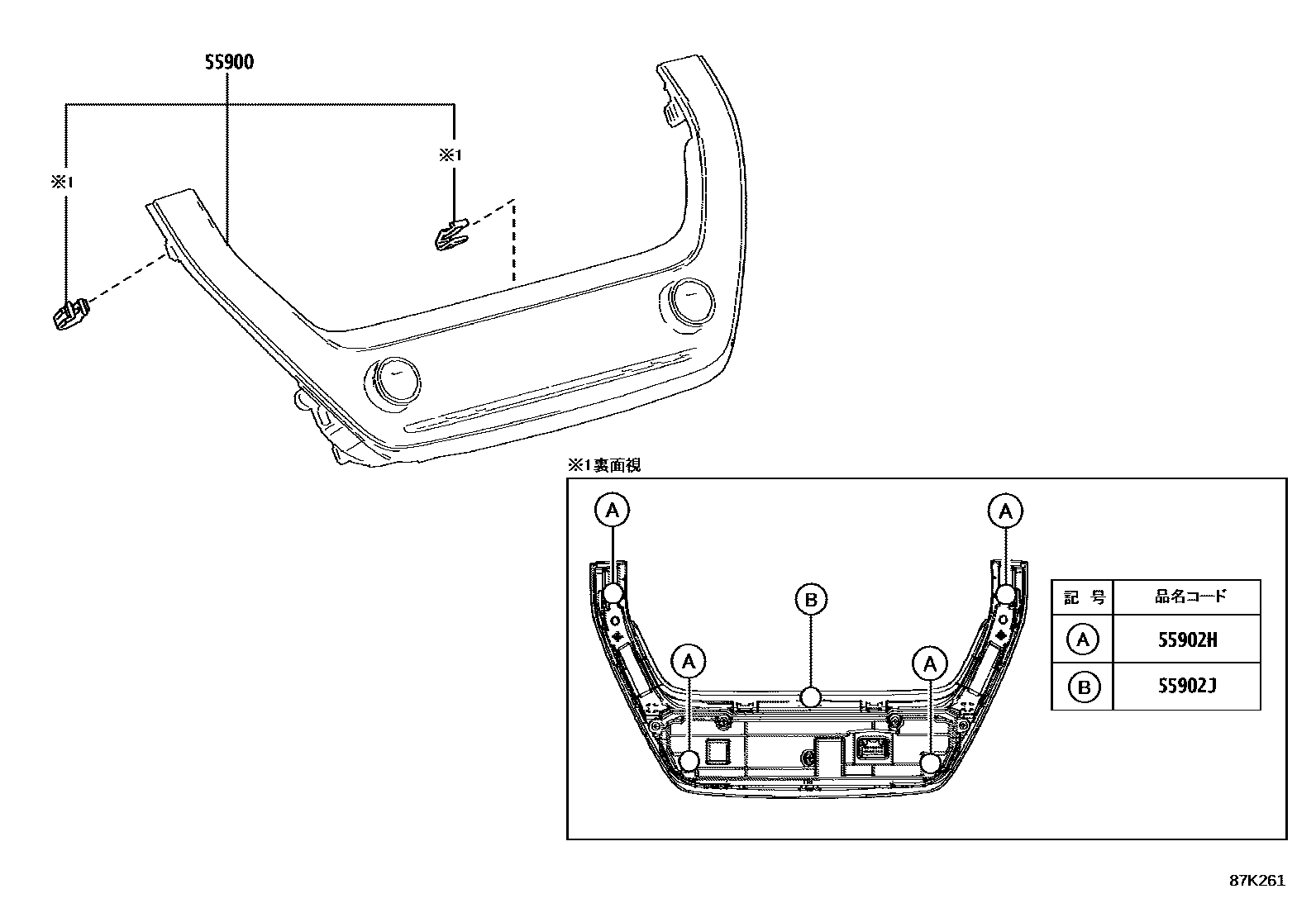

55900CONTROL ASSY, AIR CONDITIONER

main55900-12J90-B1iZVG1#..G202108-202310

SILVER,TRIM1#,2#

main55900-16480-B0iZSG10,ZVG1#..S,Z202108-202310

SILVER,TRIM1#,2#

main55900-16550-B0iMXGA10,ZVG1#..Z; ZVG1#..S202310

SILVER,TRIM2#; SILVER,TRIM2#,8#

main55900-16560-B0iZVG1#..G202310

SILVER,TRIM2#

main55900-12G90-B0supersedes 55900-12J70-B0iZSG10..G202108-202310

main55900-12J70-B0iZSG10..G202108-202310

main55900-12L01-B0supersedes 55900-12L11-B0iMXGA10..G202310

main55900-12L11-B0iMXGA10..G202310

55902HCLIP(FOR AIR CONDITIONER PANEL)

main90467-05171×4iMXGA10,ZVG1#202310

55902JCLIP(FOR AIR CONDITIONER PANEL) NO.2

main90468-08048iMXGA10,ZVG1#202310

3 parts on this diagram · 3 diagrams in section
