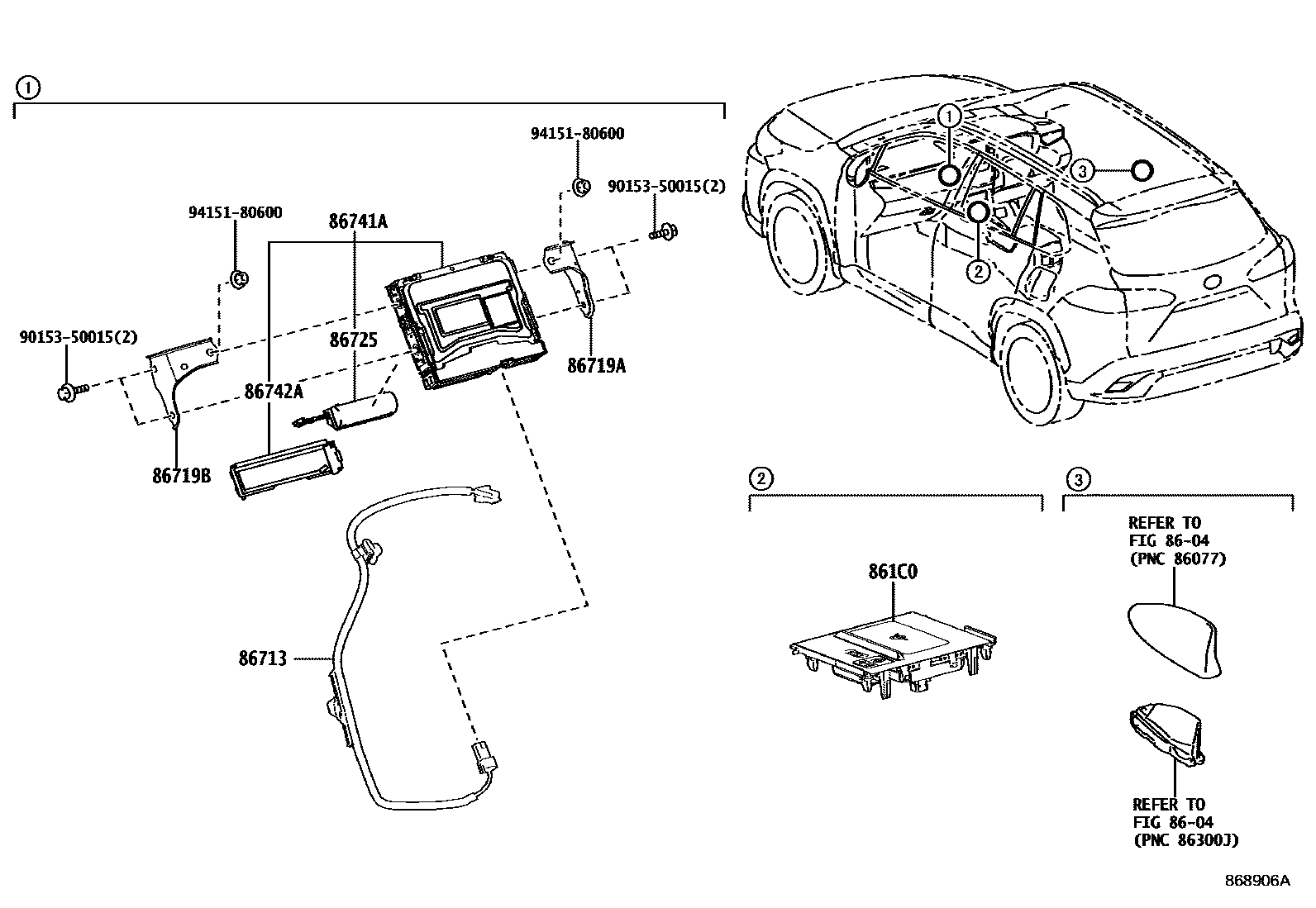

TELEPHONE & MAYDAY

8604ANTENNA

→ Go to FIG 86-04

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-16020iZSG10,ZVG1#202108-202310

main861C0-16040iMXGA10,ZVG1#..Z202310

86713WIRE, TELEPHONE COMPUTER

main86713-16010iZSG10,ZVG1#202108-202310

main86713-16040iMXGA10,ZVG1#..G202310

main86713-16050iMXGA10,ZVG1#..S,Z202310

86719ABRACKET, TELEPHONE NO.1

main86719-12010iMXGA10,ZVG1#202310

86719BBRACKET, TELEPHONE NO.2

main86719-12020iMXGA10,ZVG1#202310

86725BATTERY, MOBILEPHONE

main86725-26010iZSG10,ZVG1#202108-202310

main86725-78020iMXGA10,ZVG1#202310

86741ATRANSCEIVER, TELEMATICS

main86741-11042iZSG10,ZVG1#; ZSG10,ZVG1#..G202108-202210

main86741-42220iMXGA10,ZVG1#202310-202402

main86741-42221iMXGA10,ZVG1#202403

main86741-52080iZSG10,ZVG1#202210-202310

86742ACOVER, TRANSCEIVER

main86742-26010iZSG10,ZVG1#202108-202310

9015350015

main90153-50015

9415180600

main94151-80600

10 parts on this diagram · 1 diagram in section
