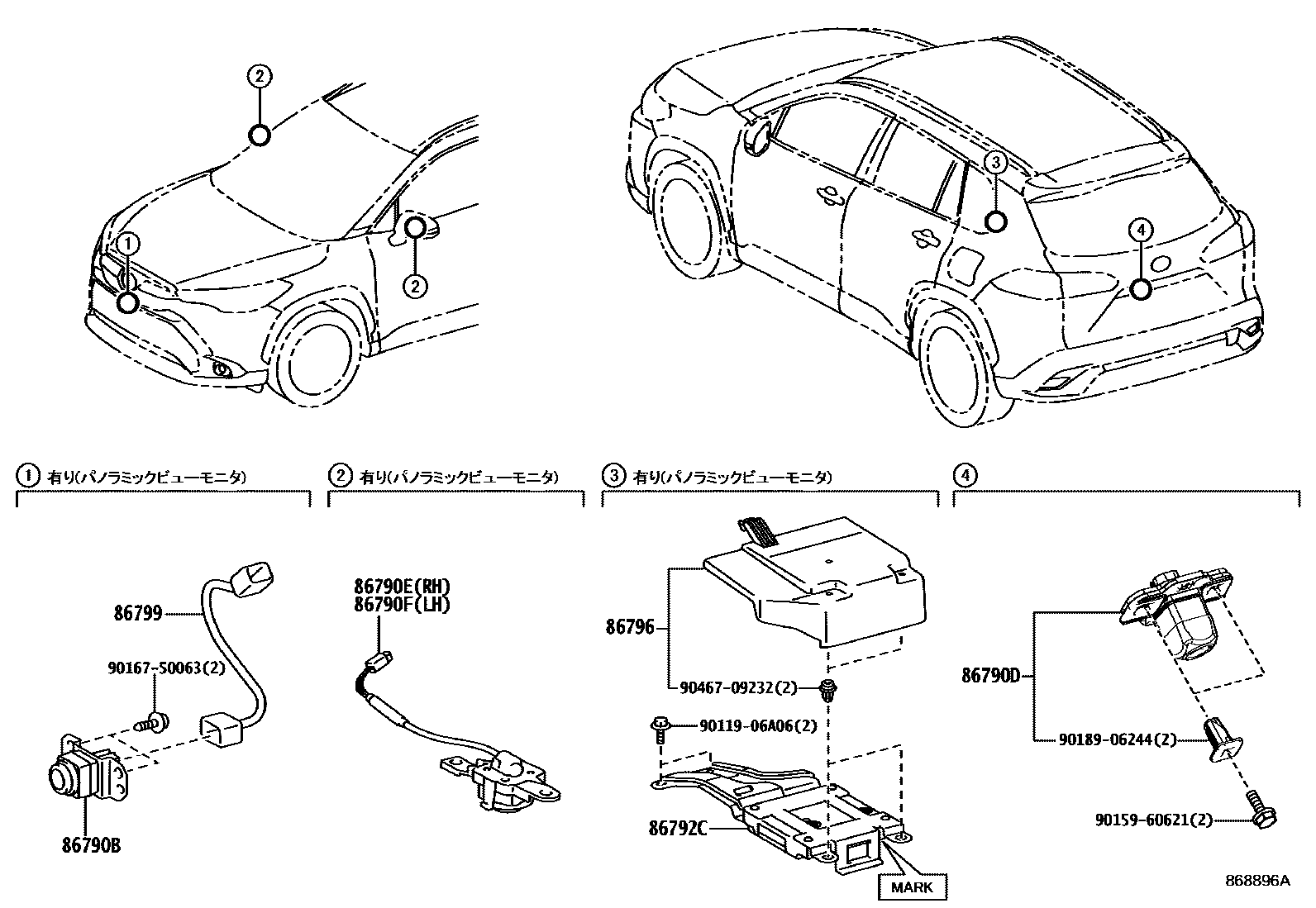

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

86790BCAMERA ASSY, TELEVISION, FR

main86790-16030iZSG10,ZVG1#..S,Z202108-202208

main86790-16031iZSG10,ZVG1#..S,Z202208-202310

main86790-16120iMXGA10,ZVG1#..S,Z202310

86790DCAMERA ASSY, TELEVISION, RR

main867B0-16020iZSG10,ZVG1#202108-202310

main867B0-16040iMXGA10,ZVG1#202310

main86790-16020iZSG10,ZVG1#..S,Z202108-202310

main86790-16060iMXGA10,ZVG1#..S,Z202310

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-16050iZSG10,ZVG1#..S,Z202108-202209

main86790-16051iZSG10,ZVG1#..S,Z202209-202310

main86790-28460iMXGA10,ZVG1#..S,Z202310

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-16040iZSG10,ZVG1#..S,Z202108-202209

main86790-16041iZSG10,ZVG1#..S,Z202209-202310

main86790-28450iMXGA10,ZVG1#..S,Z202310

86792CCOMPUTER, PARKING ASSIST

main86792-16020iZSG10,ZVG1#..S,Z202108-202208

main86792-16021iZSG10,ZVG1#..S,Z202208-202310

main86792-16140iMXGA10..Z202310

main86792-16150iZVG1#..S,Z202310

86796COVER, COMPUTER PARKING ASSIST

main86796-47010iZSG10,ZVG1#..S,Z202108-202310

86799WIRE, TELEVISION CAMERA

main86799-16020iZSG10,ZVG1#..S,Z202108-202310

main86799-16030iMXGA10,ZVG1#..S,Z202310

9011906A06

main90119-06A06

9015960621

main90159-60621

9016750063

main90167-50063

9018906244

main90189-06244

9046709232

main90467-09232

12 parts on this diagram · 2 diagrams in section
