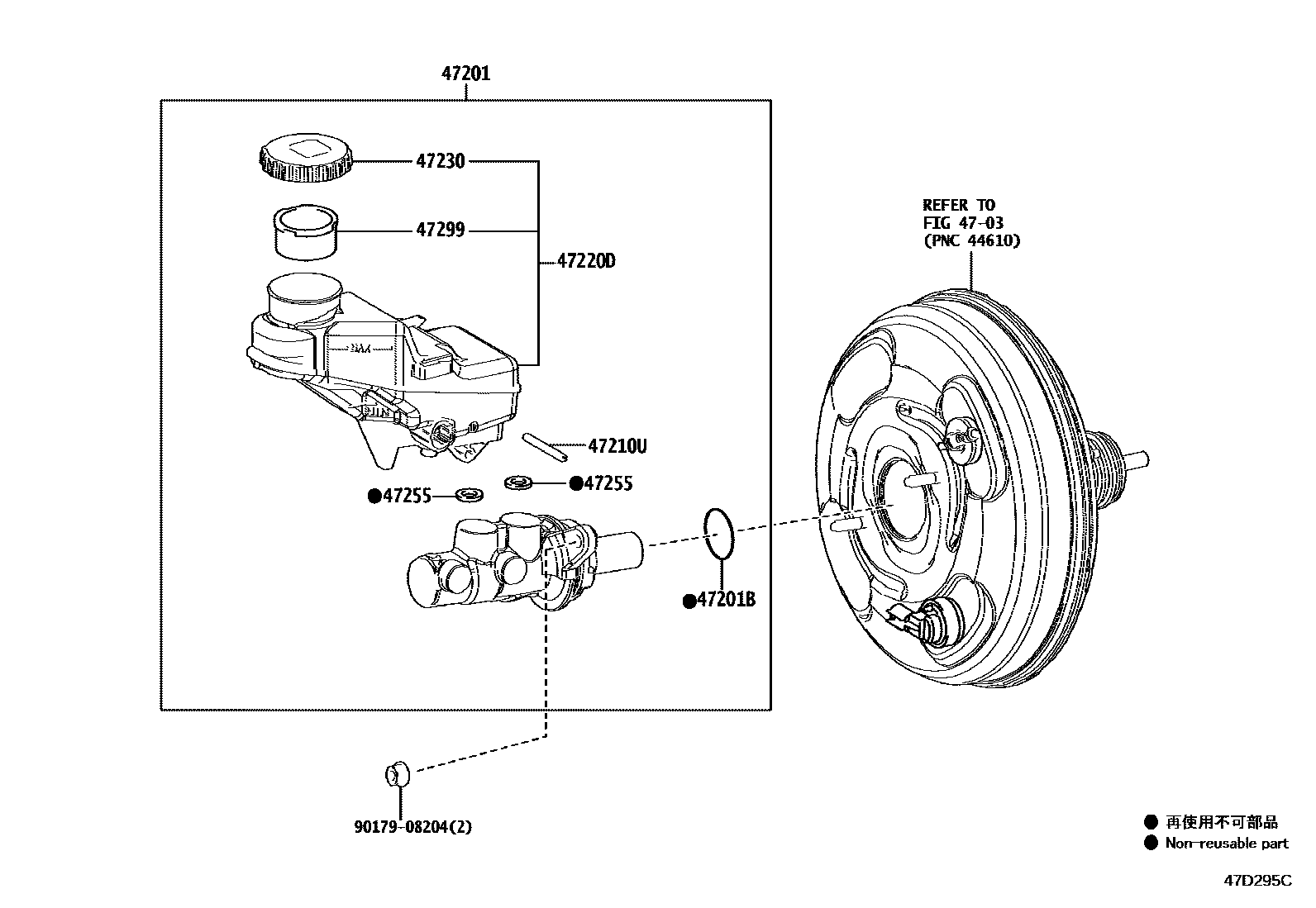

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-16530iMXGA10202310

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iMXGA10202310

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803iMXGA10202310

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-12350iMXGA10202310

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iMXGA10202310

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iMXGA10202310

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iMXGA10202310

9017908204

main90179-08204

9 parts on this diagram · 3 diagrams in section
