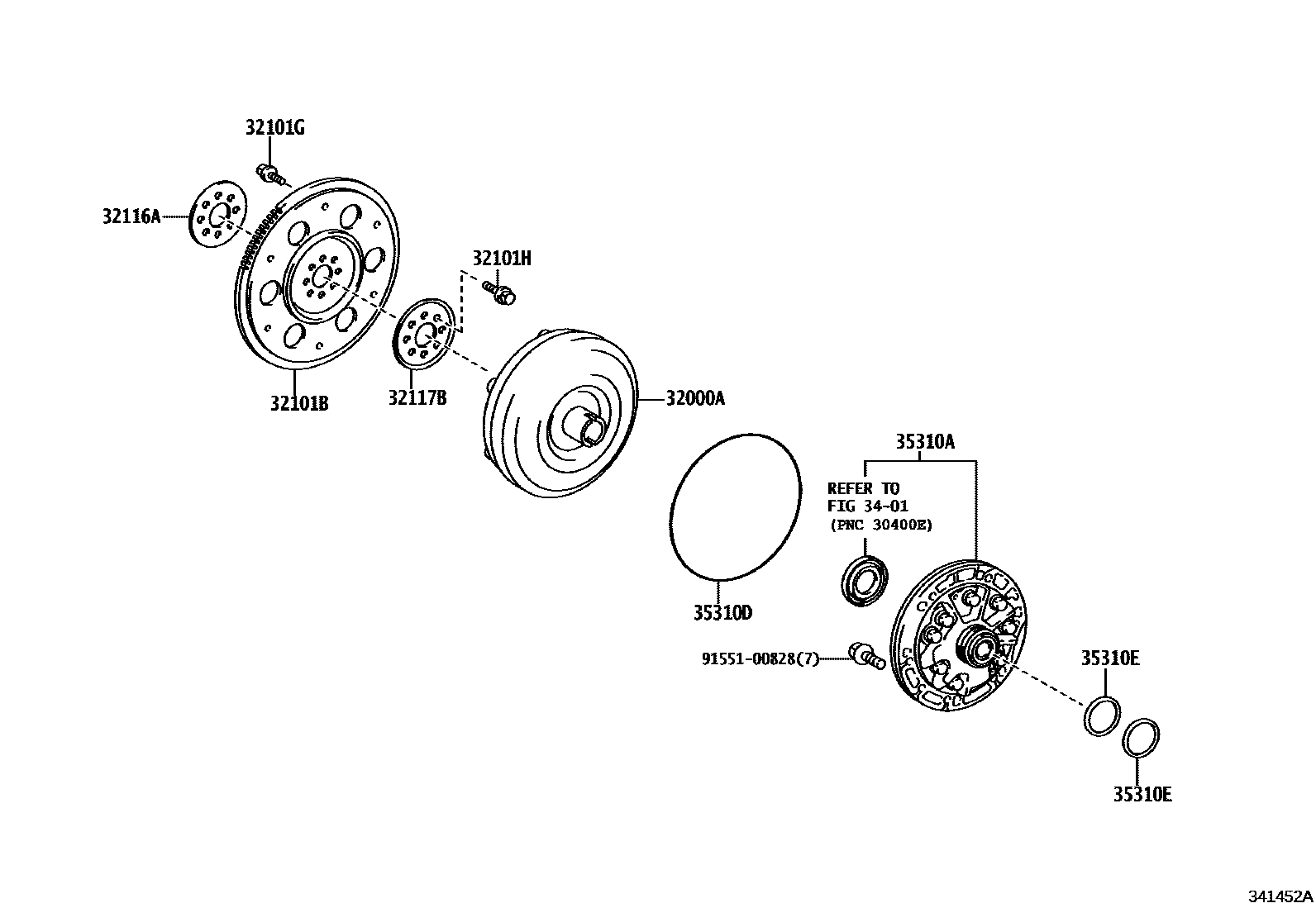

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K313 0002 1K121

32000ACONVERTER ASSY, TORQUE

main32000-12500iZSG10202108-202310

main32000-12520iMXGA10202310

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12100iZSG10202108-202310

main32101-12120iMXGA10202310

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZSG10202108-202310

main90109-09001iMXGA10202310

main90119-08498iZSG10202108-202310

main90119-09025iMXGA10202310

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZSG10202108-202310

main90105-12404iMXGA10202310

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZSG10202108-202310

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZSG10202108-202310

main32117-33010iMXGA10202310

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35310APUMP ASSY, FRONT OIL

main35310-12170iZSG10202108-202310

main35310-42010iMXGA10202310

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99202iZSG10202108-202310

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12031iZSG10202108-202310

9155100828

main91551-00828

11 parts on this diagram · 2 diagrams in section
