HEATING & AIR CONDITIONING - COOLER PIPING
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88474DRYER, COOLER
884A0CONDENSER ASSY, COOLER
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
88707PIPE SUB-ASSY, SUCTION
88707ERING, O, NO.2(FOR SUCTION TUBE)
88710TUBE ASSY, AIR CONDITIONER
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711JRING, O, NO.1(FOR DISCHARGE HOSE)
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718UCLAMP, NO.6(FOR COOLER REFRIGERANT PIPE)
88719ASENSOR, AIR CONDITIONER PRESSURE
88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)
88G16SRING, O, NO.3(FOR LIQUID TUBE)
9010506347
main90105-06347
9010506348
main90105-06348

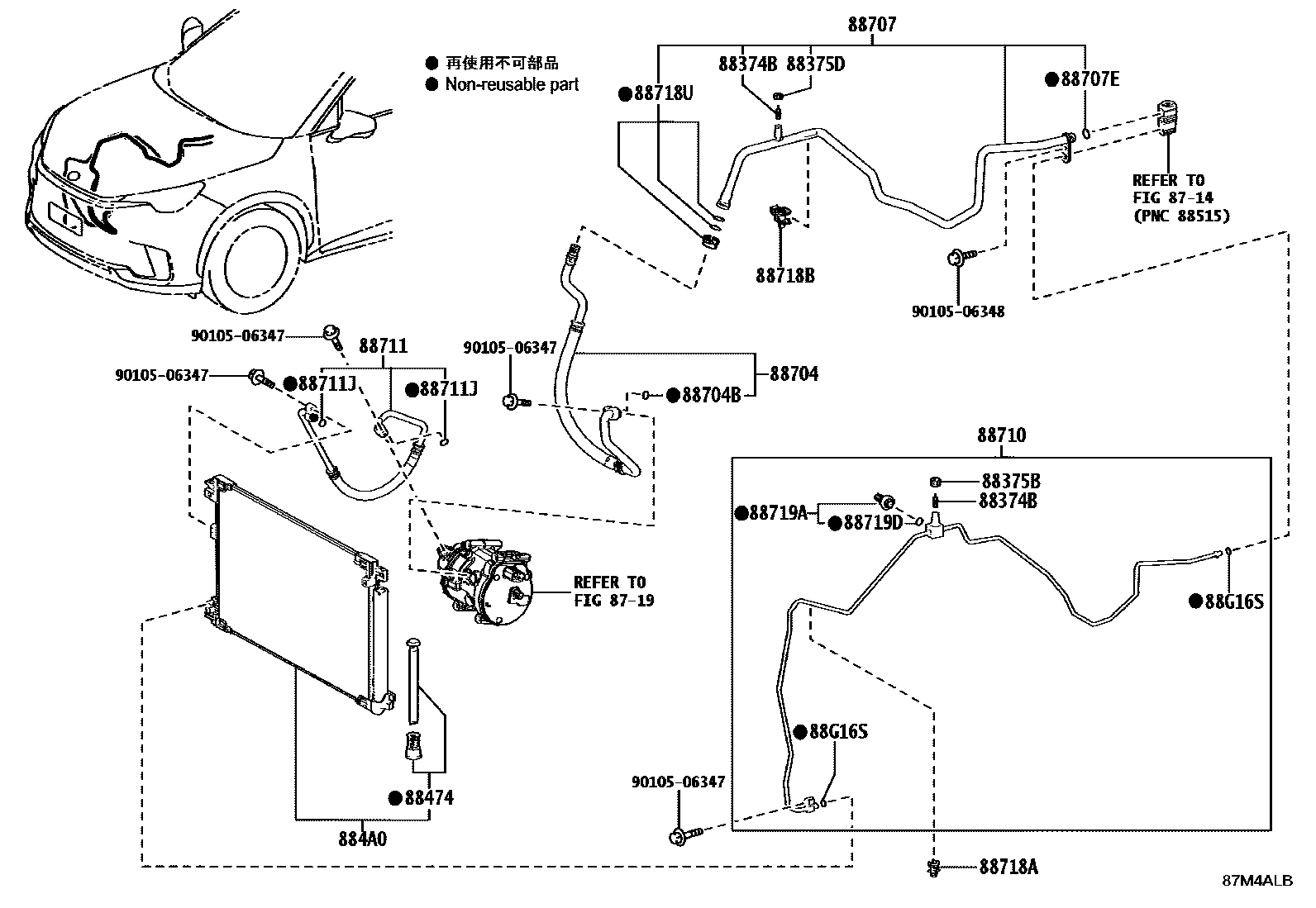

22 parts on this diagram · 1 diagram in section
