TELEPHONE & MAYDAY

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-52010iMAYH1#202312

86713WIRE, TELEPHONE COMPUTER

main86713-52020iMAYH1#202312

86719BRACKET, TELEPHONE

main86719-52120iMAYH1#202312

86725BATTERY, MOBILEPHONE

main86725-78020iMAYH1#202312

86741ATRANSCEIVER, TELEMATICS

main86741-42220iMAYH1#202312-202402

main86741-42221iMAYH1#202403

86742ACOVER, TRANSCEIVER

main86742-26010iMAYH1#202312

86862CBRACKET, NAVIGATION ANTENNA

main86862-42010iMAYH1#202312

86880BANTENNA ASSY, INSTRUMENT PANEL INTEGRATION

main86880-52030iMAYH1#202312

9015350015

main90153-50015

9015950327

main90159-50327

9167380616

main91673-80616

9356855014

main93568-55014

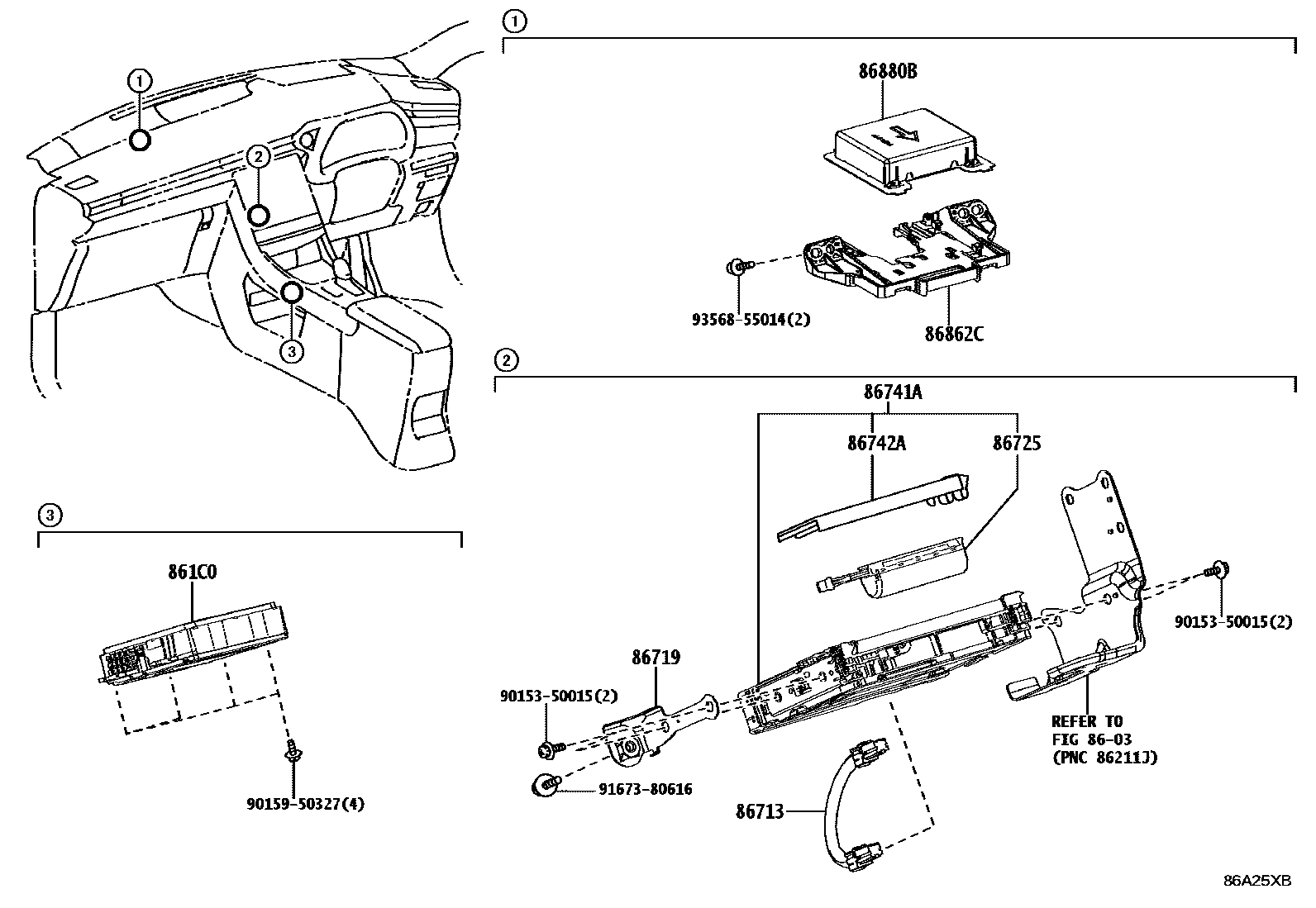

13 parts on this diagram · 1 diagram in section
