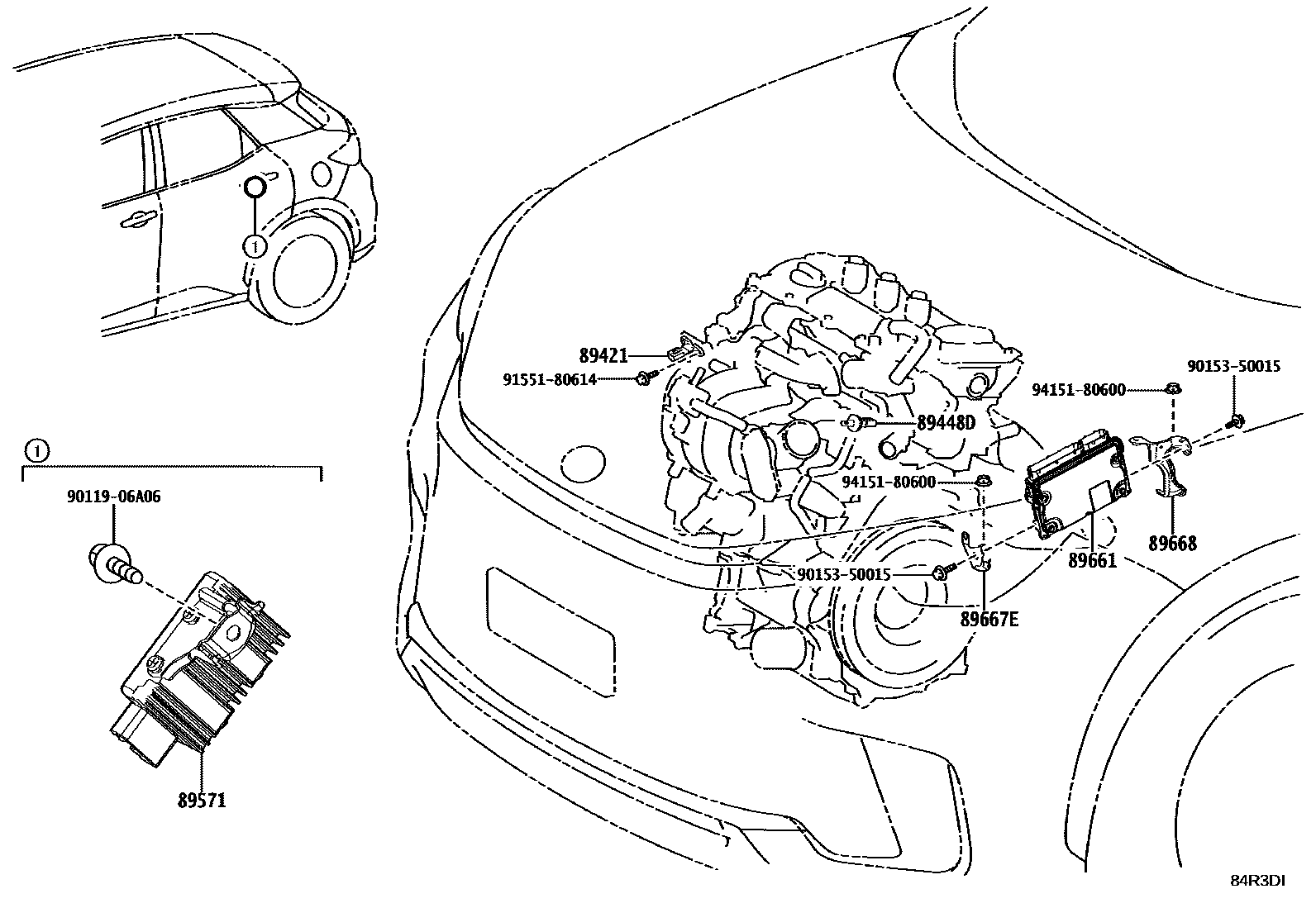

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iMAYH1#202312

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iMAYH1#202312

89571COMPUTER, FUEL PUMP CONTROL

main89570-52050iMAYH1#202312-202506

89661COMPUTER, ENGINE CONTROL

main89661-5CC30iMAYH1#202312-202506

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-K0020iMAYH1#202312

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52450iMAYH1#202312

9011906A06

main90119-06A06

9015350015

main90153-50015

9155180614

main91551-80614

9415180600

main94151-80600

10 parts on this diagram · 1 diagram in section
