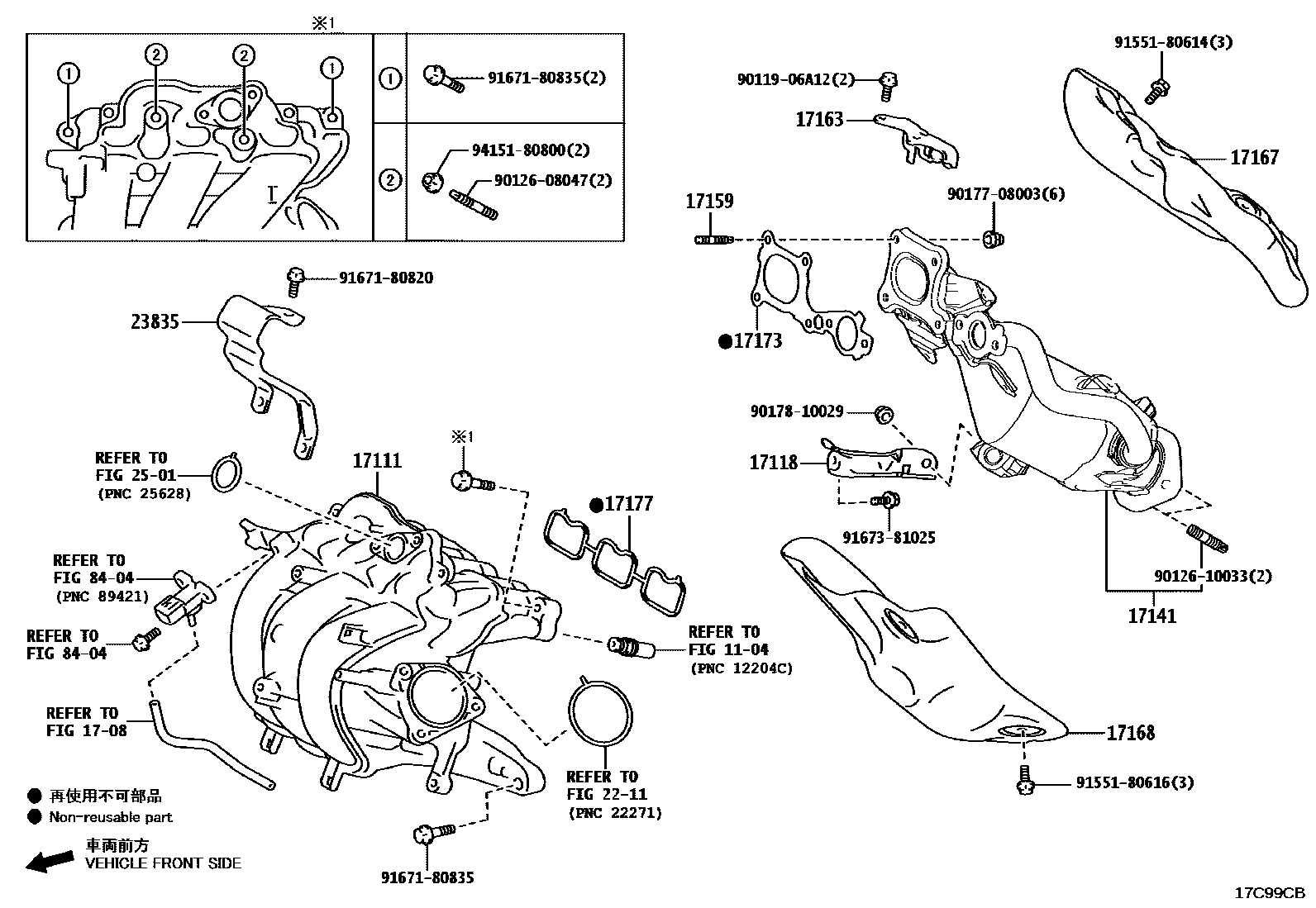

MANIFOLD

1104CYLINDER HEAD

→ Go to FIG 11-04

1708VACUUM PIPING

→ Go to FIG 17-08

17111MANIFOLD, INTAKE

main17101-15130iM15AFXE..MAYH1#202312

17118STAY, MANIFOLD

main17118-15090iM15AFXE..MAYH1#202312

17141MANIFOLD, EXHAUST

main17141-15210iM15AFXE..MAYH1#202312

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052×6iM15AFXE..MAYH1#202312

17163BRACKET, HEAT INSULATOR, NO.1

main17163-15010iM15AFXE..MAYH1#202312

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-15100iM15AFXE..MAYH1#202312

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-15040iM15AFXE..MAYH1#202312

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-15050iM15AFXE..MAYH1#202312

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-15040iM15AFXE..MAYH1#202312

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

23835GUARD, FUEL DELIVERY, NO.2

main23835-15010iM15AFXE..MAYH1#202312

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9011906A12

main90119-06A12

9012608047

main90126-08047

9012610033

main90126-10033

9017708003

main90177-08003

9017810029

main90178-10029

9155180614

main91551-80614

9155180616

main91551-80616

9167180820

main91671-80820

9167180835

main91671-80835

9167381025

main91673-81025

9415180800

main94151-80800

26 parts on this diagram · 1 diagram in section
