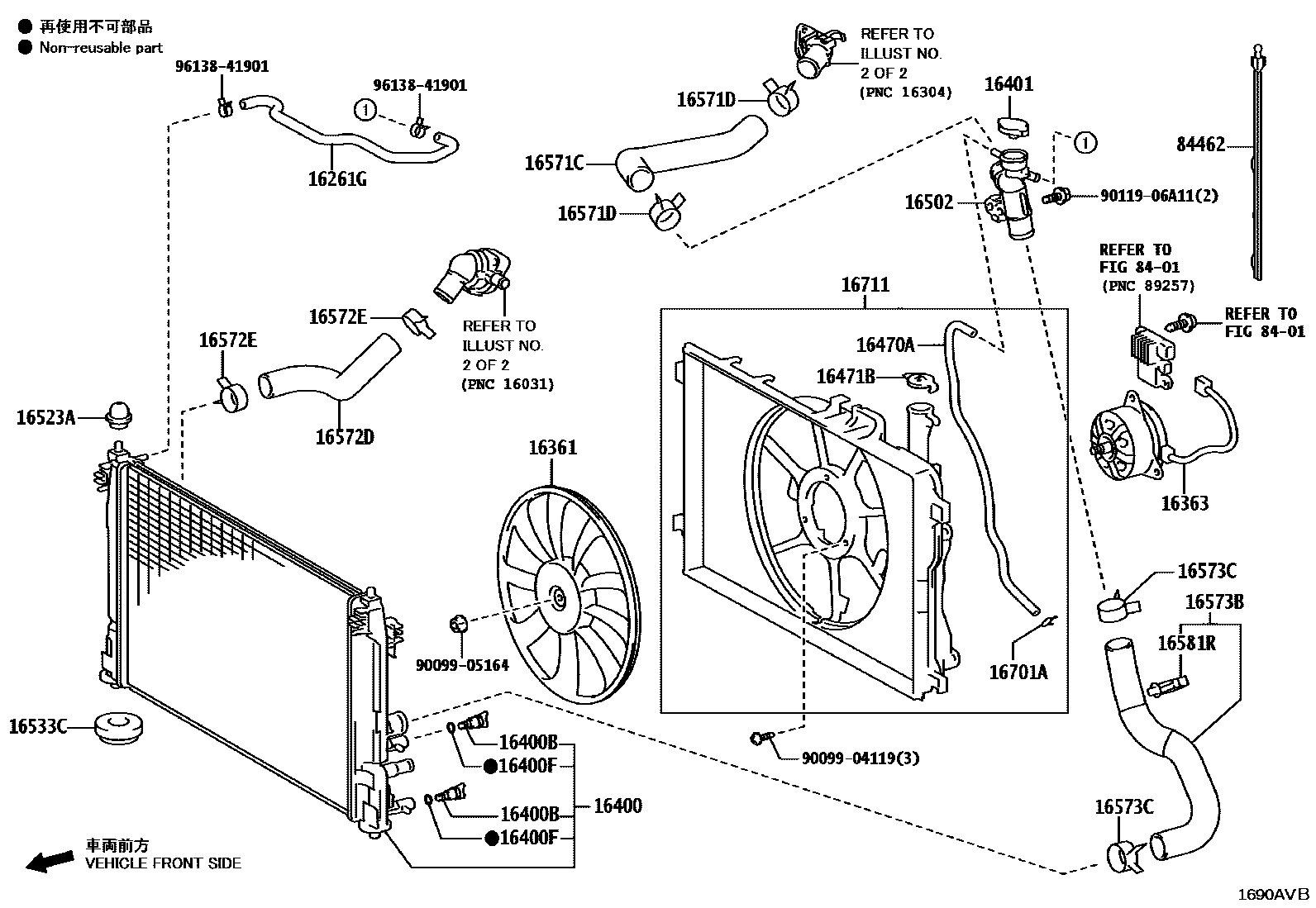

Toyota 105110 — RADIATOR & WATER OUTLET
16261GHOSE, WATER BY-PASS, NO.1
16361FAN
16363MOTOR, COOLING FAN
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16471BCAP, RESERVE TANK
16502FILLER SUB-ASSY, WATER
16523ACUSHION, RADIATOR SUPPORT
16533CGROMMET(FOR RADIATOR SUPPORT)
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16581RCLAMP, HOSE(FOR RADIATOR HOSE NO.3)
16701ACLIP(FOR FAN SHROUD)
16711SHROUD, FAN
8401SWITCH & RELAY & COMPUTER
84462FLOAT, LEVEL WARNING
9009904119
9009905164
9011906A11
9613841901
27 parts on this diagram · 2 diagrams in section
RADIATOR & WATER OUTLET for Toyota 105110
This section contains 56 genuine Toyota parts for the RADIATOR & WATER OUTLET system of the Toyota 105110. Key components include: WATER INLET SUB-ASSY, W/THERMOSTAT, HOUSING SUB-ASSY, WATER INLET W/WATER PUMP, HOSE, WATER BY-PASS, NO.1, PIPE, WATER BY-PASS, NO.2, HOSE, WATER BY-PASS, NO.4.
