CRANKSHAFT & PISTON

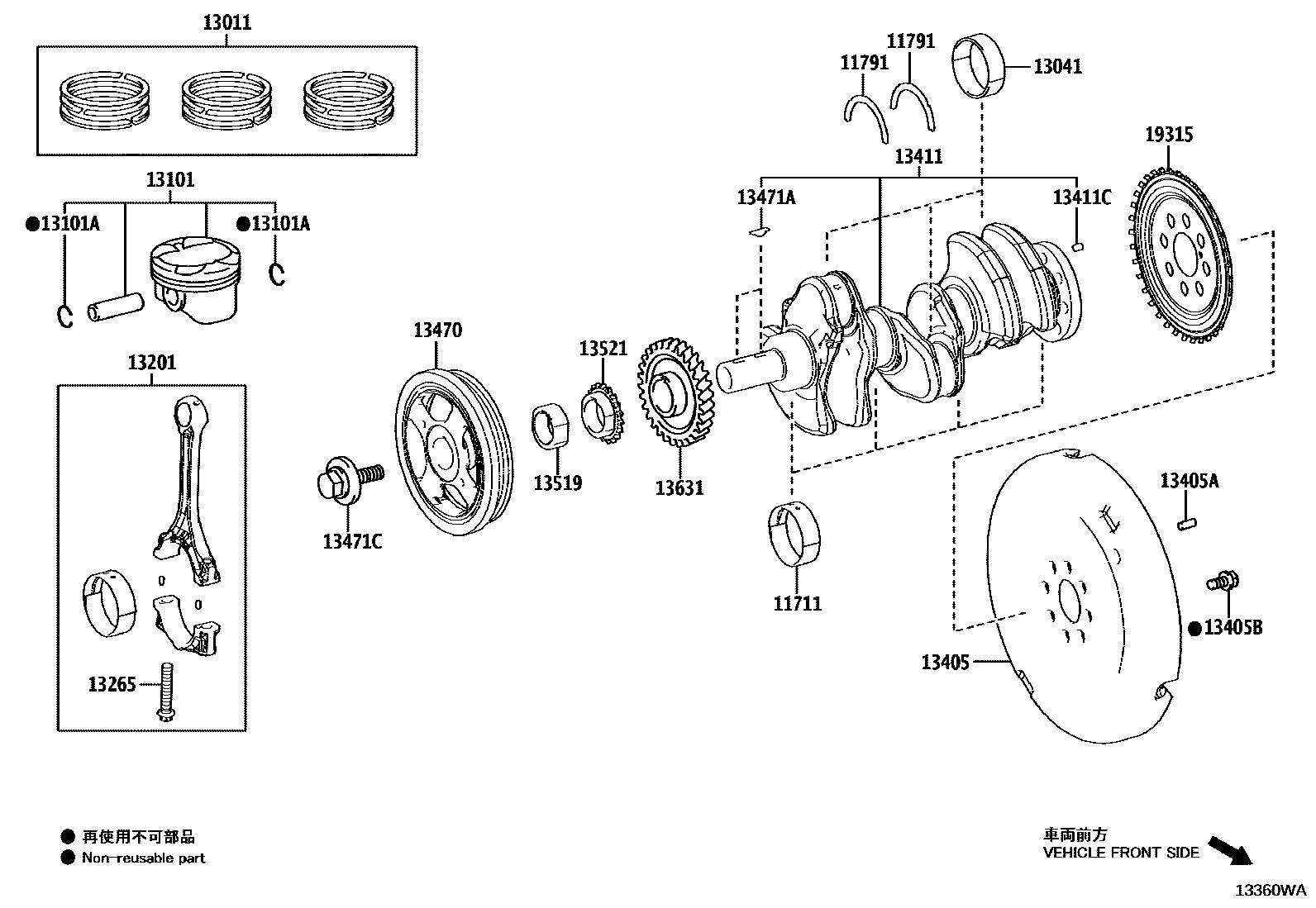

Parts diagram

11711BEARING, CRANKSHAFT

main11701-15061-01×4i202312

main11701-15061-02×4i202312

main11701-15061-03×4i202312

main11701-15061-04×4i202312

main11701-15061-05×4i202312

main11701-15061-06×4i202312

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-15030×2i202312

13011RING SET, PISTON

main13011-15150i202312

13041BEARING, CONNECTING ROD

main13041-24020-01×3i202312

main13041-24020-02×3i202312

main13041-24020-03×3i202312

13101PISTON SUB-ASSY, W/PIN

main13101-F2040×3i202312

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-19019×6i202312

13201ROD SUB-ASSY, CONNECTING

main13201-29835-A0×3i202312

main13201-29835-B0×3i202312

main13201-29835-C0×3i202312

13265BOLT, CONNECTING ROD

main13265-25020×6i202312

13405FLYWHEEL SUB-ASSY

main13451-15120i202312

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120×3i202312

13405BBOLT, FLYWHEEL SETTING

main90105-12404×8i202312

13411CRANKSHAFT

main13401-15010i202312

main13401-F3030i202312

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035i202312

main90250-C0025i202402

13470PULLEY ASSY, CRANKSHAFT

main13470-15140i202312-202502

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2i202312

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i202312

13519GEAR, OIL PUMP DRIVE

main13519-15010i202312

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-15030i202312

13631GEAR, BALANCESHAFT DRIVE

main13631-15010i202312

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-24010i202312

20 parts on this diagram · 1 diagram in section
