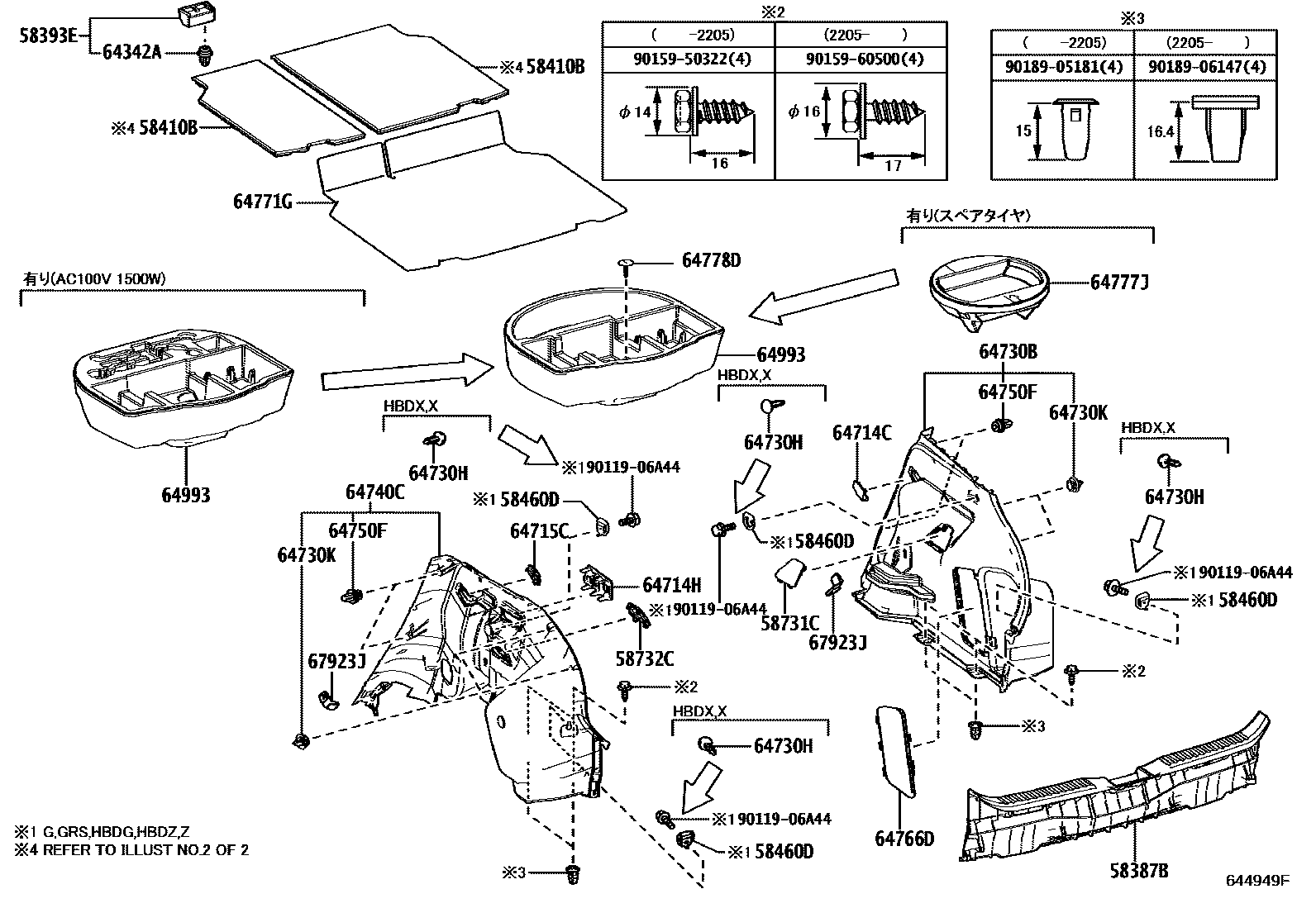

DECK BOARD & DECK TRIM COVER

0001 1 0002 1 0003 1

58387BPLATE, REAR FLOOR FINISH

main58387-52060-C0iMXPB1#,MXPJ1#..G,HBDG; MXPB1#,MXPJ1#..GRS,HBDX,X; MXPB1#,MXPJ1#..HBDZ,Z202008-202401

BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#,6#

58393ESUPPORT, DECK BOARD SET

main58393-52010-C0iMXPB10,MXPJ10..G,HBDG; MXPB10,MXPJ10..HBDZ,Z202008-202401

BLACK,TRIM2#,4#; BLACK,TRIM4#,6#

58410BBOARD ASSY, DECK

main58410-52150-B0iMXPB10,MXPJ10..GRS202208-202301

main58410-52151-B0iMXPB10,MXPJ10..G,HBDG; MXPB10,MXPJ10..GRS; MXPB10,MXPJ10..HBDZ,Z202301-202401

main58410-52160-B0iMXPB10,MXPJ10..GRS202208-202301

main58410-52161-B0iMXPB10,MXPJ10..G,HBDG; MXPB10,MXPJ10..GRS; MXPB10,MXPJ10..HBDZ,Z202301-202401

main58410-52190-B0iMXPB15,MXPJ15..G,HBDG; MXPB15,MXPJ15..HBDX,X; MXPB15,MXPJ15..HBDZ,Z202008-202401

DARK GRAY,TRIM2#; DARK GRAY,TRIM2#,4#; DARK GRAY,TRIM4#,6#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020×4iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z202008-202401

58731CCAP, REAR ABSORBER

main58731-K0010-C0iMXPB1#,MXPJ1#..G,HBDG; MXPB1#,MXPJ1#..GRS,HBDX,X; MXPB1#,MXPJ1#..HBDZ,Z202008-202401

BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#,6#

58732CCAP, REAR ABSORBER

main58732-K0010-C0iMXPB1#,MXPJ1#..G,HBDG; MXPB1#,MXPJ1#..GRS,HBDX,X; MXPB1#,MXPJ1#..HBDZ,Z202008-202401

BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#,6#

64342ACLIP

main71769-47020iMXPB10,MXPJ10..G,HBDG,HBDZ,Z202008-202103

main90467-10188iMXPB10,MXPJ10..G,GRS,HBDG,HBDZ,Z202104-202401

64714CCOVER, DECK SIDE TRIM, RH

main62566-K0010-C0iMXPB1#,MXPJ1#..G,HBDG; MXPB1#,MXPJ1#..GRS,HBDX,X; MXPB1#,MXPJ1#..HBDZ,Z202008-202401

BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#,6#

64714HCOVER, DECK SIDE TRIM, NO.1

main64714-42050-C0iMXPB1#,MXPJ1#..G,HBDG; MXPB1#,MXPJ1#..GRS,HBDX,X202008-202401

BLACK,TRIM2#; BLACK,TRIM4#,6#

main64714-42070-C0iMXPB1#,MXPJ1#..HBDZ,Z202401

BLACK,TRIM2#,4#

main64714-42060-C0iMXPJ1#..GRS,HBDG,HBDX,U; MXPJ1#..U202401

main64714-42080-C0iMXPJ1#..HBDZ202401

64715CCOVER, DECK SIDE TRIM, LH

main62567-K0010-C0iMXPB1#,MXPJ1#..G,HBDG; MXPB1#,MXPJ1#..GRS,HBDX,X; MXPB1#,MXPJ1#..HBDZ,Z202008-202401

BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#,6#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52600-C0iMXPB10,MXPJ10..G,HBDG; MXPB10,MXPJ10..GRS,HBDX,X; MXPB10,MXPJ10..HBDZ,Z202008-202401

BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#,6#

main64730-52660-C0iMXPB15,MXPJ15..G,HBDG; MXPB15,MXPJ15..HBDX,X; MXPB15,MXPJ15..HBDZ,Z202008-202401

BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#,6#

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main90467-05164-C7×4iMXPB1#,MXPJ1#..HBDX,X202008-202401

BLACK,TRIM2#

64730KCLIP(FOR DECK SIDE TRIM PANEL)

main90467-09240×4iMXPB1#,MXPJ1#202008-202401

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-52720-C0iMXPB10,MXPJ10..G,HBDG; MXPB10,MXPJ10..GRS,HBDX,X; MXPB10,MXPJ10..HBDZ,Z202008-202401

BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#,6#

main64740-52740-C0iMXPB15,MXPJ15..G,HBDG,HBDX,U,X; MXPB15,MXPJ15..HBDZ,Z202401

BLACK,TRIM2#; BLACK,TRIM2#,4#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161×4iMXPB1#,MXPJ1#202008-202401

64766DCOVER, DECK SIDE TRIM JACK

main64766-52050-C0iMXPB1#,MXPJ1#..G,HBDG; MXPB1#,MXPJ1#..GRS,HBDX,X; MXPB1#,MXPJ1#..HBDZ,Z202008-202401

BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#,6#

64771GCOVER, SPARE WHEEL

main64771-52300-B0iMXPB10,MXPJ10..G,HBDG; MXPB10,MXPJ10..GRS,HBDX,X; MXPB10,MXPJ10..HBDZ,Z202008-202401

DARK GRAY,TRIM2#; DARK GRAY,TRIM2#,4#; DARK GRAY,TRIM4#,6#

64777JCUSHION, SPARE WHEEL

main64777-10020iMXPB10,MXPJ10..G,GRS,HBDG,HBDX,HBDZ,X,Z202401-202503

64778DPROTECTOR, SPARE WHEEL

main64778-52160iMXPB1#,MXPJ1#; MXPB15202008-202401

64993BOX, DECK FLOOR, REAR

main64993-52380iMXPJ10..GRS,HBDG,HBDX,HBDZ; MXPJ10..U202401

main64993-K0010iMXPB10,MXPJ10202008-202401

main64993-K0040iMXPJ15202401

main64993-K0020iMXPJ10..GRS,HBDG,HBDZ; MXPJ10..HBDX202008-202303

main64993-K0030iMXPB15202008-202401

67923JCLAMP(FOR DECK TRIM SIDE PANEL)

main67923-52240×2iMXPB1#,MXPJ1#202401

9011906A44

main90119-06A44

9015950322

main90159-50322

9015960500

main90159-60500

9018905181

main90189-05181

9018906147

main90189-06147

26 parts on this diagram · 3 diagrams in section
