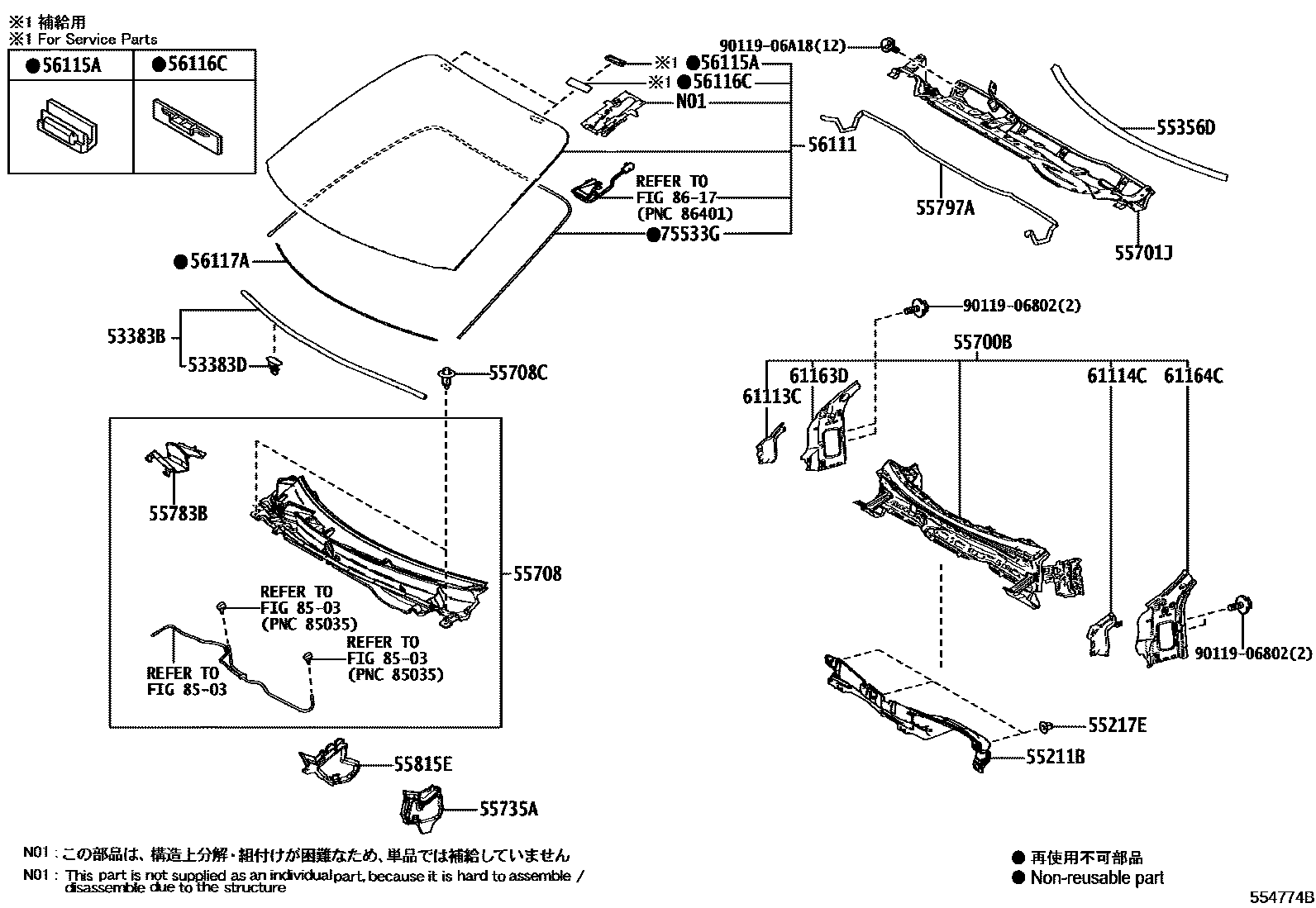

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-52190iMXPB1#,MXPJ1#202401

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×7iMXPB1#,MXPJ1#202401

55211BSILENCER, FRONT PANEL

main55211-K0050iMXPB1#,MXPJ1#202008-202401

55217ERETAINER, DASH PANEL SILENCER

main55217-51010×3iMXPB1#,MXPJ1#202401

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-K2010iMXPB1#,MXPJ1#202008-202401

55700BCOWL ASSY

main55700-52440iMXPB1#,MXPJ1#202401

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-52420iMXPB1#,MXPJ1#202008-202010

main55701-52470iMXPB1#,MXPJ1#202401

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52441iMXPB1#,MXPJ1#202208-202401

main55708-52450supersedes 55708-52440iMXPB1#,MXPJ1#202008-202207

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C7×2iMXPB1#,MXPJ1#202401

BLACK

55735APLATE, WATER GUARD, LH

main55735-52160iMXPB1#,MXPJ1#202008-202401

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-52380iMXPB1#,MXPJ1#202008-202401

55797ASEAL, COWL WATER EXTRACT

main55797-K0010iMXPB1#,MXPJ1#202008-202401

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-52090iMXPB1#,MXPJ1#202401

56111GLASS, WINDSHIELD

main56101-52C40iMXPB1#,MXPJ1#..HBDX,X202008-202208

main56101-52F10supersedes 56101-52F00iMXPB1#,MXPJ1#..HBDX,X202008-202401

main56101-52F20iMXPB1#,MXPJ1#..HBDZ,Z202008-202401

main56101-52F30iMXPB1#,MXPJ1#..HBDZ,Z202008-202401

main56101-52F40iMXPB1#,MXPJ1#..HBDX,X202008-202208

main56101-52F60supersedes 56101-5C050iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z202008-202401

main56101-52T50iMXPB1#,MXPJ1#..HBDX,X202208-202401

main56101-52T60iMXPB1#,MXPJ1#..HBDX,X202208-202401

main56101-52T70iMXPB1#,MXPJ1#..HBDZ,Z202208-202401

main56101-52T80iMXPB1#,MXPJ1#..HBDZ,Z202208-202401

main56101-52T90iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z202208-202401

main56101-52U00iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z202208-202401

main56101-52Z60supersedes 56101-52Z50iMXPB1#,MXPJ1#..HBDX,U,X202401-202503

main56101-52Z80supersedes 56101-52F00iMXPB1#,MXPJ1#..HBDX,X202501-202503

main56101-5C010supersedes 56101-52Z50iMXPB1#,MXPJ1#..HBDX,U,X202401

main56101-5C030supersedes 56101-52F00iMXPB1#,MXPJ1#..HBDX,X202501-202503

main56101-5C070iMXPB1#,MXPJ1#..HBDZ,Z202501

main56101-5C090supersedes 56101-5C050iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z202501

main56101-5C100iMXPB1#,MXPJ1#..HBDZ,Z202401-202503

main56101-5C110iMXPB1#,MXPJ1#..HBDZ,Z202401-202503

main56101-5C130supersedes 56101-5C050iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z202401

main56101-5C150iMXPB1#,MXPJ1#..HBDZ,Z202501

main56101-5C170supersedes 56101-5C050iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z202501

main56101-5C190iMXPB1#,MXPJ1#..HBDZ,Z202401

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iMXPB1#,MXPJ1#202008-202401

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iMXPB1#,MXPJ1#202008-202401

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50140iMXPB1#,MXPJ1#; MXPB1#,MXPJ1#..HBDZ,Z202208-202401

61113CPANEL, SIDE, INNER RH

main61113-K0010iMXPB1#,MXPJ1#202008-202401

61114CPANEL, SIDE, INNER LH

main61114-K0010iMXPB1#,MXPJ1#202008-202401

61163DPILLAR, FRONT BODY, LOWER INNER RH

main61163-52050iMXPB1#,MXPJ1#202008-202401

61164CPILLAR, FRONT BODY, LOWER INNER LH

main61164-52060iMXPB1#,MXPJ1#202008-202401

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-52320iMXPB1#,MXPJ1#202008-202401

8503WINDSHIELD WASHER

→ Go to FIG 85-03

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

9011906802

main90119-06802

9011906A18

main90119-06A18

26 parts on this diagram · 1 diagram in section
