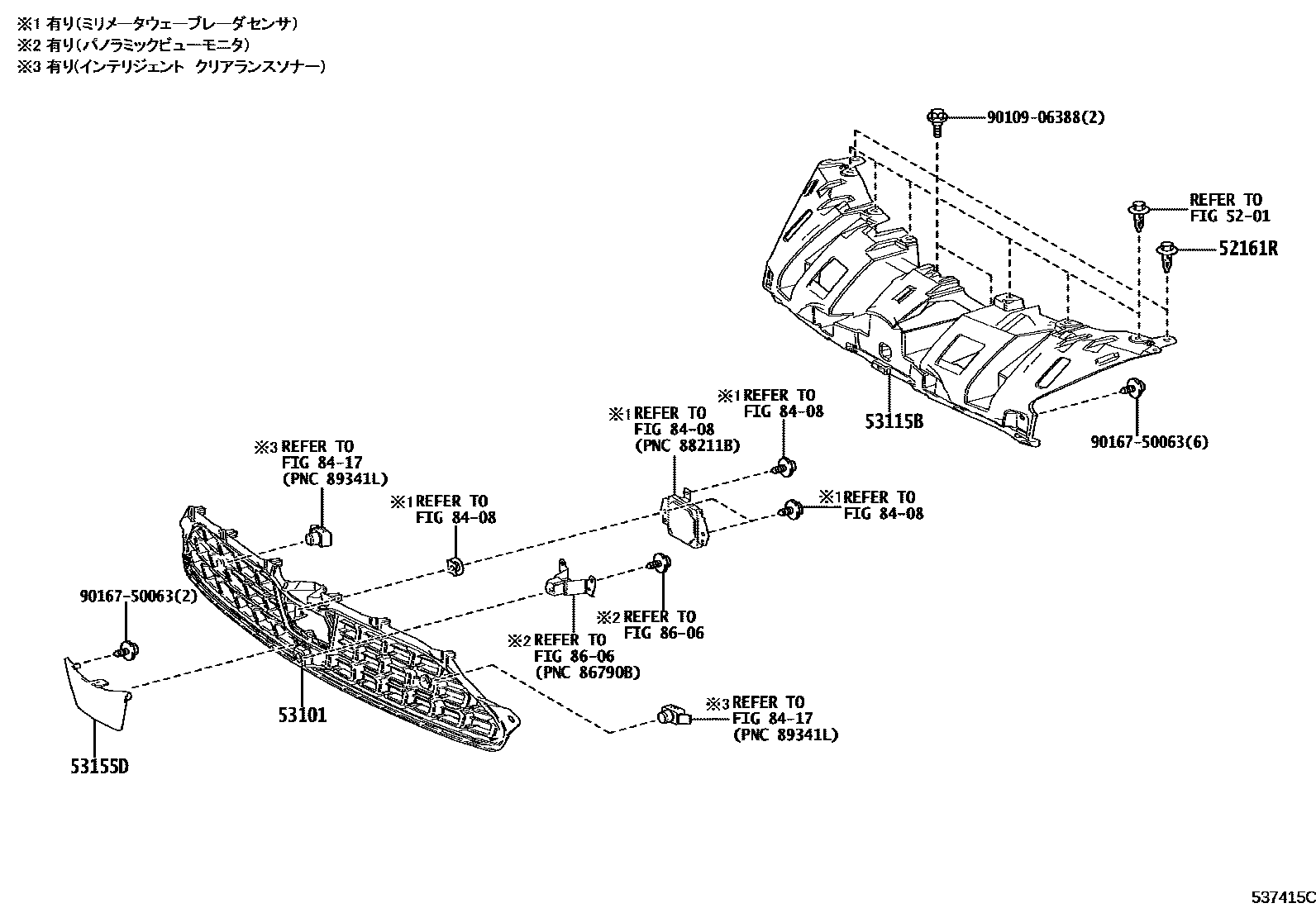

RADIATOR GRILLE

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52161RPIECE, FRONT BUMPER

main52161-16010×2iMXPB1#,MXPJ1#202008-202401

53101GRILLE SUB-ASSY, RADIATOR

main53101-52800iMXPB1#,MXPJ1#..G,HBDG,HBDX,X202008-202401

main53101-52E70iMXPB1#,MXPJ1#..G,HBDG,HBDX,U,X202401

main53101-52790iMXPB1#,MXPJ1#..HBDX,X202008-202208

main53101-52840iMXPB1#,MXPJ1#..HBDX,X202008-202208

main53101-52860iMXPJ1#..HBDG202008-202401

main53101-52880supersedes 53101-52F10iMXPB1#,MXPJ1#..HBDZ,Z202008-202401

main53101-52890iMXPJ1#..HBDZ202008-202401

main53101-52D50supersedes 53101-52D40iMXPB10,MXPJ10..GRS202208-202212

main53101-52D51supersedes 53101-52F60iMXPB10,MXPJ10..GRS202301-202401

main53101-52D80iMXPJ10..GRS202208-202212

main53101-52D81iMXPJ10..GRS202301-202401

main53101-52E90iMXPJ1#..U202401

main53101-52F30supersedes 53101-52F10iMXPB1#,MXPJ1#..HBDZ,Z; MXPJ1#..HBDZ202401-202503

53115BBRACKET, RADIATOR GRILLE

main53115-52040iMXPB1#,MXPJ1#202008-202401

53155DSEAL, RADIATOR GRILLE, NO.1

main53155-52060iMXPB1#,MXPJ1#202008-202212

main53155-52061iMXPB1#,MXPJ1#202301-202401

main53155-52040iMXPB1#,MXPJ1#..HBDX,X202008-202208

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

9010906388

main90109-06388

9016750063

main90167-50063

10 parts on this diagram · 2 diagrams in section
