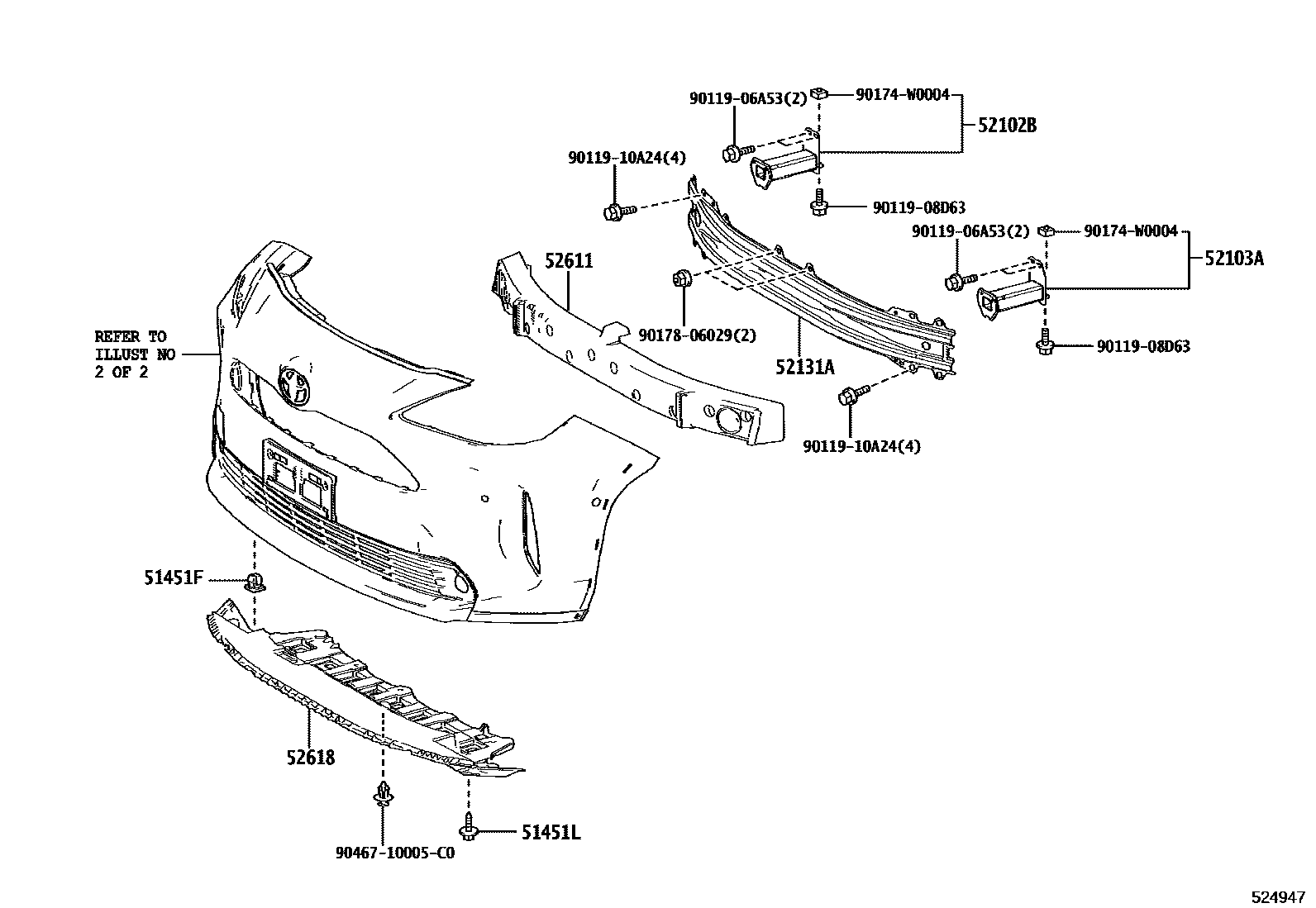

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1�������������

51451FGROMMET, NO.1

main90189-06237×4iMXPB1#,MXPJ1#202008-202401

51451LBOLT, NO.1

main90119-06A13×5iMXPB1#,MXPJ1#202401

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-K0020iMXPB1#,MXPJ1#202401

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-K0020iMXPB1#,MXPJ1#202401

52131AREINFORCEMENT, FRONT BUMPER

main52131-52360iMXPB1#,MXPJ1#202401

main52131-K0011iMXPB1#,MXPJ1#202008-202401

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52380iMXPB1#,MXPJ1#202008-202401

52618ABSORBER, FRONT BUMPER, LOWER

main52618-52150iMXPB1#,MXPJ1#202008-202401

9011906A53

main90119-06A53

9011908D63

main90119-08D63

9011910A24

main90119-10A24

90174W0004

main90174-W0004

9017806029

main90178-06029

9046710005C0

main90467-10005C0

13 parts on this diagram · 3 diagrams in section
