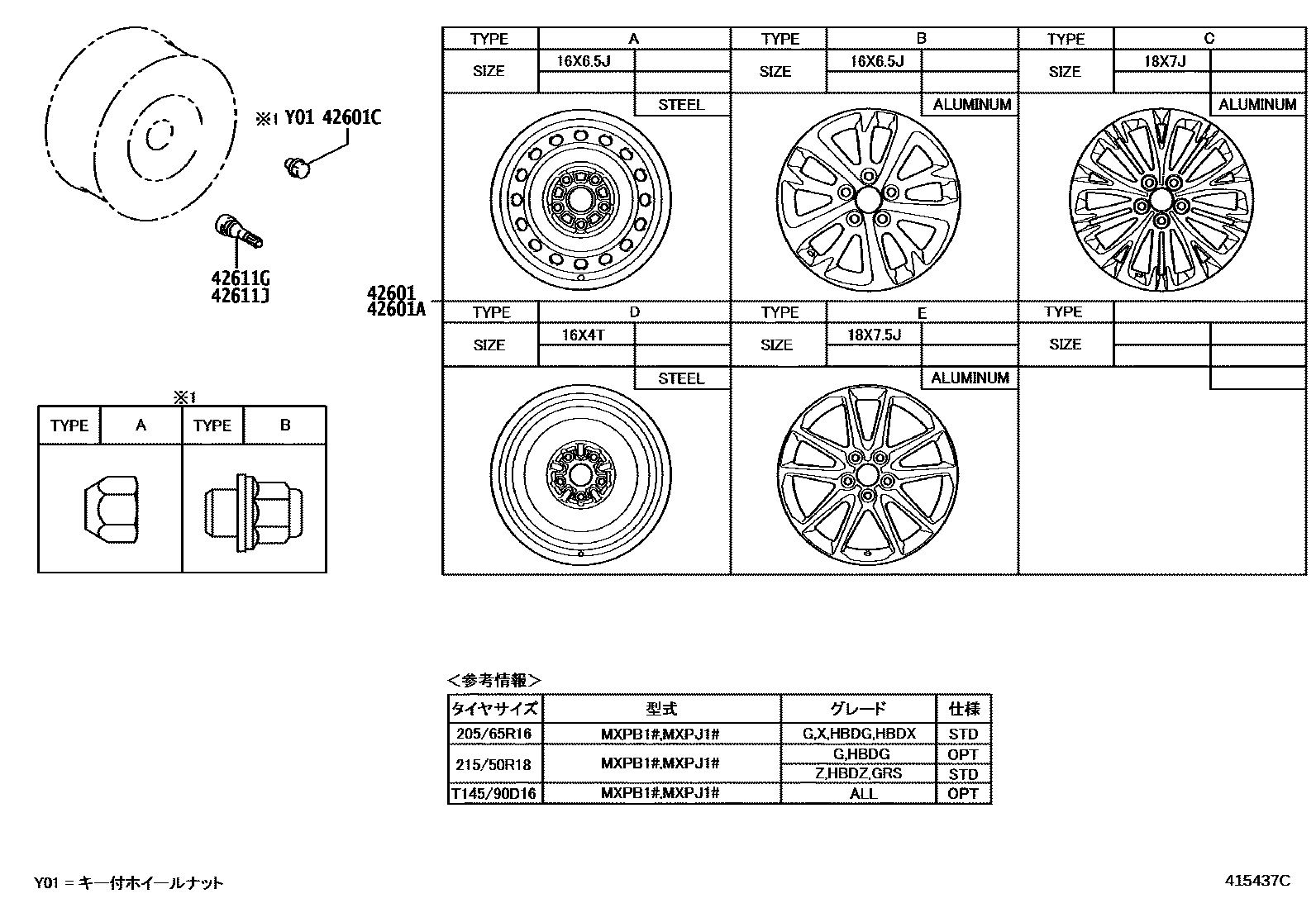

DISC WHEEL & WHEEL CAP

0001 1��������� 0002 1������������� & ��������� 0003 1���������

42601WHEEL, DISC

main42611-12A10iMXPB1#,MXPJ1#..HBDX,X202008-202401

main42611-52B80iMXPB1#,MXPJ1#..G,HBDG202008-202401

main42611-52B90iMXPB1#,MXPJ1#..G,HBDG202008-202401

main42611-52B90iMXPB1#,MXPJ1#..HBDZ,Z202008-202401

main42611-52D80iMXPB10,MXPJ10..GRS202208-202401

main42611-52E60iMXPB1#,MXPJ1#..HBDZ,Z202401

main42611-52E60iMXPB1#,MXPJ1#..HBDZ,Z202401

main42611-52E60iMXPB1#,MXPJ1#..HBDZ,Z202401

42601AWHEEL, DISC (FOR SPARE)

42601CNUT, HUB (FOR AXLE)

main90942-01007iMXPB1#,MXPJ1#..HBDX,X202008-202401

main90942-01033iMXPJ1#..U202008-202401

main90942-01033iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z202401

main90942-01033iMXPB1#,MXPJ1#..G,GRS,HBDG,HBDZ,Z202401

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iMXPB1#,MXPJ1#202008-202401

main90942-05009iMXPB1#,MXPJ1#202401

42611JVALVE (FOR TUBELESS TIRE SPARE)

5 parts on this diagram · 3 diagrams in section
