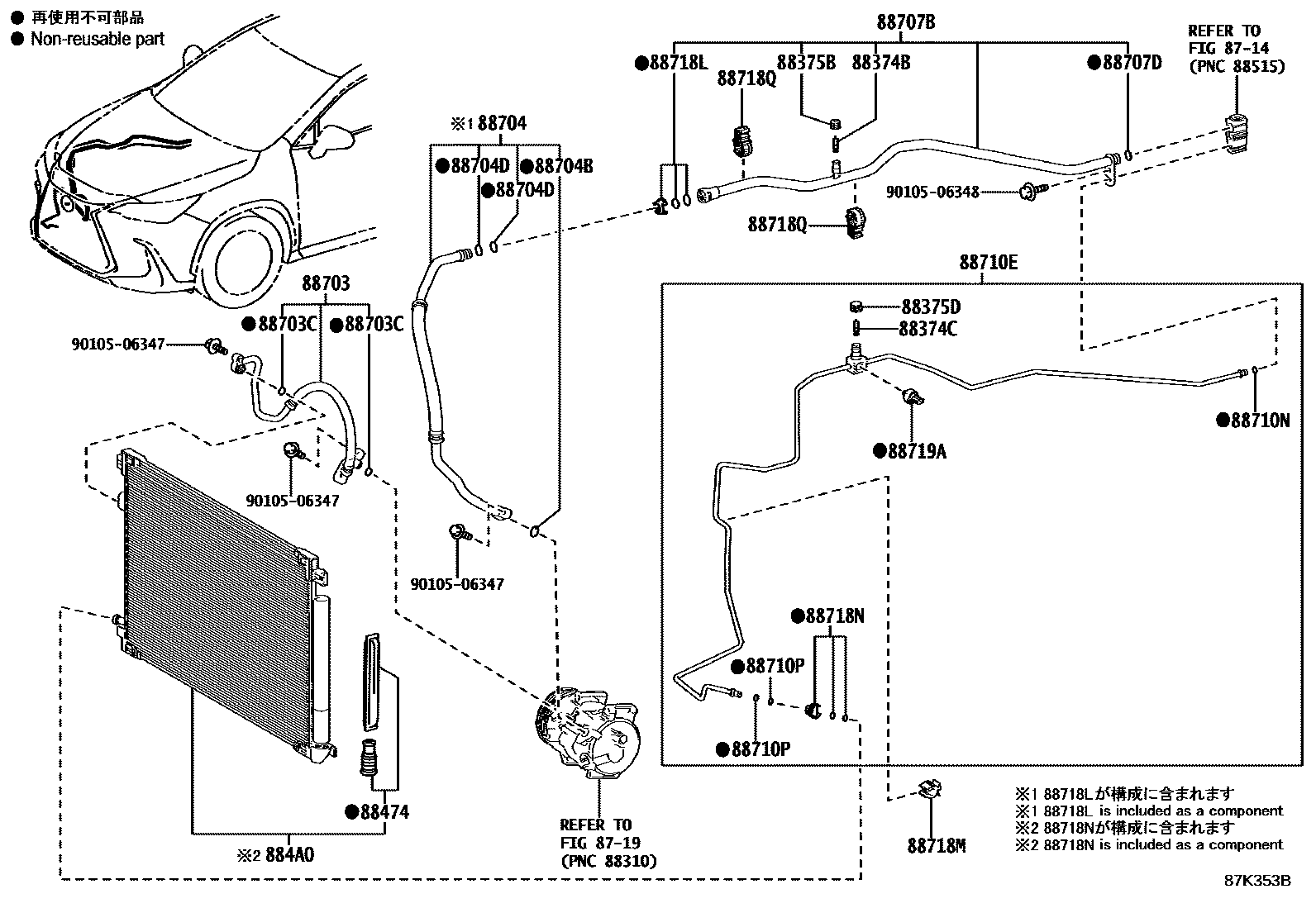

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iAAZA2#202403-202506

88374CVALVE, SERVICE, NO.2

main88374-30010iAAZA2#,AAZH20,25,TAZA25202111-202403

main88374-74010iAAZH26202111-202403

88375BCAP, SERVICE VALVE, NO.1

main88375-30310iAAZA2#,AAZH20,25,TAZA25202111-202403

main88375-30320iAAZH26202403

88375DCAP, SERVICE VALVE, NO.2

main88375-30310iAAZH26202111-202403

main88375-30320iAAZH20,25,TAZA25202403

88474DRYER, COOLER

main88474-12020iAAZH20,25,TAZA25202403

884A0CONDENSER ASSY, COOLER

main884A0-33050iAAZA2#202403-202506

main884A0-33060iAAZH20,25202111-202403

main884A0-78010iAAZH20,25202403

main884A0-78020iAAZH26202403

88703HOSE SUB-ASSY, DISCHARGE

main88703-78050iAAZH26202403

main88711-42050iAAZA2#202111-202403

main88711-78010iTAZA25202403

main88711-78020iAAZH20,25202403

main88711-78040iAAZH20,25202111-202403

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120×2iAAZA2#202403-202506

88704HOSE SUB-ASSY, SUCTION

main88704-42730iAAZA2#202403-202506

main88704-42750iAAZH26202403

main88704-42840iAAZH20,25202111-202403

main88704-78050iAAZH20,25202403

main88704-78090iTAZA25202403

88704BRING, O(FOR SUCTION HOSE)

main90099-14121iAAZA2#202403-202506

main90099-14157×2iAAZH26202403

88704DRING, O, NO.2 (FOR SUCTION HOSE)

main90099-14157×2iAAZA2#202403-202506

88707BTUBE SUB-ASSY, SUCTION, B

main88707-42210iAAZA2#202403-202506

main88707-42230iAAZH20,25202111-202403

main88707-78080iTAZA25202403

88707DRING, O(FOR SUCTION TUBE)

main90099-14121iTAZA25202403

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-42180iAAZA2#202111-202403

main88710-78100iTAZA25202111-202403

main88710-78180iAAZH20,25202111-202403

main88710-78210iAAZH20,25202403

88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14119iAAZH20,25; TAZA25202403

main90099-14157×2iAAZH26202403

88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90099-14158×2iAAZA2#202403-202506

88718LCLAMP, PIPING

main88718-42110iAAZH26202111-202403

main88718-52280iAAZA2#,AAZH20,25,TAZA25202111-202403

88718MCLAMP, PIPING

main88718-2F110iAAZA2#202403-202506

88718NCLAMP, PIPING

main88718-1E150iAAZH20,25,TAZA25202403

main88718-42170×2iAAZH26202403

88718QCLAMP, PIPING

main88718-2J230×2iAAZH26202403

main88718-33490×2iAAZH20,25,TAZA25202403

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iAAZH2#,TAZA25202403

9010506347

main90105-06347

9010506348

main90105-06348

25 parts on this diagram · 7 diagrams in section
