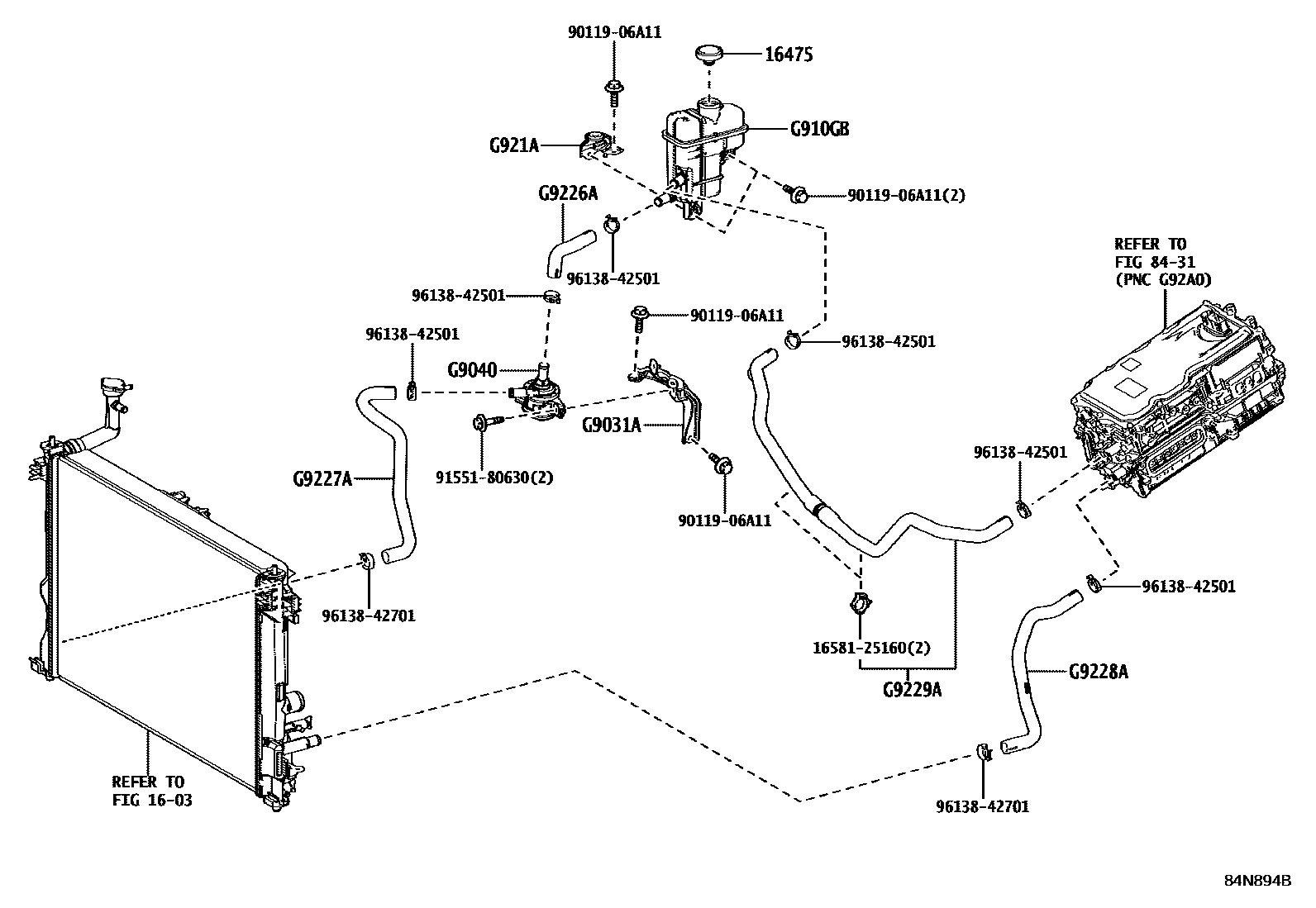

INVERTER COOLING

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AAZH2#202403

8431HEV INVERTER

→ Go to FIG 84-31

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG914142010iAAZH20,25202403

mainG914178010iAAZH20,25202111-202403

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904042020iAAZH2#202111-202302

mainG904048050iAAZH26202403

mainG904048060iAAZH20,25202403

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G42010iAAZH2#202403

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H242010iAAZH2#202111-202403

G9226AHOSE, INVERTER COOLING, NO.2

mainG922642010iAAZH20,25202403

mainG922642020iAAZH26202403

G9227AHOSE, INVERTER COOLING, NO.3

mainG922742010iAAZH20,25202403

mainG922742020iAAZH26202403

mainG922778010iAAZH20,25202111-202403

G9228AHOSE, INVERTER COOLING, NO.4

mainG922842040iAAZH2#202403

mainG922878050iAAZH20,25202111-202403

G9229AHOSE, INVERTER COOLING, NO.5

mainG922942020iAAZH20,25202403

mainG922942030iAAZH26202403

mainG922978020iAAZH20,25202111-202403

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160

9011906A11

main90119-06A11

9155180630

main91551-80630

9613842501

main96138-42501

9613842701

main96138-42701

16 parts on this diagram · 3 diagrams in section
