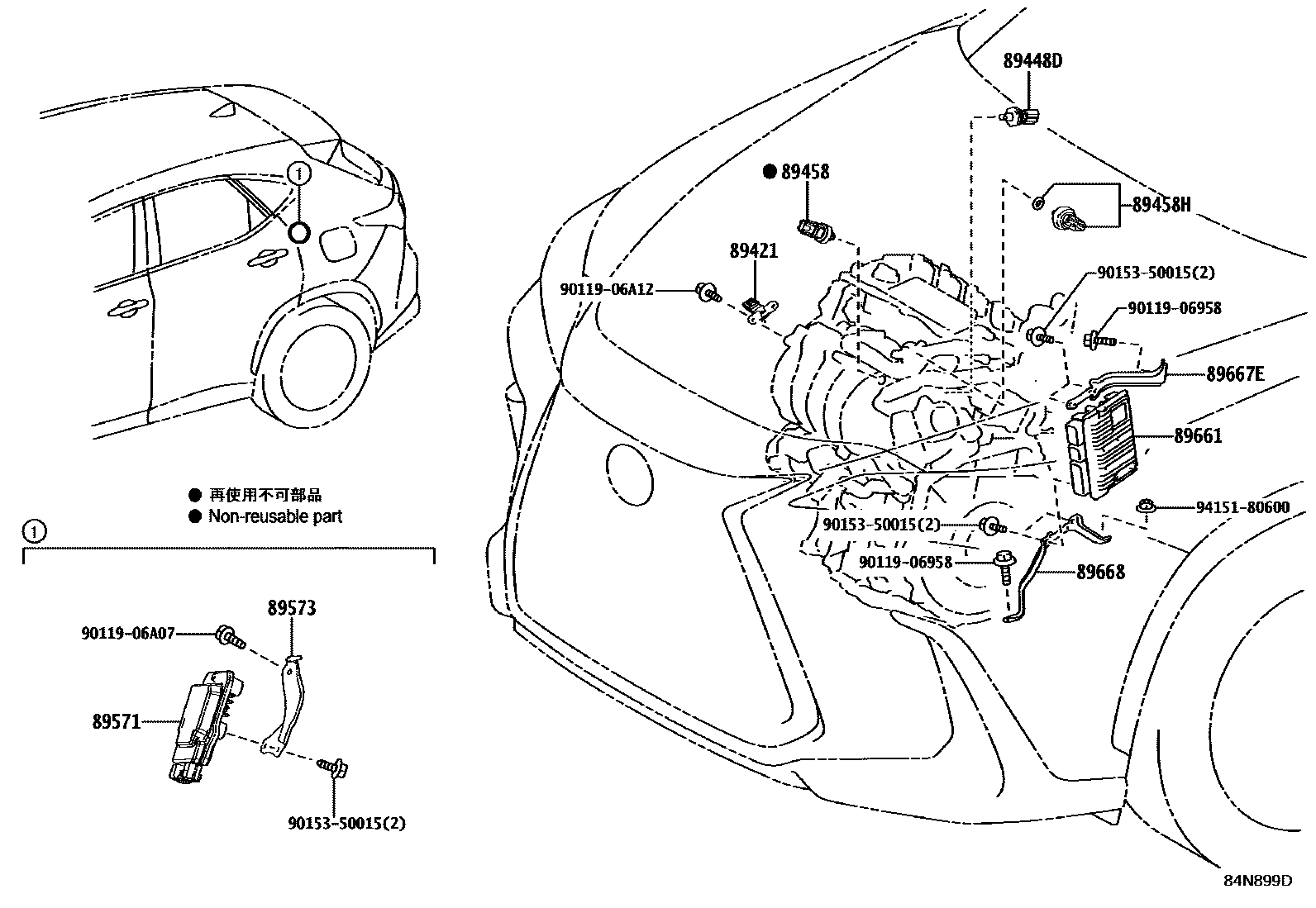

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010iAAZA2#202403-202506

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010iAAZA2#202403-202506

89458SENSOR, FUEL PRESSURE

main89458-33030iAAZA2#202403-202506

main89458-78030iTAZA25202403

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33041iAAZA2#,AAZH2#,TAZA25202111-202206

main89458-33042iAAZA2#202403-202506

89571COMPUTER, FUEL PUMP CONTROL

main89571-10010iAAZH20,25202403

main89571-42010iAAZH26202403

main89571-58020iTAZA25202403

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-78020iAAZA2#202403-202506

89661COMPUTER, ENGINE CONTROL

main89661-78C50iAAZH26202111-202308

main89661-78C51iAAZH26202309-202403

main89661-78D00iAAZH20,25202111-202303

main89661-78D80iTAZA25202111-202303

main89661-78D90iAAZA20202111-202403

main89661-78J00iAAZA25202111-202403

main89661-78K10iTAZA25202303-202403

main89661-78K60iAAZH20,25202303-202403

main89661-78K90iAAZA20202403-202506

main89661-78L60iAAZA25202403-202506

main89661-78L80iAAZH26202403

main89661-78M60iAAZH20,25202403

main89661-78N40iTAZA25202403-202507

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-33190iAAZA2#202403-202506

main89667-42080iAAZH2#202403-202405

main89667-42081iAAZH2#202406

main89667-78020iTAZA25202111-202403

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42080iAAZA2#202403-202506

main89668-42100iAAZH2#202403

main89668-78030iTAZA25202403

9011906958

main90119-06958

9011906A07

main90119-06A07

9011906A12

main90119-06A12

9015350015

main90153-50015

9415180600

main94151-80600

14 parts on this diagram · 3 diagrams in section
