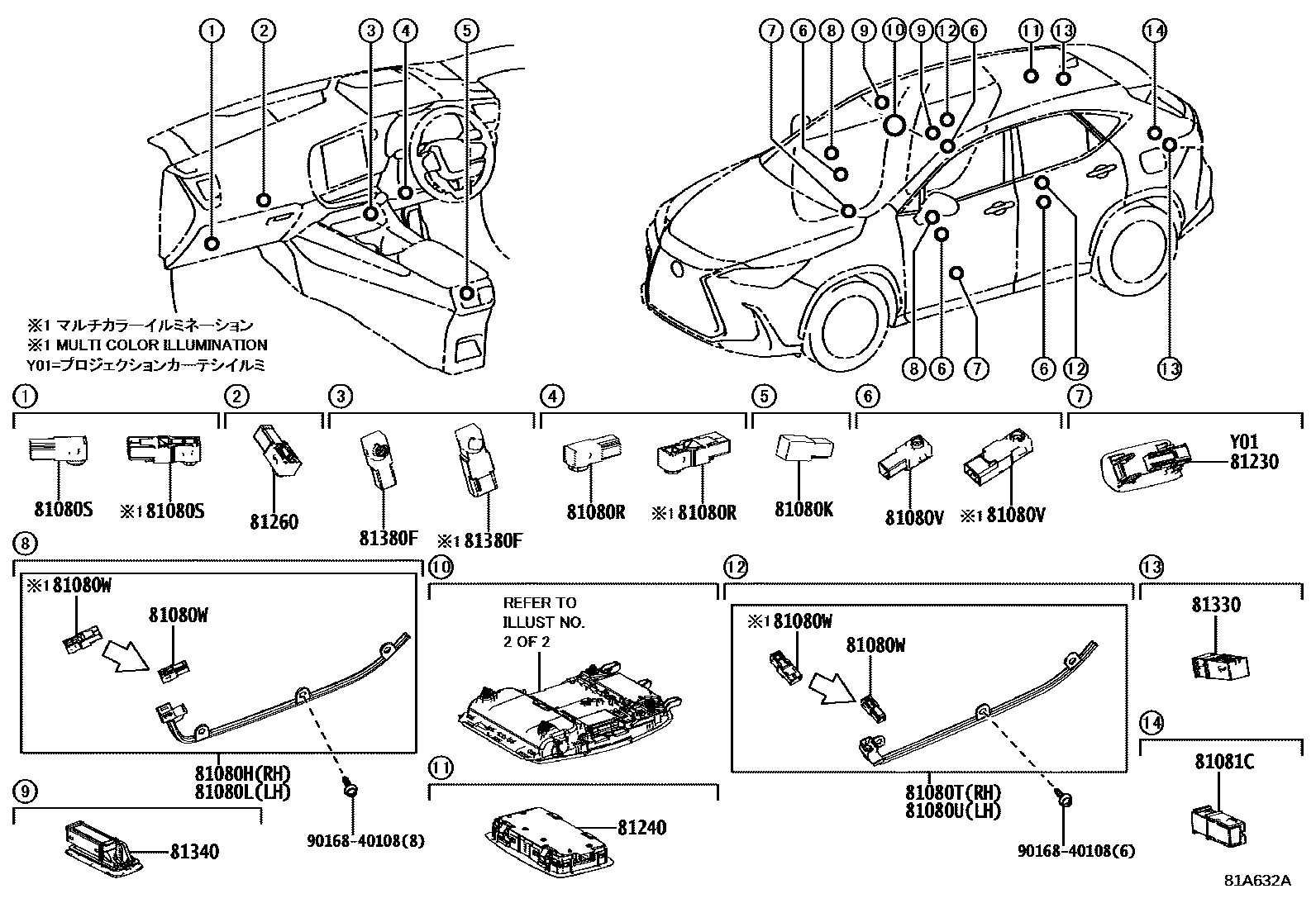

INTERIOR LAMP

0001 1 0002 1

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81090-78010iAAZH20,25; AAZH26,TAZA25202403-202507

main81090-78050iAAZA2#,AAZH2#; AAZA2#,AAZH20,25; AAZH2#; AAZH20,25; AAZH26,TAZA25; TAZA25202111-202403

main81090-78051iAAZH2#; AAZH20,25; AAZH25,26; AAZH26,TAZA25; TAZA25202403

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-50110iAAZA2#202403-202506

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81090-78020iAAZA2#202403-202506

main81090-78060iAAZA2#,AAZH2#; AAZA2#,AAZH20,25; AAZH2#; AAZH20,25; AAZH26,TAZA25; TAZA25202111-202403

main81090-78061iAAZH2#; AAZH20,25; AAZH25,26; AAZH26,TAZA25; TAZA25202403

81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-78010supersedes 81080-50110iAAZA2#,AAZH2#,TAZA25202111-202403

main81080-78040supersedes 81080-50110iAAZA2#202403-202506

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-78010supersedes 81080-50110iAAZA2#,AAZH2#,TAZA25202111-202403

main81080-78040supersedes 81080-50110iAAZA2#202403-202506

81080TLAMP ASSY, INTERIOR ILLUMINATION, NO.2 RH

main81090-78030iAAZH20,25; AAZH26,TAZA25202403-202507

main81090-78070iAAZA2#,AAZH2#; AAZA2#,AAZH20,25; AAZH2#; AAZH20,25; AAZH26,TAZA25; TAZA25202111-202403

main81090-78071iAAZH2#; AAZH20,25; AAZH25,26; AAZH26,TAZA25; TAZA25202403

81080ULAMP ASSY, INTERIOR ILLUMINATION, NO.2 LH

main81090-78040iAAZH20,25; AAZH26,TAZA25202403-202507

main81090-78080iAAZA2#,AAZH2#; AAZA2#,AAZH20,25; AAZH2#; AAZH20,25; AAZH26,TAZA25; TAZA25202111-202403

main81090-78081iAAZH2#; AAZH20,25; AAZH25,26; AAZH26,TAZA25; TAZA25202403

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-78030×4supersedes 81080-78020iAAZA2#,AAZH2#,TAZA25202111-202403

main81080-78060×4supersedes 81080-78020iAAZH2#,TAZA25202403

81080WLAMP ASSY, INTERIOR ILLUMINATION, NO.3

main81080-78020×4iAAZA2#,AAZH20,25; AAZH26,TAZA25202111-202403

main81080-78030×4iAAZA2#,AAZH2#,TAZA25202111-202403

main81080-78060×4iAAZH2#,TAZA25202403

81081CLAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.4

main81080-78050iAAZA2#,AAZH2#,TAZA25202111-202403

81230LAMP ASSY, COURTESY

main81230-11030×2iAAZA2#,AAZH2#; AAZH2#; TAZA25202111-202403

81240LAMP ASSY, ROOM, NO.1

main81360-78040iAAZA2#202403-202506

81260LAMP ASSY, GLOVE BOX

main81080-50110iAAZA2#202403-202506

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-78010×2iAAZA2#,AAZH2#,TAZA25202111-202204

main81330-78011×2iAAZH2#,TAZA25202403

81340LAMP ASSY, VANITY

main81340-48020×2iAAZA2#,AAZH2#,TAZA25202303-202403

main81340-50260×2iAAZA2#,AAZH2#,TAZA25202111-202303

81380FLAMP ASSY, CONSOLE BOX

main81080-78020iAAZH20,25; AAZH26,TAZA25202403-202507

main81080-78030iAAZA2#,AAZH2#,TAZA25202111-202403

main81080-78060iAAZH2#; AAZH2#,TAZA25; AAZH20,25; AAZH25,26; AAZH26; TAZA25202403

9016840108

main90168-40108

17 parts on this diagram · 2 diagrams in section
