REFLEX REFLECTOR

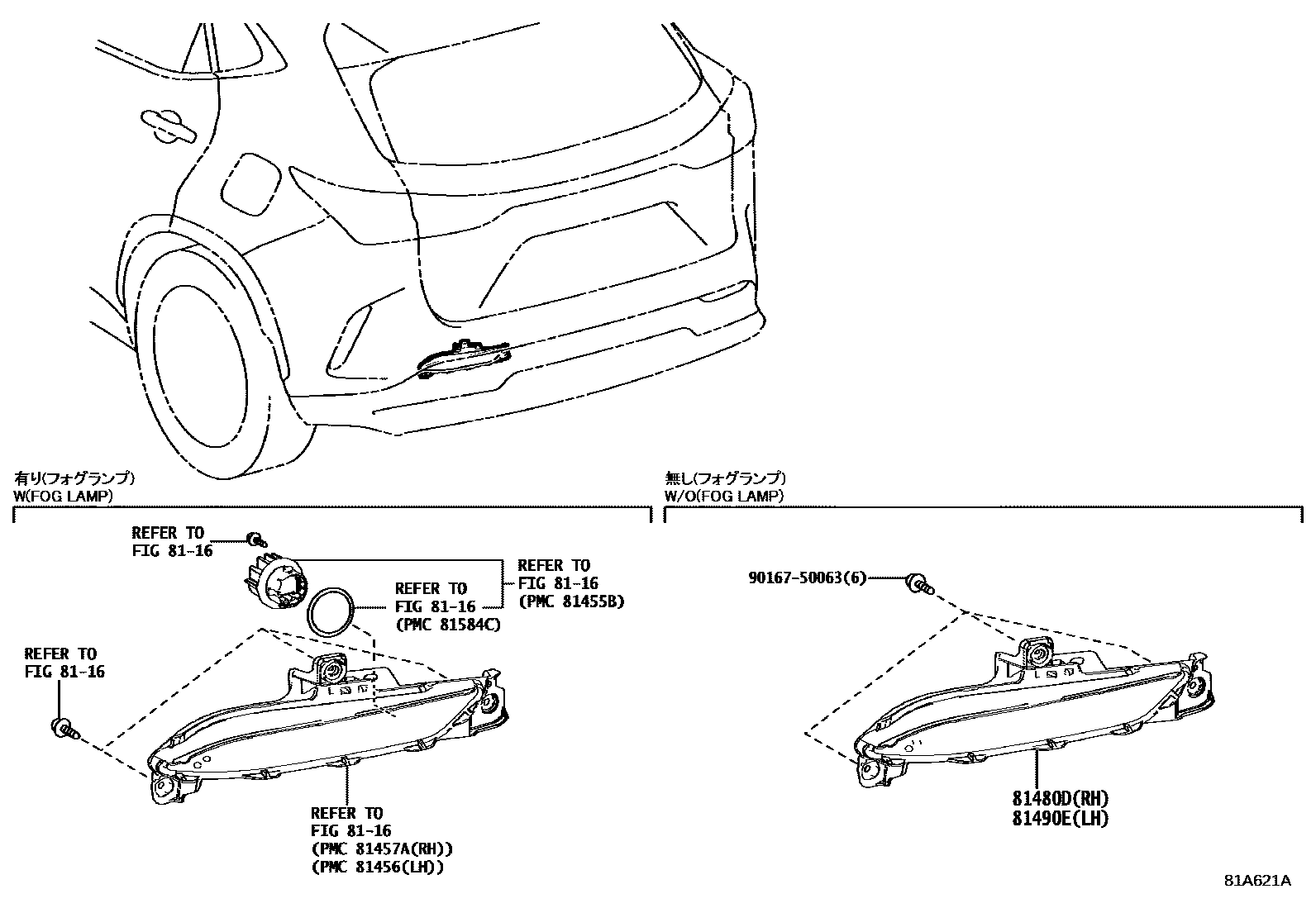

Parts diagram

8116REAR FOG LAMP

→ Go to FIG 81-16

81480DREFLECTOR ASSY, REFLEX, RH

main81480-78020i202403-202506

81490EREFLECTOR ASSY, REFLEX, LH

main81490-78030i202403-202506

9016750063

main90167-50063

4 parts on this diagram · 1 diagram in section
