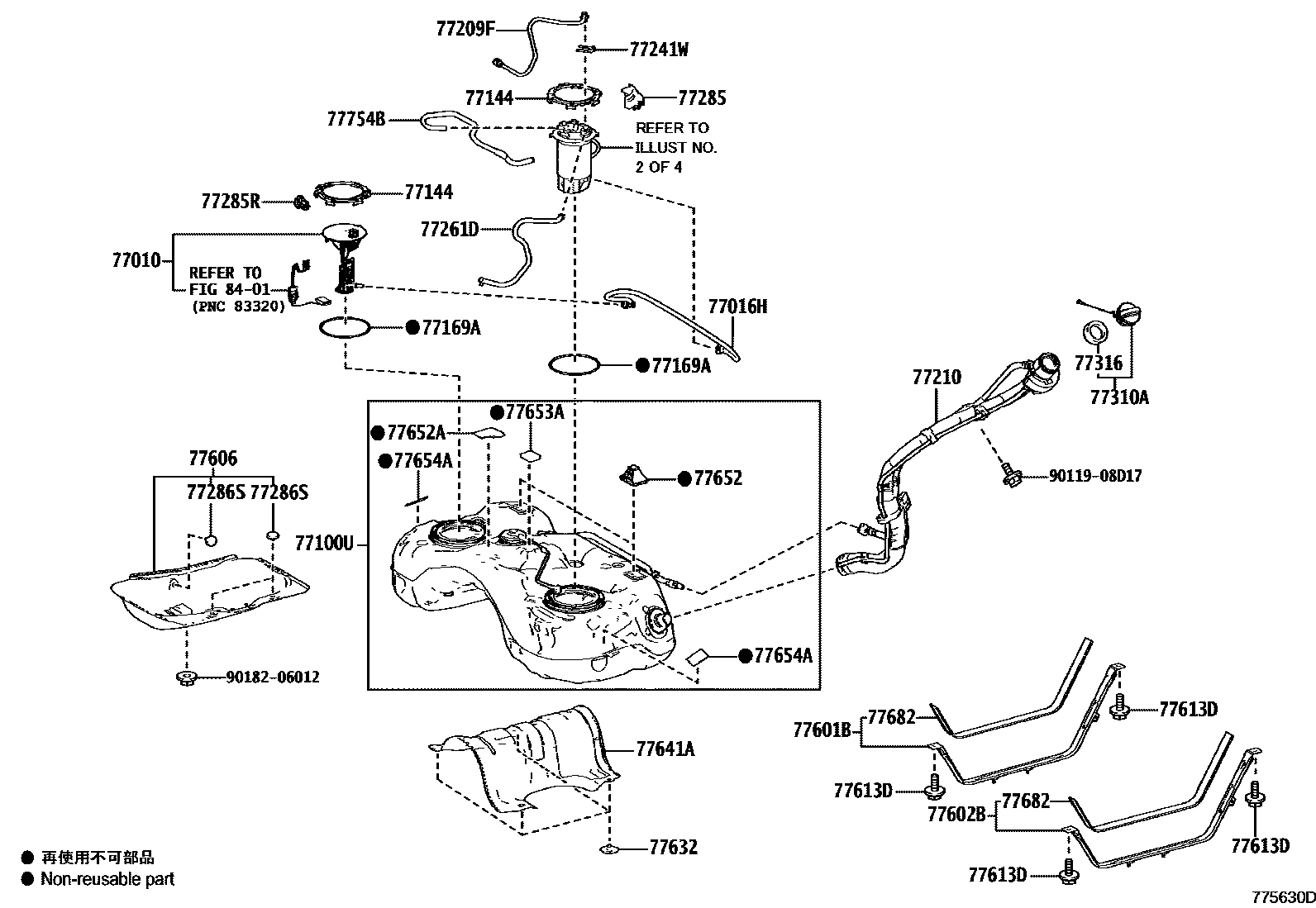

FUEL TANK & TUBE

0001 1�������� 0002 1�������� 0003 1�������� 0004 1���������� 0005 1���������� 0006 1���������� 0007 1���������� 0008 1���������� 0009 1���������� 0010 1���������� 0011 1��������������

77010TUBE ASSY, FUEL TANK VENT

main77010-42060iAAZA2#,TAZA25202403-202506

77016HTUBE SUB-ASSY, FUEL RETURN VENT

main77016-78020iAAZA2#202403-202506

77100UTANK SUB-ASSY, FUEL

main77001-42350iAAZH20,25202403

main77001-42440iAAZH26202111-202403

main77001-42480iAAZH26202403

main77001-78450iAAZA2#,TAZA25202111-202403

77144RETAINER, FUEL PUMP GAUGE

main77144-30030×2iAAZH2#; TAZA25202403

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47040×2iAAZA2#,TAZA25202111-202403

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-42230iAAZH20,25202111-202403

main77209-42250iAAZH26202403

main77209-78080iAAZA2#202111-202403

main77209-78100iTAZA25202403

77210PIPE ASSY, FUEL TANK FILLER

main77210-78130iAAZH26202403

main77210-78160iAAZA2#,TAZA25202111-202403

main77210-78190iAAZH20,25202111-202403

77241WCLIP, TUBE JOINT

main77241-60550×2iAAZH20,25,TAZA25; AAZH26202403

77261TUBE SUB-ASSY, FUEL EMISSION

main77261-42150iAAZH26202403

77261DTUBE, FUEL TANK TO CANISTER

main77026-42081iAAZH20,25202111-202403

main77026-78070iTAZA25202403

77285BRACKET, FUEL TUBE

main77285-78070iAAZA2#202403-202506

77285RCLAMP, FUEL TUBE, NO.1

main77285-30350iAAZH2#,TAZA25202403

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110×3iAAZA2#202403-202506

77310ACAP ASSY, FUEL TANK

main77300-33040iAAZH26202111-202403

main77300-48020iAAZA2#202403-202506

77316GASKET, FUEL TANK CAP

main77316-75020iAAZA2#,AAZH2#,TAZA25202111-202403

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-42100iAAZA2#202403-202506

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77601-42100iAAZA2#202403-202506

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-42040iAAZA2#,TAZA25202111-202403

77613DBOLT, FUEL TANK BAND SET, NO.2

main90119-10A05×2iAAZH2#; TAZA25202403

77632BRACKET, FUEL TANK, NO.2

main77512-35140×4iAAZA2#202403-202506

77641APROTECTOR, FUEL TANK, NO.1

main77606-42060iAAZH20,25202111-202403

main77606-42070iAAZH26202111-202403

main77606-42080iAAZH26202403

main77606-78010iAAZA2#202111-202403

main77606-78020iTAZA25202111-202209

77652CUSHION, FUEL TANK, NO.1

main77651-33060iAAZA2#,TAZA25; AAZH26202111-202403

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iAAZA2#,TAZA25202111-202403

main77652-42040iAAZH20,25202403

77653ACUSHION, FUEL TANK, NO.3

main77652-33060iAAZA2#202403-202506

77654ACUSHION, FUEL TANK, NO.4

main77652-47010×2iAAZA2#202403-202506

77682SEAT, FUEL TANK BAND, LH

main77682-47020×2iAAZH26202111-202403

main77682-75010×2iAAZA2#202403-202506

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-78020iAAZA2#202403-202506

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908D17

main90119-08D17

9018206012

main90182-06012

30 parts on this diagram · 11 diagrams in section
