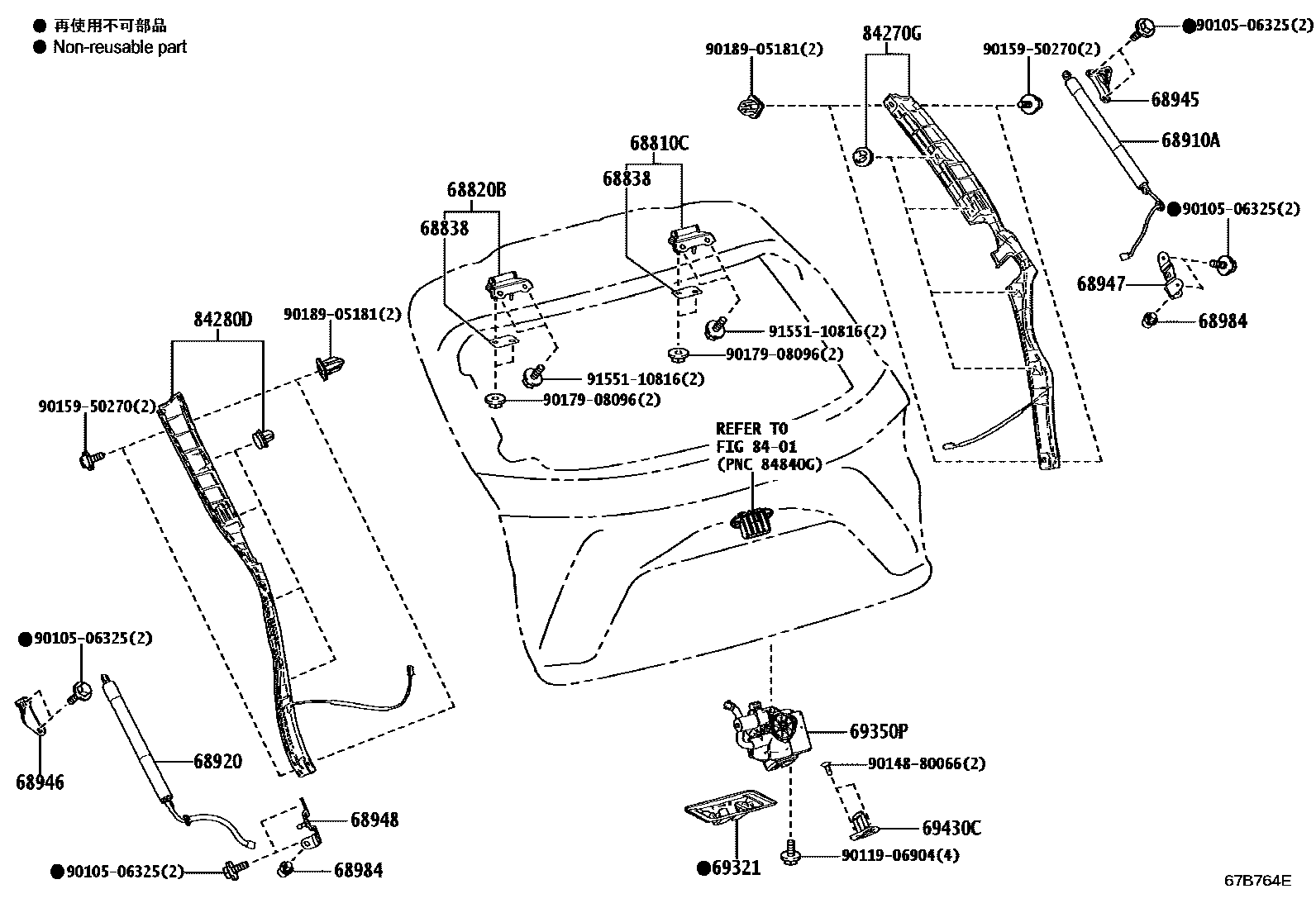

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-48220iAAZA2#,AAZH2#,TAZA25202111-202403

68820BHINGE ASSY, BACK DOOR, LH

main68810-48220iAAZH2#,TAZA25202403

68838PAD, BACK DOOR HINGE, NO.1

main68838-48140×2iAAZA2#202403-202506

main68838-48150×2iAAZA2#,AAZH2#,TAZA25202111-202403

main68838-48160×2iAAZA2#202403-202506

68910AUNIT ASSY SET, POWER BACK DOOR, RH

main68910-78031iAAZA2#,AAZH2#,TAZA25202111-202204

main68910-78032iAAZA2#202403-202506

68920UNIT ASSY SET, POWER BACK DOOR, LH

main68920-78031iAAZA2#,AAZH2#,TAZA25202111-202204

main68920-78032iAAZA2#202403-202506

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-78040iAAZA2#202403-202506

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-78040iAAZH2#,TAZA25202403

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-78030iAAZA2#,AAZH2#,TAZA25202111-202403

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-78030iAAZA2#,AAZH2#,TAZA25202111-202403

68984STOPPER, BACK DOOR STAY

main68984-78010×2iAAZA2#,AAZH2#,TAZA25202111-202208

main68984-78011×2iAAZA2#202403-202506

69321COVER, BACK DOOR LOCK

main69321-78040iAAZA2#,AAZH2#,TAZA25202111-202403

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-78090iAAZA2#202403-202506

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030iAAZA2#202403-202506

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84270GSENSOR ASSY, POWER BACK DOOR, RH

main84270-78020iAAZA2#202403-202506

84280DSENSOR ASSY, POWER BACK DOOR, LH

main84280-78020iAAZA2#202403-202506

9010506325

main90105-06325

9011906904

main90119-06904

9014880066

main90148-80066

9015950270

main90159-50270

9017908096

main90179-08096

9018905181

main90189-05181

9155110816

main91551-10816

23 parts on this diagram · 1 diagram in section
