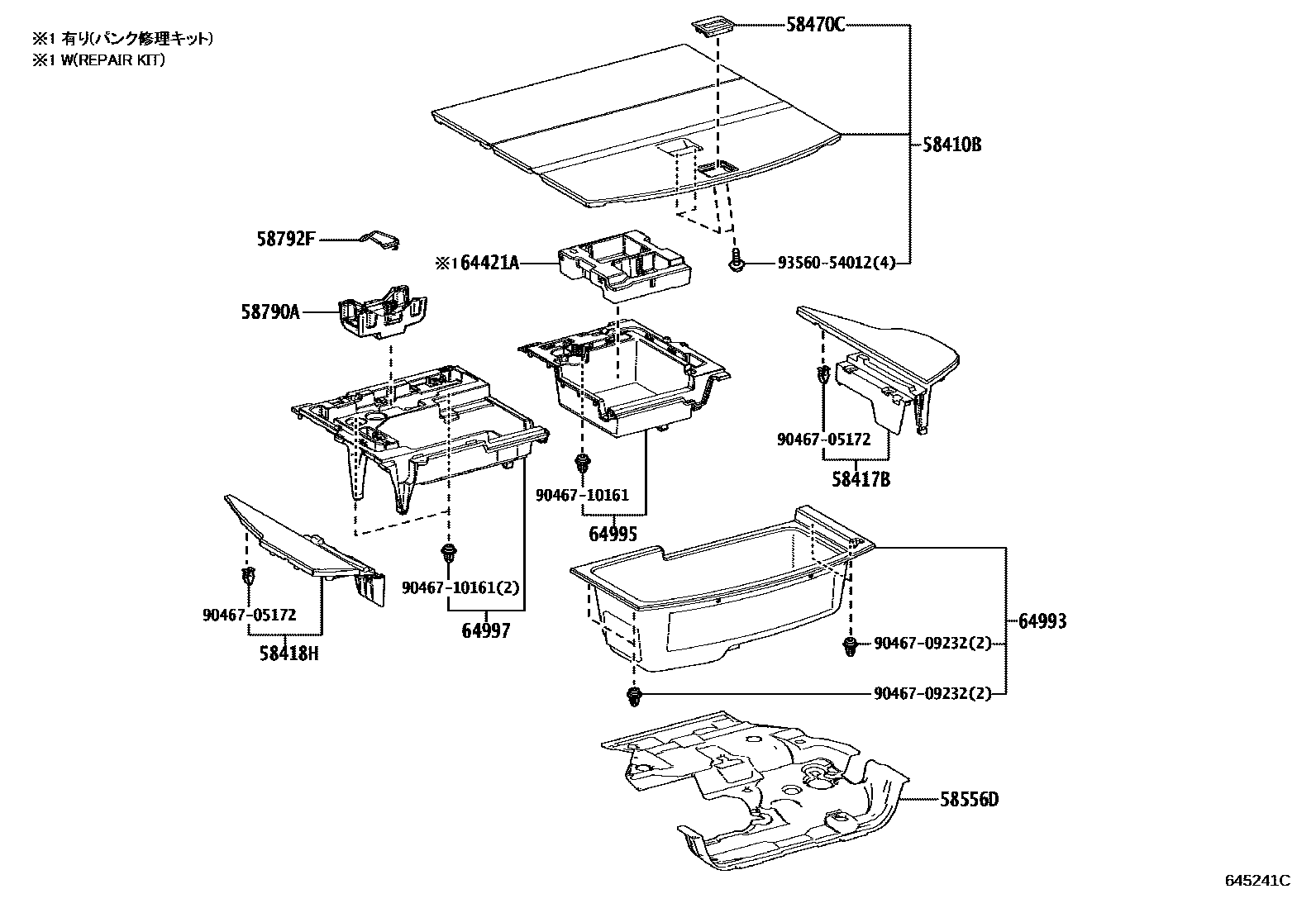

DECK BOARD & DECK TRIM COVER

0001 1��������� 0002 1��������� 0003 1��������� 0004 1�����������

58410BBOARD ASSY, DECK

main58410-78030-C0iAAZA2#,AAZH2#; TAZA25202111-202403

BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#

58417BBOARD, REAR FLOOR, REAR RH

main58417-78010-C0iAAZA2#; TAZA25202111-202403

BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#

main58417-78020-C0iAAZH2#202111-202403

BLACK,TRIM0#,2#,3#,4#

58418HBOARD, REAR FLOOR, REAR LH

main58418-78020-C0iAAZA2#,AAZH2#; TAZA25202111-202403

BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#

58470CHANDLE ASSY, DECK BOARD

main58470-78030-C0iAAZA2#,AAZH2#; TAZA25202111-202403

BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#

58556DSILENCER, REAR FLOOR

main58556-78010iAAZA2#202403-202506

58790ACARRIER ASSY, JACK

main58790-78040iAAZH20,25,TAZA25202403

58792FSUPPORT, JACK CARRIER

main58792-48010iAAZA2#,AAZH2#,TAZA25202111-202403

64421ATRAY, LUGGAGE COMPARTMENT

main64421-78010iAAZH20,25; TAZA25202403

64993BOX, DECK FLOOR, REAR

main64993-78030iAAZA2#,TAZA25202111-202403

main64993-78040iAAZH2#202403

64995BOX, DECK FLOOR, RH

main64995-78060iAAZH20,25,TAZA25202403

64997BOX, DECK FLOOR, LH

main64997-78060iAAZA2#202403-202506

9046705172

main90467-05172

9046709232

main90467-09232

9046710161

main90467-10161

9356054012

main93560-54012

15 parts on this diagram · 4 diagrams in section
