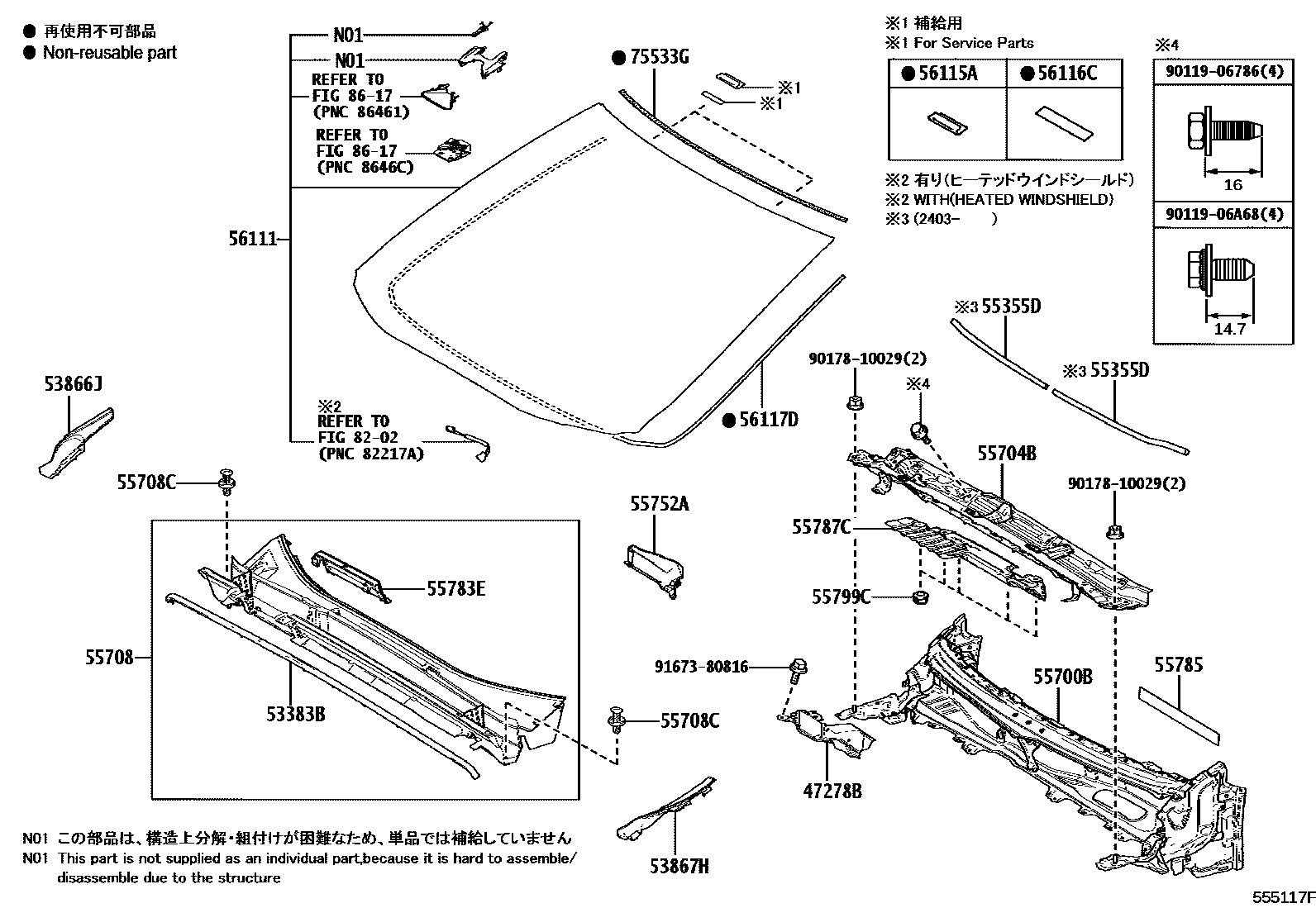

COWL PANEL & WINDSHIELD GLASS
47278BCOVER, BRAKE MASTER CYLINDER
53383BSEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55355DCUSHION, INSTRUMENT PANEL, NO.1
55704BPANEL SUB-ASSY, COWL VENTILATOR
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708CCLIP, COWL TOP VENTILATOR LOUVER
55752ASHIELD, COWL VENTILATOR SPLASH, LH
55783ELOUVER, COWL TOP VENTILATOR, CENTER
55785PAD, COWL OUTER PANEL, NO.2
55787CINSULATOR, COWL TOP PANEL, NO.1
55799CCLIP, COWL TOP VENTILATOR LOUVER
BLACK
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
75533GMOULDING, WINDSHIELD, OUTSIDE
8202WIRING & CLAMP
8617PRE-COLLISION SYSTEM
9011906786
main90119-06786
9011906A68
main90119-06A68
9017810029
main90178-10029
9167380816
main91673-80816
25 parts on this diagram · 1 diagram in section
