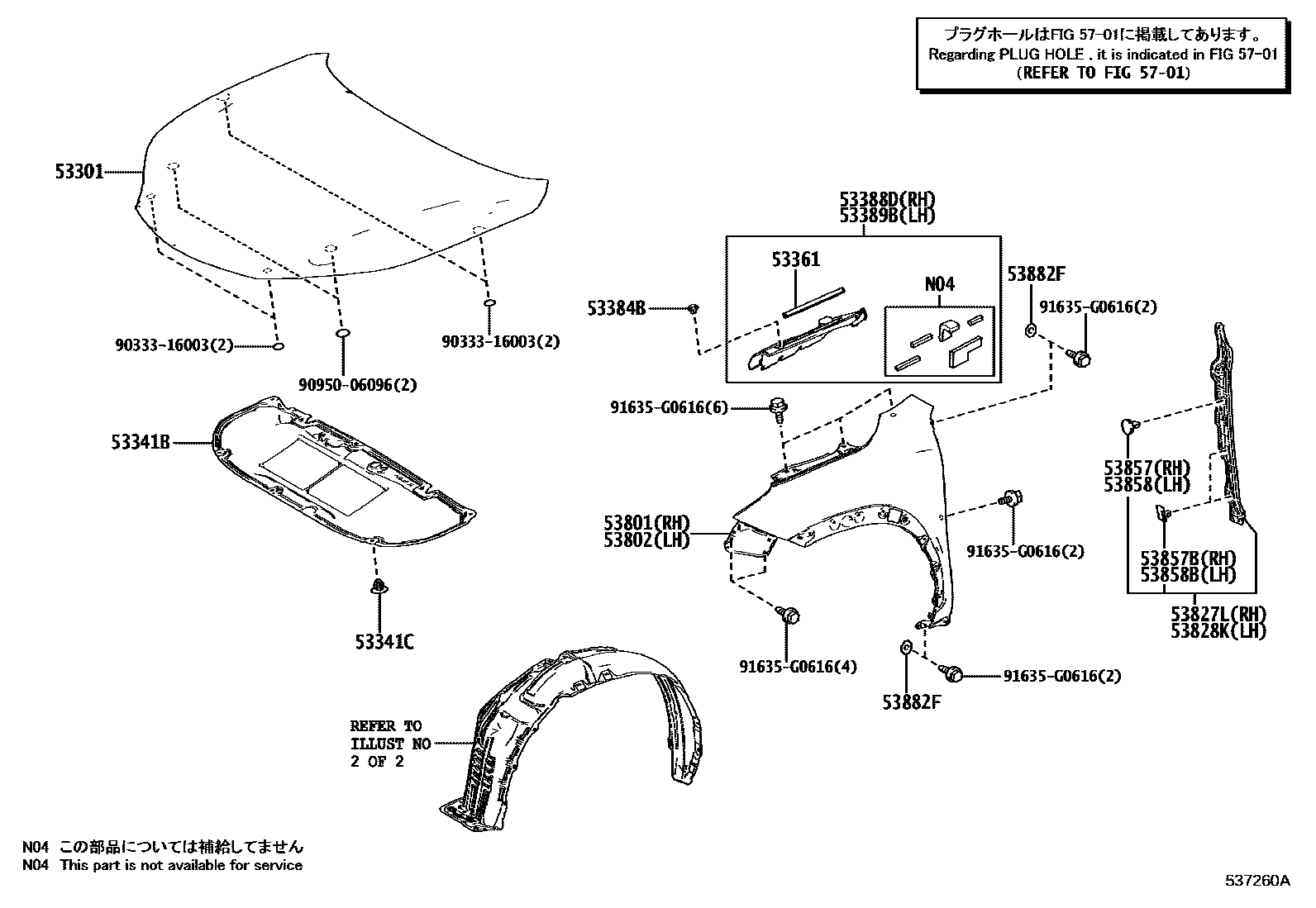

HOOD & FRONT FENDER

0001 1 0002 1��������

53301HOOD SUB-ASSY

main53301-78010iAGZ1#,AYZ1#201407-201709

main53301-78030iAGZ1#,AYZ1#201709

53341BINSULATOR, HOOD

main53341-78010iAGZ1#,AYZ1#201407-201709

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×7iAGZ1#,AYZ1#201407-201709

53361WEATHERSTRIP, HOOD

main53361-78010×2iAGZ1#,AYZ1#201407-201709

main53361-78011×2iAGZ1#,AYZ1#201809

53384BCUSHION, HOOD, CENTER

main53384-78010×2iAGZ1#,AYZ1#201407-201709

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-78010iAGZ1#,AYZ1#201407-201709

main53388-78011iAGZ1#,AYZ1#201809

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-78010iAGZ1#,AYZ1#201407-201709

main53389-78011iAGZ1#,AYZ1#201809

53801FENDER SUB-ASSY, FRONT RH

main53811-78010iAGZ1#,AYZ1#201407-201709

53802FENDER SUB-ASSY, FRONT LH

main53812-78010iAGZ1#,AYZ1#201407-201709

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-78010iAGZ1#,AYZ1#201407-201709

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-78010iAGZ1#,AYZ1#201407-201709

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iAGZ1#,AYZ1#201407-201709

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010×2iAGZ1#,AYZ1#201407-201709

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iAGZ1#,AYZ1#201407-201709

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010×2iAGZ1#,AYZ1#201407-201709

53882FSEAL, FRONT FENDER

main53882-26010×4iAGZ1#,AYZ1#201407-201709

5701HOLE PLUG

→ Go to FIG 57-01

9033316003

main90333-16003

9095006096

main90950-06096

91635G0616

main91635-G0616

20 parts on this diagram · 2 diagrams in section
