Toyota HARRIER 521 — FRONT BUMPER & BUMPER STAY

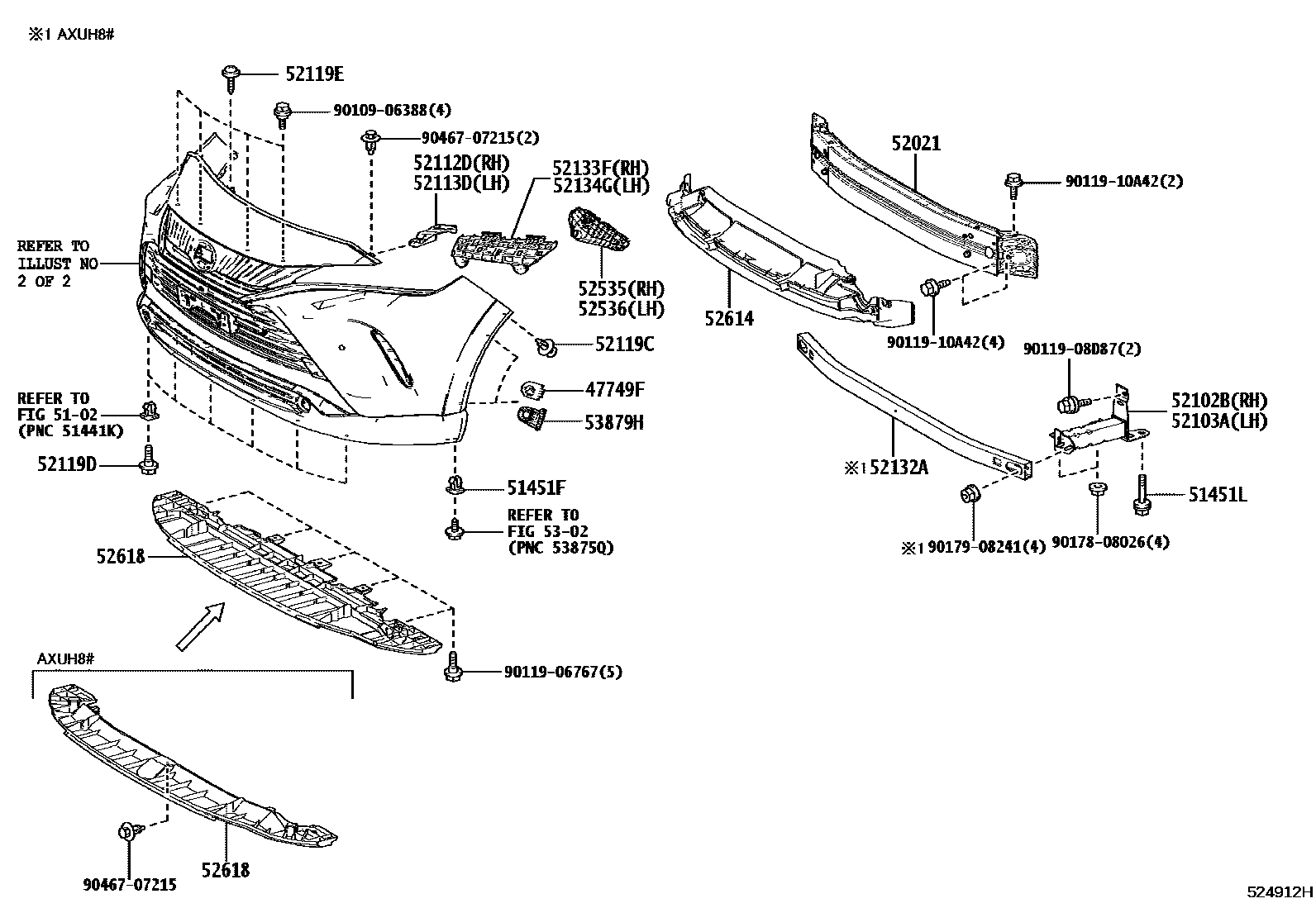

Parts diagram

47749FCLIP, PIN HOLD

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

51451FGROMMET, NO.1

51451LBOLT, NO.1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

52112DEXTENSION, FRONT BUMPER, RH

52113DEXTENSION, FRONT BUMPER, LH

52119CCLIP, FRONT BUMPER COVER

52119DSCREW, NO.1

52119ESCREW, NO.2

52132AREINFORCEMENT, FRONT BUMPER, NO.2

52133FBRACKET, FRONT BUMPER, RH

52134GBRACKET, FRONT BUMPER, LH

52535RETAINER, FRONT BUMPER SIDE, RH

52536RETAINER, FRONT BUMPER SIDE, LH

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

52618ABSORBER, FRONT BUMPER, LOWER

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53879HRETAINER, FRONT FENDER LINER

9010906388

9011906767

9011908D87

9011910A42

9017808026

9017908241

9046707215

28 parts on this diagram · 5 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota HARRIER 521

This section contains 61 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota HARRIER 521. Key components include: CLIP, PIN HOLD, SUSPENSION CROSSMEMBER & UNDER COVER, GROMMET, NO.1, BOLT, NO.1, REINFORCEMENT SUB-ASSY, FRONT BUMPER.
