Toyota HARRIER 521 — SUSPENSION CROSSMEMBER & UNDER COVER

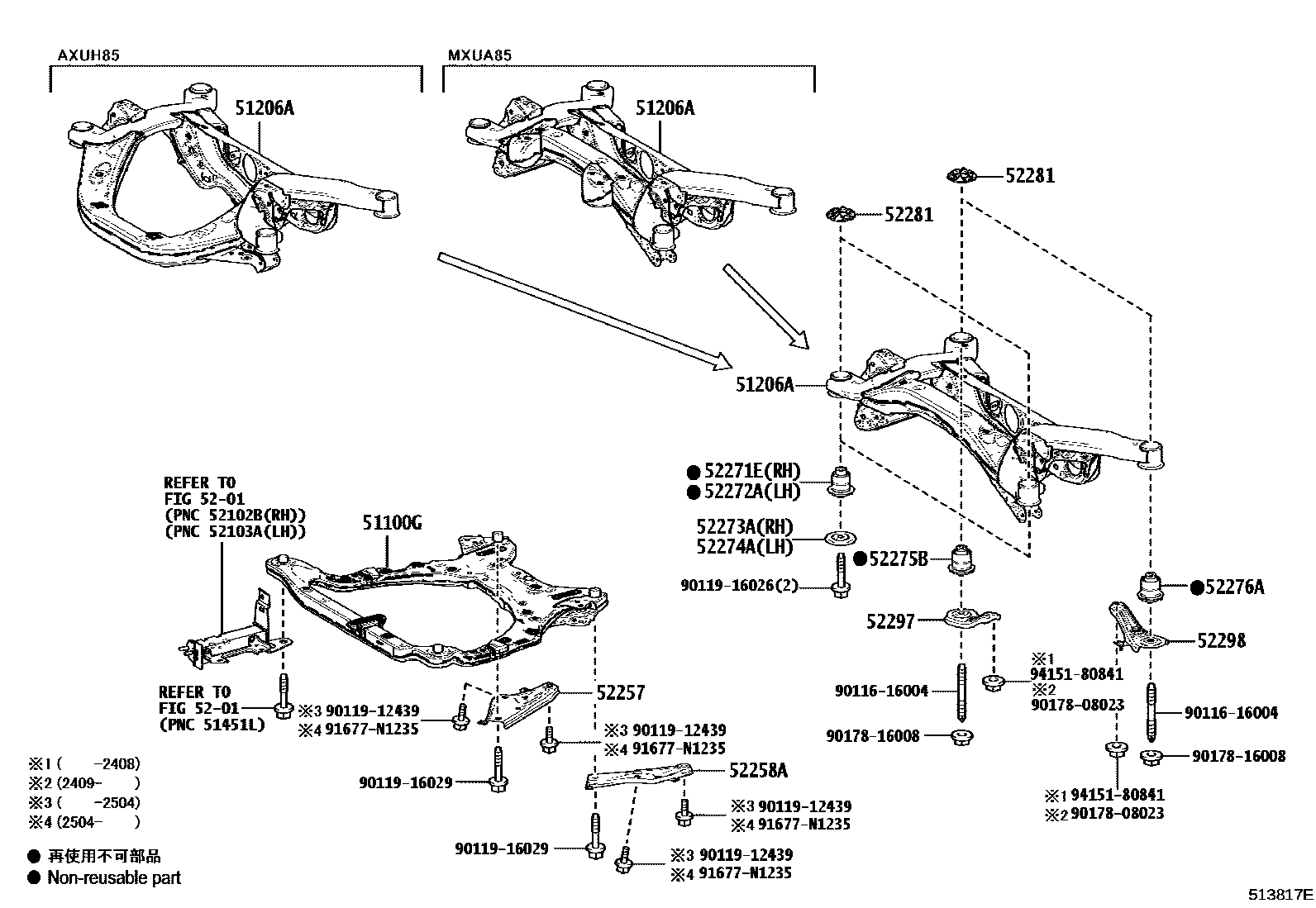

Parts diagram

51100GFRAME ASSY, FRONT

51206AMEMBER SUB-ASSY, REAR SUSPENSION

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

9011616004

9011912439

9011916026

9011916029

9017808023

9017816008

91677N1235

9415180841

22 parts on this diagram · 6 diagrams in section

SUSPENSION CROSSMEMBER & UNDER COVER for Toyota HARRIER 521

This section contains 63 genuine Toyota parts for the SUSPENSION CROSSMEMBER & UNDER COVER system of the Toyota HARRIER 521. Key components include: FRAME ASSY, FRONT, MEMBER SUB-ASSY, REAR SUSPENSION, COVER SUB-ASSY, ENGINE UNDER, NO.2, BRACKET SUB-ASSY, ENGINE UNDER COVER, COVER ASSY, ENGINE UNDER, NO.2.
