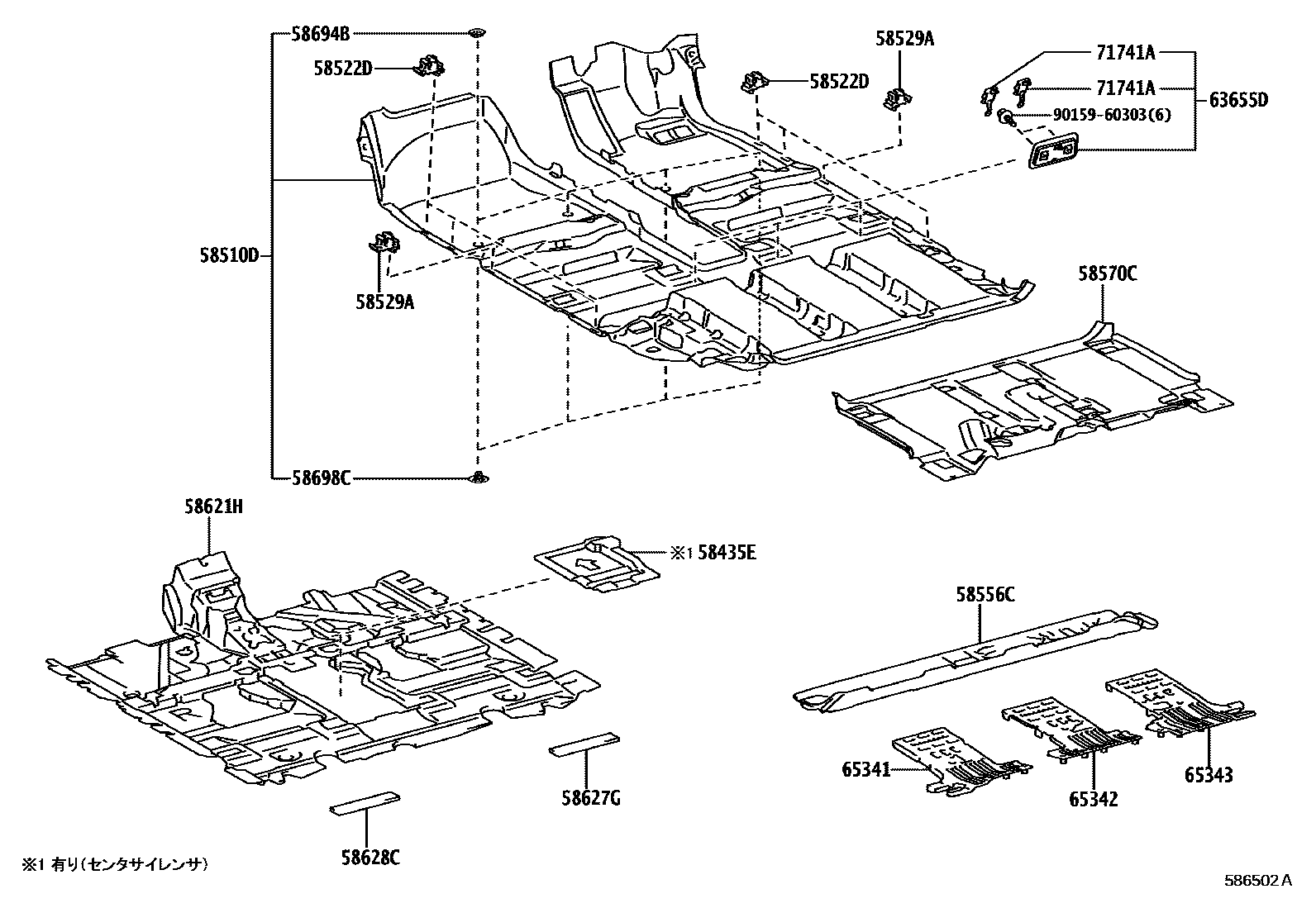

MAT & CARPET
58435ESILENCER, FRONT FLOOR, CENTER
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03
NOBLE BROWN,TRIM0#,5#,6#
58522DHOOK, FLOOR CARPET, NO.2
58529AHOOK, FLOOR CARPET, NO.3
58556CSILENCER, REAR FLOOR
58570CCARPET ASSY, REAR FLOOR
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03
NOBLE BROWN,TRIM0#,5#,6#
58621HPAD, FRONT FLOOR SILENCER
58627GPAD, CENTER FLOOR SILENCER, REAR RH
58628CPAD, CENTER FLOOR SILENCER, REAR LH
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
63655DCOVER, AIR INTAKE
BLACK,TRIM0#,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03
NOBLE BROWN,TRIM0#,5#,6#
65341BOARD, FLOOR, NO.1
65342BOARD, FLOOR, NO.2
65343BOARD, FLOOR, NO.3
71741ACOVER, AIR HOLE
BLACK,TRIM0#,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03
NOBLE BROWN,TRIM0#,5#,6#
9015960303
main90159-60303
17 parts on this diagram · 1 diagram in section
