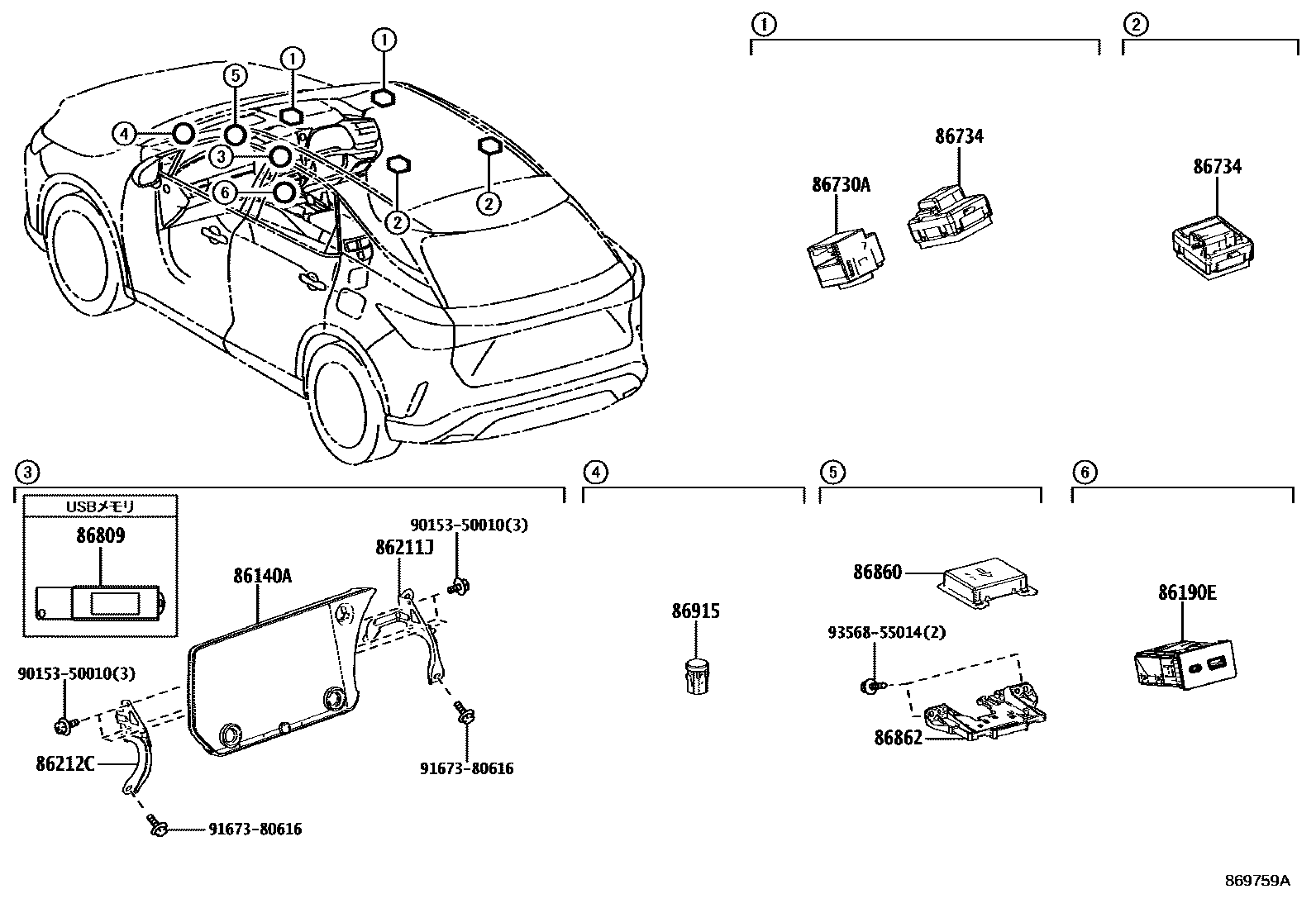

NAVIGATION & FRONT MONITOR DISPLAY

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-48320iAALH1#,TALA1#,TALH17202211-202305

main86100-48321iAALH1#,TALA1#,TALH17202306-202307

main86100-48322iAALH1#,TALA1#,TALH17202308-202402

main86100-48323iAALH1#,TALA1#,TALH17202403-202405

main86100-48324iAALH1#,TALA1#,TALH17202406-202410

main86100-48325iAALH1#,TALA1#,TALH17202411

86190EADAPTER ASSY, STEREO JACK

main86190-48110iAALH1#,TALA1#,TALH17202211

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-48320iAALH1#,TALA1#,TALH17202211

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-48320iAALH1#,TALA1#,TALH17202211

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010×2iAALH1#,TALA1#,TALH17202211

86734MICROPHONE, ACTIVE NOISE CONTROL

main86734-11030×4iTALA1#,TALH17202211

86809USB SET, USB MEMORY NAVIGATION DATA

main86809-78011iAALH1#,TALA1#,TALH17202211-202310

main86809-78012iAALH1#,TALA1#,TALH17202311-202403

main86809-78013iAALH1#,TALA1#,TALH17202404-202410

main86809-78014iAALH1#,TALA1#,TALH17202411-202503

86860ANTENNA ASSY, NAVIGATION

main86880-52030iAALH1#,TALA1#,TALH17202211

86862BRACKET, NAVIGATION ANTENNA

main86862-48060iAALH1#,TALA1#,TALH17202211

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iAALH1#,TALA1#,TALH17202211

9015350010

main90153-50010

9167380616

main91673-80616

9356855014

main93568-55014

13 parts on this diagram · 1 diagram in section
