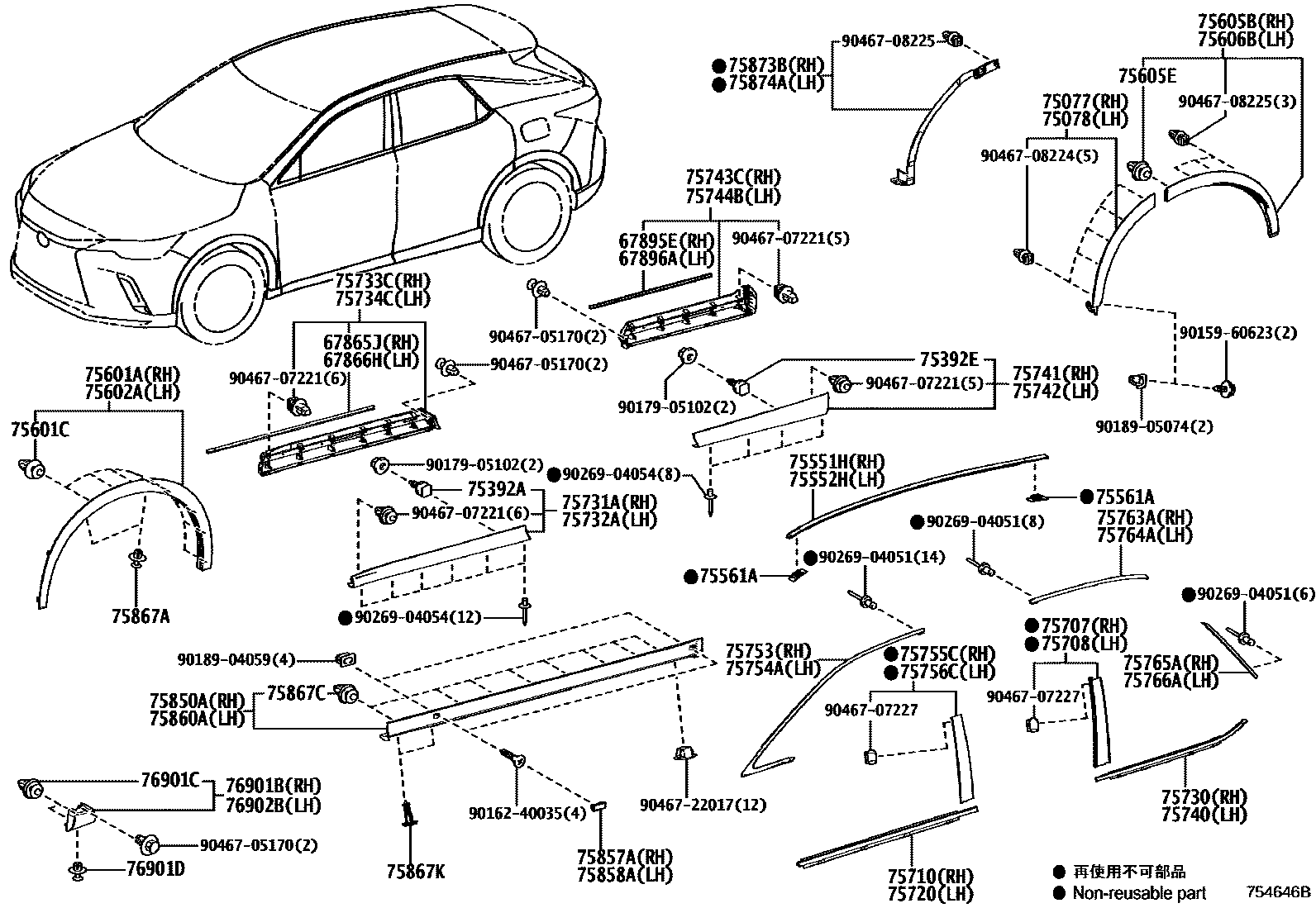

SIDE MOULDING

67865JWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-48050iAALH1#,TALA1#,TALH17202211

67866HWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67865-48050iAALH1#,TALA1#,TALH17202211

67895EWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-48060iAALH1#,TALA1#,TALH17202211

67896AWEATHERSTRIP, REAR DOOR, NO.3 LH

main67895-48060iAALH1#,TALA1#,TALH17202211

75077MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH

main75077-48030-A0iAALH1#,TALA1#,TALH17202211

WHITE NOVA GF.,083

main75077-48030-A1iAALH1#,TALA1#202211-202509

SONIC QUARTZ,085

main75077-48030-B0iAALH1#,TALA1#202211

SONIC TITANIUM,1J7

main75077-48030-B1iAALH1#,TALA1#,TALH17202211

SONIC CHROME,1L1

main75077-48030-B2iAALH1#,TALA1#,TALH17202211

SONIC IRIDIUM,1L2

main75077-48030-C0iAALH1#,TALA1#,TALH17202211

GRAPHITE BLACK GF.,223

main75077-48030-D0iAALH1#,TALA1#202211

RED MC.CS.,3R1

main75077-48030-E0iAALH1#,TALA1#,TALH17202211

SONIC COPPER,4Y5

main75077-48030-G0iAALH1#,TALA1#202211

TERRANE KHAKI M.M.,6X4

main75077-48030-J0iTALA15,TALH17202211

HEAT BLUE CONTRAST LAYERI,8X1

main75077-48030-J1iAALH1#,TALA1#202211

DEEP BLUE MC.,8X5

75078MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH

main75078-48030-A0iAALH1#,TALA1#,TALH17202211

WHITE NOVA GF.,083

main75078-48030-A1iAALH1#,TALA1#202211-202509

SONIC QUARTZ,085

main75078-48030-B0iAALH1#,TALA1#202211

SONIC TITANIUM,1J7

main75078-48030-B1iAALH1#,TALA1#,TALH17202211

SONIC CHROME,1L1

main75078-48030-B2iAALH1#,TALA1#,TALH17202211

SONIC IRIDIUM,1L2

main75078-48030-C0iAALH1#,TALA1#,TALH17202211

GRAPHITE BLACK GF.,223

main75078-48030-D0iAALH1#,TALA1#202211

RED MC.CS.,3R1

main75078-48030-E0iAALH1#,TALA1#,TALH17202211

SONIC COPPER,4Y5

main75078-48030-G0iAALH1#,TALA1#202211

TERRANE KHAKI M.M.,6X4

main75078-48030-J0iTALA15,TALH17202211

HEAT BLUE CONTRAST LAYERI,8X1

main75078-48030-J1iAALH1#,TALA1#202211

DEEP BLUE MC.,8X5

75392ARETAINER, OUTSIDE MOULDING, NO.1

main75392-33020×2iAALH1#,TALA1#,TALH17202211

75392ERETAINER, OUTSIDE MOULDING, NO.1

main75392-33020×2iAALH1#,TALA1#,TALH17202211

75551HMOULDING, ROOF DRIP SIDE, RH

main75555-48100iAALH1#,TALA1#,TALH17202211

75552HMOULDING, ROOF DRIP SIDE, LH

main75556-48070iAALH1#,TALA1#,TALH17202211

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-48020×4iAALH1#,TALA1#,TALH17202211

75601AMOULDING SUB-ASSY, FRONT FENDER, RH

main75601-48080-A0iAALH1#,TALA1#,TALH17202211

WHITE NOVA GF.,083

main75601-48080-A1iAALH1#,TALA1#202211-202509

SONIC QUARTZ,085

main75601-48080-B0iAALH1#,TALA1#202211

SONIC TITANIUM,1J7

main75601-48080-B1iAALH1#,TALA1#,TALH17202211

SONIC CHROME,1L1

main75601-48080-B2iAALH1#,TALA1#,TALH17202211

SONIC IRIDIUM,1L2

main75601-48080-C0iAALH1#,TALA1#,TALH17202211

GRAPHITE BLACK GF.,223

main75601-48080-D0iAALH1#,TALA1#202211

RED MC.CS.,3R1

main75601-48080-E0iAALH1#,TALA1#,TALH17202211

SONIC COPPER,4Y5

main75601-48080-G0iAALH1#,TALA1#202211

TERRANE KHAKI M.M.,6X4

main75601-48080-J0iTALA15,TALH17202211

HEAT BLUE CONTRAST LAYERI,8X1

main75601-48080-J1iAALH1#,TALA1#202211

DEEP BLUE MC.,8X5

75601CCLIP, FRONT FENDER MOULDING

main75867-33030×16iAALH1#,TALA1#,TALH17202211

75602AMOULDING SUB-ASSY, FRONT FENDER, LH

main75602-48080-A0iAALH1#,TALA1#,TALH17202211

WHITE NOVA GF.,083

main75602-48080-A1iAALH1#,TALA1#202211-202509

SONIC QUARTZ,085

main75602-48080-B0iAALH1#,TALA1#202211

SONIC TITANIUM,1J7

main75602-48080-B1iAALH1#,TALA1#,TALH17202211

SONIC CHROME,1L1

main75602-48080-B2iAALH1#,TALA1#,TALH17202211

SONIC IRIDIUM,1L2

main75602-48080-C0iAALH1#,TALA1#,TALH17202211

GRAPHITE BLACK GF.,223

main75602-48080-D0iAALH1#,TALA1#202211

RED MC.CS.,3R1

main75602-48080-E0iAALH1#,TALA1#,TALH17202211

SONIC COPPER,4Y5

main75602-48080-G0iAALH1#,TALA1#202211

TERRANE KHAKI M.M.,6X4

main75602-48080-J0iTALA15,TALH17202211

HEAT BLUE CONTRAST LAYERI,8X1

main75602-48080-J1iAALH1#,TALA1#202211

DEEP BLUE MC.,8X5

75605BMOULDING SUB-ASSY, QUARTER OUTSIDE, RH

main75605-48050-A0iAALH1#,TALA1#,TALH17202211

WHITE NOVA GF.,083

main75605-48050-A1iAALH1#,TALA1#202211-202509

SONIC QUARTZ,085

main75605-48050-B0iAALH1#,TALA1#202211

SONIC TITANIUM,1J7

main75605-48050-B1iAALH1#,TALA1#,TALH17202211

SONIC CHROME,1L1

main75605-48050-B2iAALH1#,TALA1#,TALH17202211

SONIC IRIDIUM,1L2

main75605-48050-C0iAALH1#,TALA1#,TALH17202211

GRAPHITE BLACK GF.,223

main75605-48050-D0iAALH1#,TALA1#202211

RED MC.CS.,3R1

main75605-48050-E0iAALH1#,TALA1#,TALH17202211

SONIC COPPER,4Y5

main75605-48050-G0iAALH1#,TALA1#202211

TERRANE KHAKI M.M.,6X4

main75605-48050-J0iTALA15,TALH17202211

HEAT BLUE CONTRAST LAYERI,8X1

main75605-48050-J1iAALH1#,TALA1#202211

DEEP BLUE MC.,8X5

75605ECLIP, QUARTER OUTSIDE MOULDING

main62217-13010×2iAALH1#,TALA1#,TALH17202211

75606BMOULDING SUB-ASSY, QUARTER OUTSIDE, LH

main75606-48050-A0iAALH1#,TALA1#,TALH17202211

WHITE NOVA GF.,083

main75606-48050-A1iAALH1#,TALA1#202211-202509

SONIC QUARTZ,085

main75606-48050-B0iAALH1#,TALA1#202211

SONIC TITANIUM,1J7

main75606-48050-B1iAALH1#,TALA1#,TALH17202211

SONIC CHROME,1L1

main75606-48050-B2iAALH1#,TALA1#,TALH17202211

SONIC IRIDIUM,1L2

main75606-48050-C0iAALH1#,TALA1#,TALH17202211

GRAPHITE BLACK GF.,223

main75606-48050-D0iAALH1#,TALA1#202211

RED MC.CS.,3R1

main75606-48050-E0iAALH1#,TALA1#,TALH17202211

SONIC COPPER,4Y5

main75606-48050-G0iAALH1#,TALA1#202211

TERRANE KHAKI M.M.,6X4

main75606-48050-J0iTALA15,TALH17202211

HEAT BLUE CONTRAST LAYERI,8X1

main75606-48050-J1iAALH1#,TALA1#202211

DEEP BLUE MC.,8X5

75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH

main75707-48040iAALH1#,TALA1#,TALH17202211

75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH

main75708-48040iAALH1#,TALA1#,TALH17202211

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-48110iAALH1#,TALA1#202211

main75710-48120iTALH17202211

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-48110iAALH1#,TALA1#202211

main75720-48120iTALH17202211

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-48120iAALH1#,TALA1#202211

main75730-48130iTALH17202211

75731AMOULDING, FRONT DOOR, OUTSIDE RH

main75731-48120iAALH1#,TALA1#202211

main75731-48130-A0iTALH17202211

WHITE NOVA GF.,083

main75731-48130-B0iTALH17202211

SONIC IRIDIUM,1L2

main75731-48130-B1iTALH17202211

SONIC CHROME,1L1

main75731-48130-C0iTALH17202211

GRAPHITE BLACK GF.,223

main75731-48130-E0iTALH17202211

SONIC COPPER,4Y5

main75731-48130-J0iTALH17202211

HEAT BLUE CONTRAST LAYERI,8X1

75732AMOULDING, FRONT DOOR, OUTSIDE LH

main75732-48120iAALH1#,TALA1#202211

main75732-48130-A0iTALH17202211

WHITE NOVA GF.,083

main75732-48130-B0iTALH17202211

SONIC IRIDIUM,1L2

main75732-48130-B1iTALH17202211

SONIC CHROME,1L1

main75732-48130-C0iTALH17202211

GRAPHITE BLACK GF.,223

main75732-48130-E0iTALH17202211

SONIC COPPER,4Y5

main75732-48130-J0iTALH17202211

HEAT BLUE CONTRAST LAYERI,8X1

75733CMOULDING, FRONT DOOR, OUTSIDE REAR RH

main75733-48030iAALH1#,TALA1#,TALH17202211

75734CMOULDING, FRONT DOOR, OUTSIDE REAR LH

main75734-48030iAALH1#,TALA1#,TALH17202211

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-48120iAALH1#,TALA1#202211

main75740-48130iTALH17202211

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-48130iAALH1#,TALA1#202211

main75741-48140-A0iTALH17202211

WHITE NOVA GF.,083

main75741-48140-B0iTALH17202211

SONIC IRIDIUM,1L2

main75741-48140-B1iTALH17202211

SONIC CHROME,1L1

main75741-48140-C0iTALH17202211

GRAPHITE BLACK GF.,223

main75741-48140-E0iTALH17202211

SONIC COPPER,4Y5

main75741-48140-J0iTALH17202211

HEAT BLUE CONTRAST LAYERI,8X1

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-48130iAALH1#,TALA1#202211

main75742-48140-A0iTALH17202211

WHITE NOVA GF.,083

main75742-48140-B0iTALH17202211

SONIC IRIDIUM,1L2

main75742-48140-B1iTALH17202211

SONIC CHROME,1L1

main75742-48140-C0iTALH17202211

GRAPHITE BLACK GF.,223

main75742-48140-E0iTALH17202211

SONIC COPPER,4Y5

main75742-48140-J0iTALH17202211

HEAT BLUE CONTRAST LAYERI,8X1

75743CMOULDING, REAR DOOR OUTSIDE, LWR RR RH

main75743-48030iAALH1#,TALA1#,TALH17202211

75744BMOULDING, REAR DOOR OUTSIDE, LWR RR LH

main75744-48030iAALH1#,TALA1#,TALH17202211

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-48030iAALH1#,TALA1#202211

main75753-48040iTALH17202211

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-48030iAALH1#,TALA1#202211

main75754-48040iTALH17202211

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-48070iAALH1#,TALA1#,TALH17202211

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-48070iAALH1#,TALA1#,TALH17202211

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-48050iAALH1#,TALA1#202211

main75763-48060iTALH17202211

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-48050iAALH1#,TALA1#202211

main75764-48060iTALH17202211

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-48050iAALH1#,TALA1#,TALH17202211

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-48050iAALH1#,TALA1#,TALH17202211

75850AMOULDING ASSY, BODY ROCKER PANEL, RH

main75850-48070iAALH1#,TALA1#,TALH17202211

75857ACOVER, ROCKER PANEL MOULDING, RH

main75857-48020×2iAALH1#,TALA1#,TALH17202211

75858ACOVER, ROCKER PANEL MOULDING, LH

main75857-48020×2iAALH1#,TALA1#,TALH17202211

75860AMOULDING ASSY, BODY ROCKER PANEL, LH

main75860-48070iAALH1#,TALA1#,TALH17202211

75867ACLIP, ROCKER PANEL MOULDING

main75867-33050×4iAALH1#,TALA1#,TALH17202211

75867CCLIP, ROCKER PANEL MOULDING

main75867-30130×16iAALH1#,TALA1#,TALH17202211

75867KCLIP, ROCKER PANEL MOULDING

main75867-30120×4iAALH1#,TALA1#,TALH17202211

75873BMOULDING, QUARTER WHEEL OPENING, RH

main75873-48030iAALH1#,TALA1#,TALH17202211

75874AMOULDING, QUARTER WHEEL OPENING, LH

main75874-48030iAALH1#,TALA1#,TALH17202211

76901BMUDGUARD SUB-ASSY, FENDER PANEL, RH

main76901-48020iAALH1#,TALA1#202211

main76901-48030-A0iTALH17202211

WHITE NOVA GF.,083

main76901-48030-B0iTALH17202211

SONIC IRIDIUM,1L2

main76901-48030-B1iTALH17202211

SONIC CHROME,1L1

main76901-48030-C0iTALH17202211

GRAPHITE BLACK GF.,223

main76901-48030-E0iTALH17202211

SONIC COPPER,4Y5

main76901-48030-J0iTALH17202211

HEAT BLUE CONTRAST LAYERI,8X1

76901CCLIP, FENDER PANEL MUDGUARD

main90467-10167×4iAALH1#,TALA1#,TALH17202211

76901DCLIP, FENDER PANEL MUDGUARD

main75867-33050×2iAALH1#,TALA1#,TALH17202211

76902BMUDGUARD SUB-ASSY, FENDER PANEL, LH

main76902-48020iAALH1#,TALA1#202211

main76902-48030-A0iTALH17202211

WHITE NOVA GF.,083

main76902-48030-B0iTALH17202211

SONIC IRIDIUM,1L2

main76902-48030-B1iTALH17202211

SONIC CHROME,1L1

main76902-48030-C0iTALH17202211

GRAPHITE BLACK GF.,223

main76902-48030-E0iTALH17202211

SONIC COPPER,4Y5

main76902-48030-J0iTALH17202211

HEAT BLUE CONTRAST LAYERI,8X1

9015960623

main90159-60623

9016240035

main90162-40035

9017905102

main90179-05102

9018904059

main90189-04059

9018905074

main90189-05074

9026904051

main90269-04051

9026904054

main90269-04054

9046705170

main90467-05170

9046707221

main90467-07221

9046707227

main90467-07227

9046708224

main90467-08224

9046708225

main90467-08225

9046722017

main90467-22017

65 parts on this diagram · 1 diagram in section
