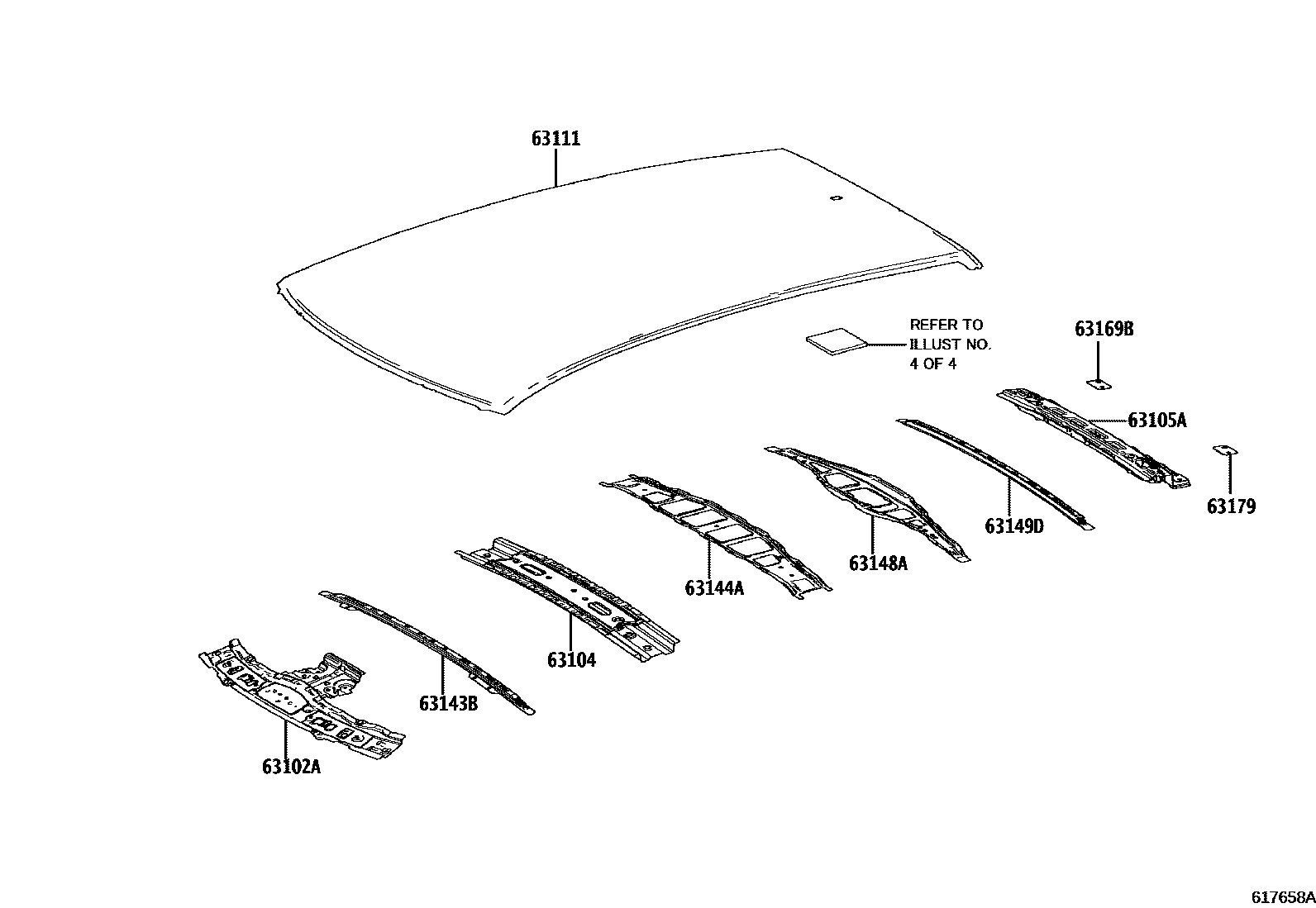

ROOF PANEL & BACK WINDOW GLASS

0001 1�������(�������) 0002 1�������(���/��������) 0003 1������������(���) 0004 1������������(��������) 0005 1������ 0006 1���������������

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-48280supersedes 63102-48919iAALH1#,TALA1#,TALH17202211

main63102-48920supersedes 63102-48919iAALH1#,TALA1#,TALH17202211

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-48090iAALH1#,TALA1#,TALH17202211

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-48900iAALH1#,TALA1#,TALH17202211

63111PANEL, ROOF

main63111-48420supersedes 63111-48430iAALH1#,TALA1#,TALH17202211

main63111-48440supersedes 63111-48430iAALH1#,TALA1#,TALH17202211

main63111-48450supersedes 63111-48430iAALH1#,TALA1#,TALH17202211

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-48130iAALH1#,TALA1#,TALH17202211

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-48120iAALH1#,TALA1#,TALH17202211

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-48060iAALH1#,TALA1#,TALH17202211

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63149-48060iAALH1#,TALA1#,TALH17202211

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-48010iAALH1#,TALA1#,TALH17202211

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-48010iAALH1#,TALA1#,TALH17202211

10 parts on this diagram · 6 diagrams in section
