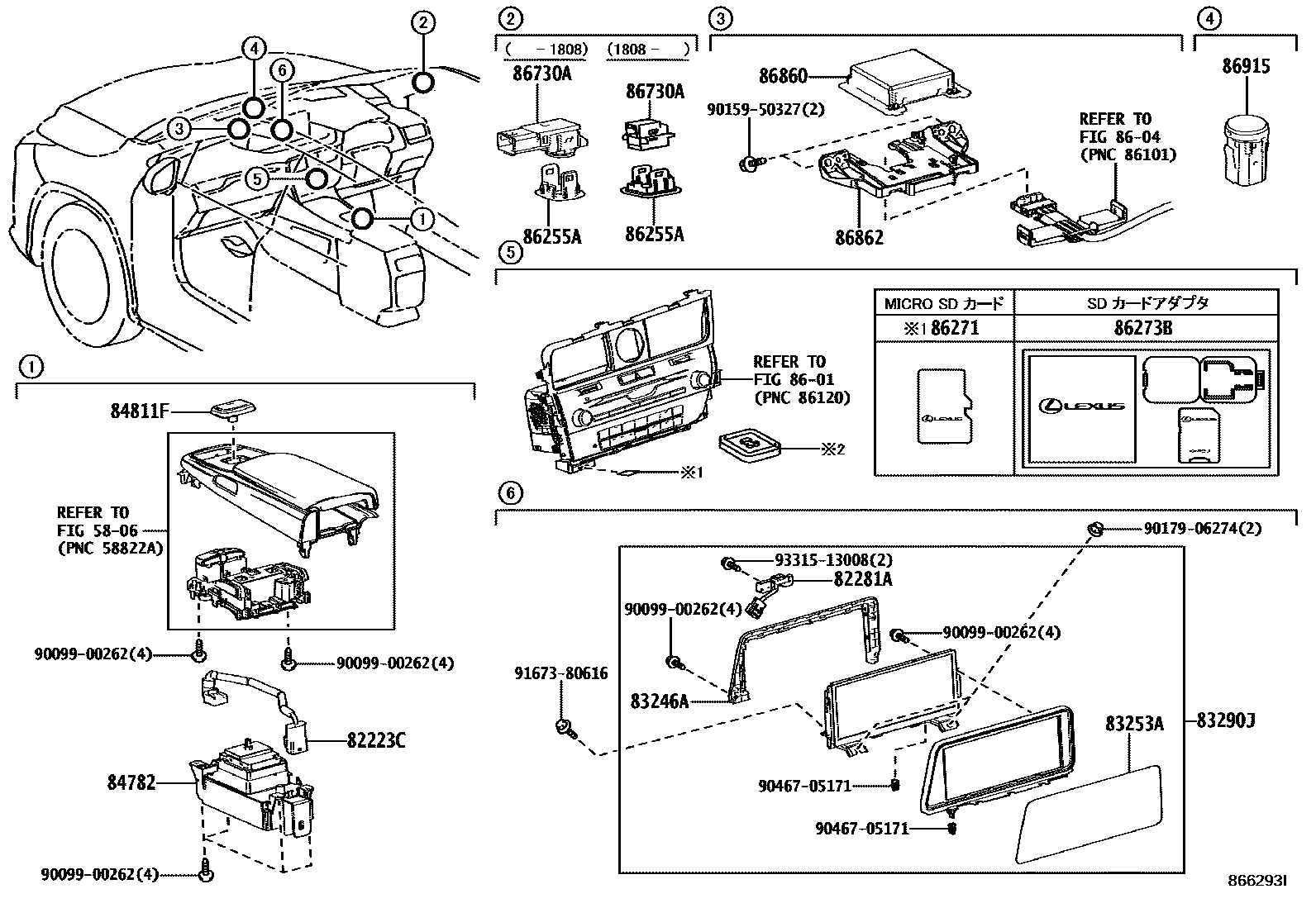

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

82223CWIRE, SWITCH

main82223-48040iAGL2#,GYL2#201509-201908

82281AWIRE, GAUGE

main82281-48010iAGL2#,GYL2#201509-201908

83246APANEL, MULTI INFORMATION DISPLAY

main83268-48120iAGL2#,GYL2#201510-201908

main83811-48120iAGL2#201509-201510

83253AGLASS, ACCESSORY METER

main83253-48120iAGL2#,GYL2#201509-201908

83290JMETER ASSY, ACCESSORY

main83290-48130iAGL2#,GYL2#201509-201712

main83290-48131iAGL2#,GYL2#201712-201908

84782BOARD, REMOTE OPERATION

main84782-48060iAGL2#,GYL2#201509-201606

main84782-48061iAGL2#,GYL2#201607-201908

84811FKNOB, SWITCH

main84811-48040iAGL2#,GYL2#201509-201908

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

8604ANTENNA

→ Go to FIG 86-04

86255ACASE, MICROPHONE, NO.1

main86255-48010-A0iAGL2#,GYL2#201509-201808

ECRU,TRIM00,01,02,03,04,5#,6#

main86255-48010-B0iAGL2#,GYL2#201509-201808

MOON STONE,TRIM20,21,22,23,24,4#

main86255-48010-C0iAGL2#,GYL2#201509-201808

BLACK,TRIM05,06,25,26,3#

main86255-78010-A0iAGL2#,GYL2#201908

ECRU,TRIM0#,5#,6#

main86255-78010-B0iAGL2#,GYL2#201808-201908

MOON STONE,TRIM20,21,22,23,24,4#

main86255-78010-C0iAGL2#,GYL2#201808-201908

BLACK,TRIM05,06,25,26,3#

main86255-78010-C1iAGL2#,GYL2#201908

BLACK,TRIM25,26,27,28,3#

86271DISC, DISC PLAYER

main86271-48260iAGL2#,GYL2#201509-201604

main86271-48261iAGL2#,GYL2#201604-201608

main86271-48410iAGL2#,GYL2#201712-201803

main86271-48411iAGL2#,GYL2#201804-201808

main86271-48412iAGL2#,GYL2#201809-201904

main86271-48413iAGL2#,GYL2#201905-201908

main86271-53401iAGL2#,GYL2#201608-201704

main86271-53402iAGL2#,GYL2#201704-201709

main86271-53403iAGL2#,GYL2#201709-201712

86273BADAPTER, DISC PLAYER

main86273-53010iAGL2#,GYL2#201509-201908

86730AMICROPHONE ASSY, TELEPHONE

main86730-45030iAGL2#,GYL2#202106

main86730-48090iAGL2#,GYL2#201509-201808

main86730-48100iAGL2#,GYL2#201808-201908

86860ANTENNA ASSY, NAVIGATION

main86880-78010iAGL2#,GYL2#201908

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iAGL2#,GYL2#201810-201908

main86862-58020iAGL2#,GYL2#201509-201809

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010iAGL2#,GYL2#201509-201908

9009900262

main90099-00262

9015950327

main90159-50327

9017906274

main90179-06274

9046705171

main90467-05171

9167380616

main91673-80616

9331513008

main93315-13008

23 parts on this diagram · 2 diagrams in section
