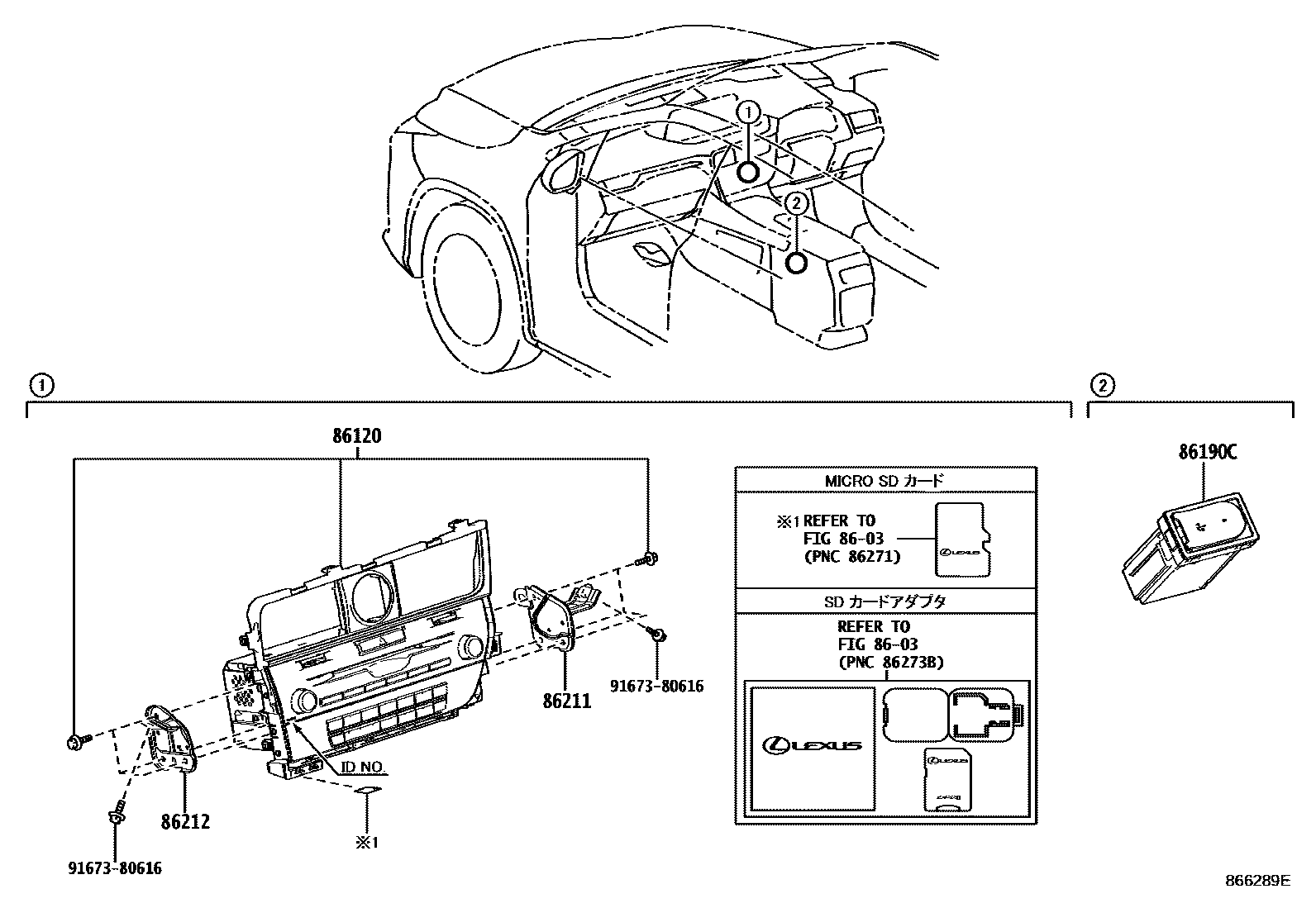

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1���� 0004 1���� 0005 1������

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86120-48R20supersedes 86120-48R10iAGL2#,GYL2#201908-202007

main86120-4D500supersedes 86120-4D490iAGL2#,GYL2#202007-202209

main86804-48530supersedes 86804-48520iAGL2#,GYL2#201509-201608

main86804-48A40supersedes 86804-48A30iAGL2#,GYL2#201608-201712

main86804-48K10supersedes 86804-48K00iAGL2#,GYL2#201712-201908

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-24030iAGL2#,GYL2#201908

main86190-78010iAGL2#,GYL2#201509-201908

86211BRACKET, RADIO, NO.1

main86211-48160iAGL2#,GYL2#201509-201908

main86211-48250iAGL2#,GYL2#201908

86212BRACKET, RADIO, NO.2

main86212-48160iAGL2#,GYL2#201509-201908

main86212-48240iAGL2#,GYL2#201908

9167380616

main91673-80616

6 parts on this diagram · 5 diagrams in section
