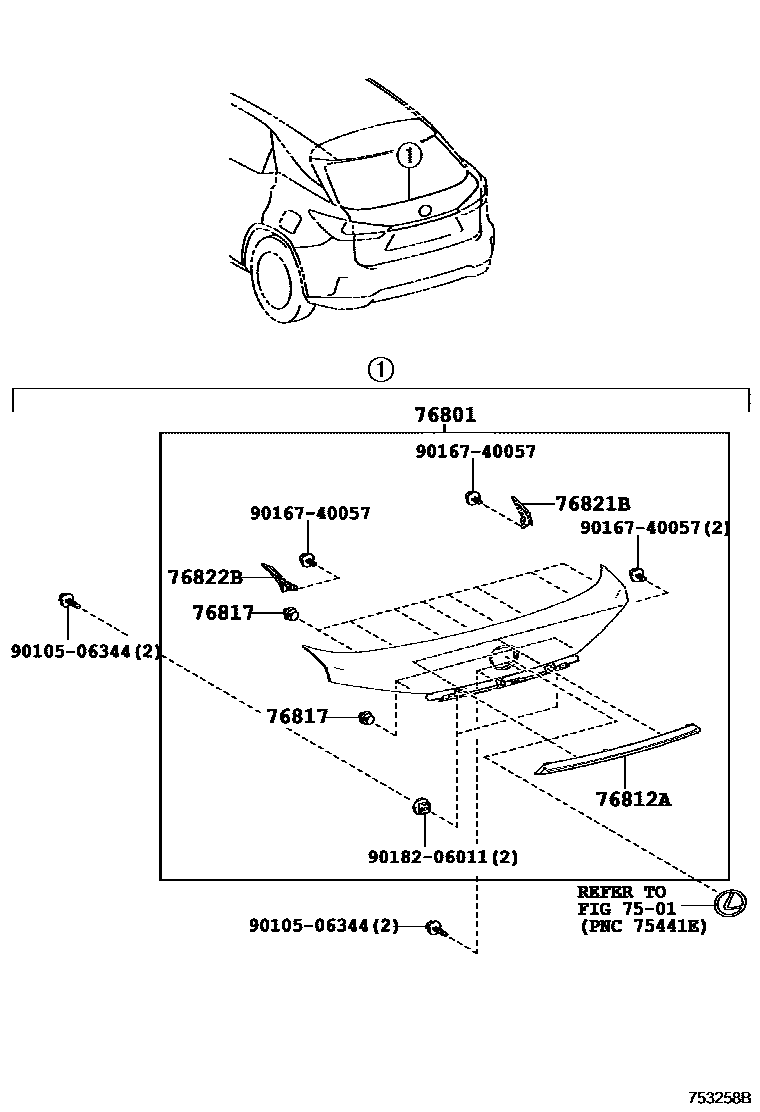

REAR MOULDING

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-48440-A1iAGL2#,GYL2#201908

main76801-48440-B3iAGL2#,GYL2#201509-201908

main76801-48440-E0iAGL2#,GYL2#201509-201908

main76801-48440-E1iAGL2#,GYL2#201908-202107

main76801-48440-E2iAGL2#,GYL2#201908

main76801-48440-G0iAGL2#,GYL2#201908

main76801-48440-J1iAGL2#,GYL2#201608-201908

main76801-48430-A0supersedes 76801-48440-A0iAGL2#,GYL2#201908

main76801-48430-B1supersedes 76801-48440-B2iAGL2#,GYL2#201908

main76801-48430-B2supersedes 76801-48440-B4iAGL2#,GYL2#202107

main76801-48430-B3supersedes 76801-48440-B5iAGL2#,GYL2#202107

main76801-48430-C0supersedes 76801-48440-C0iAGL2#,GYL2#201908

main76801-48430-C1supersedes 76801-48440-C1iAGL2#,GYL2#201908

main76801-48430-D0supersedes 76801-48440-D0iAGL2#,GYL2#201908

main76801-48430-J0iAGL2#,GYL2#201908

main76801-48430-J1supersedes 76801-48440-J0iAGL2#,GYL2#201908

76812AGARNISH, BACK DOOR, OUTSIDE NO.2

main76812-48150supersedes 76812-48110iAGL2#,GYL2#201908

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-09206×10iAGL2#,GYL2#201509-201908

76821BPROTECTOR, BACK DOOR GARNISH SIDE, RH

main76821-48040iAGL2#,GYL2#201509-201908

76822BPROTECTOR, BACK DOOR GARNISH SIDE, LH

main76822-48040iAGL2#,GYL2#201509-201908

9010506344

main90105-06344

9016740057

main90167-40057

9018206011

main90182-06011

9 parts on this diagram · 1 diagram in section
