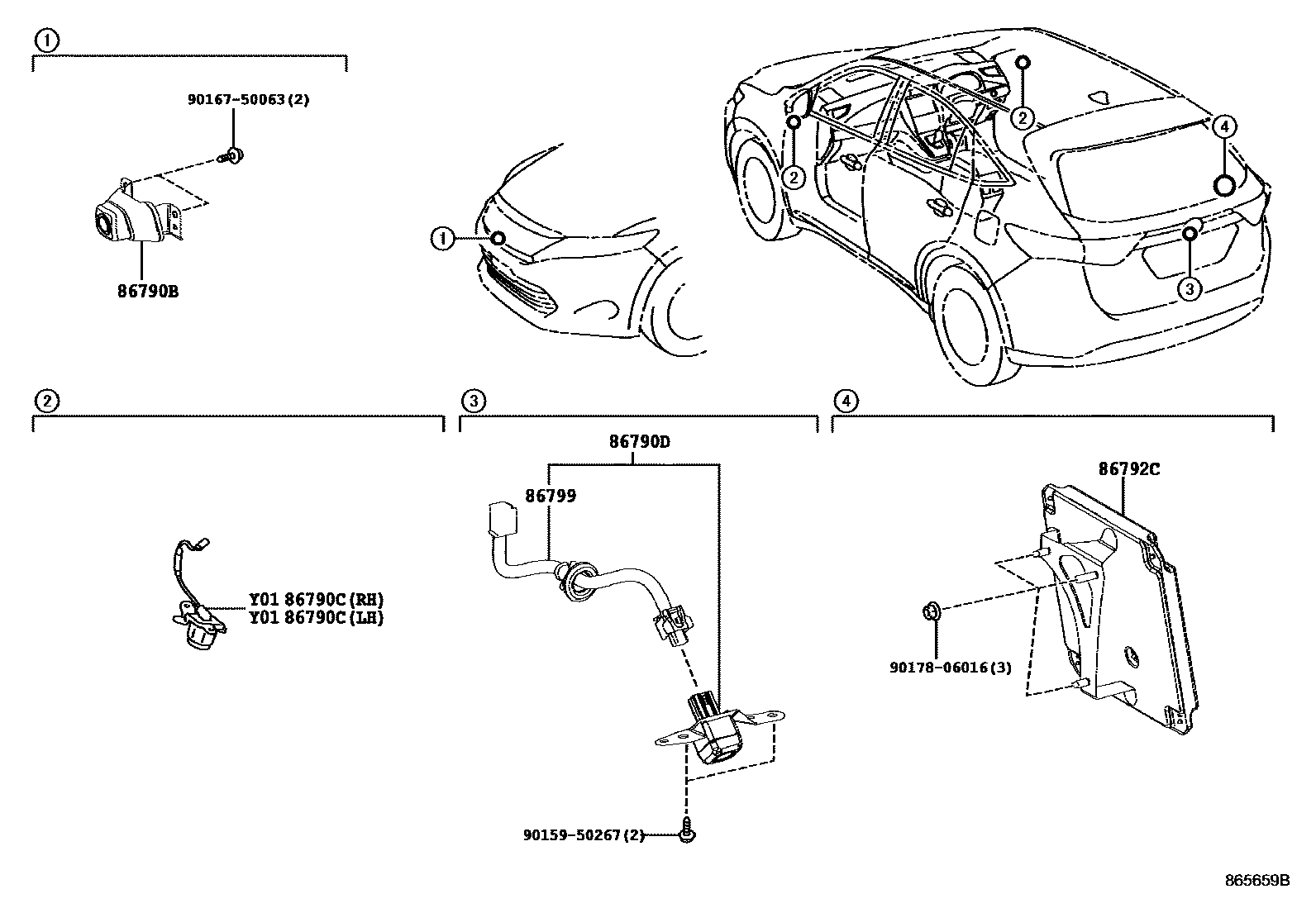

CAMERA & REAR MONITOR DISPLAY

86790BCAMERA ASSY, TELEVISION, FR

main86790-48200iASU6#,AVU65,ZSU6#..PROGR201705

main86790-48190iAVU65,ZSU6#..PREM201312-201705

86790CCAMERA ASSY, TELEVISION, SIDE

main86790-48150iASU6#,AVU65,ZSU6#..PROGR201705

main86790-48160iASU6#,AVU65,ZSU6#..PROGR201705

86790DCAMERA ASSY, TELEVISION, RR

main86790-48180iASU6#,AVU65,ZSU6#..PROGR201705

main86790-48170iAVU65,ZSU6#..ELEGC,GRAND; AVU65,ZSU6#..ELEGC,PREM201312-201705

86792CCOMPUTER, PARKING ASSIST

main86792-48362iASU6#,AVU65,ZSU6#..PROGR201705-201908

main86792-48363iASU6#,AVU65,ZSU6#..PROGR201909

main86792-48360iAVU65,ZSU6#..PREM201312-201506

main86792-48361iAVU65,ZSU6#..PREM201506-201705

86799WIRE, TELEVISION CAMERA

main86799-48030iASU6#,AVU65,ZSU6#..PROGR201705

main86799-48020iAVU65,ZSU6#..ELEGC,GRAND; AVU65,ZSU6#..ELEGC,PREM201312-201705

9015950267

main90159-50267

9016750063

main90167-50063

9017806016

main90178-06016

8 parts on this diagram · 1 diagram in section
