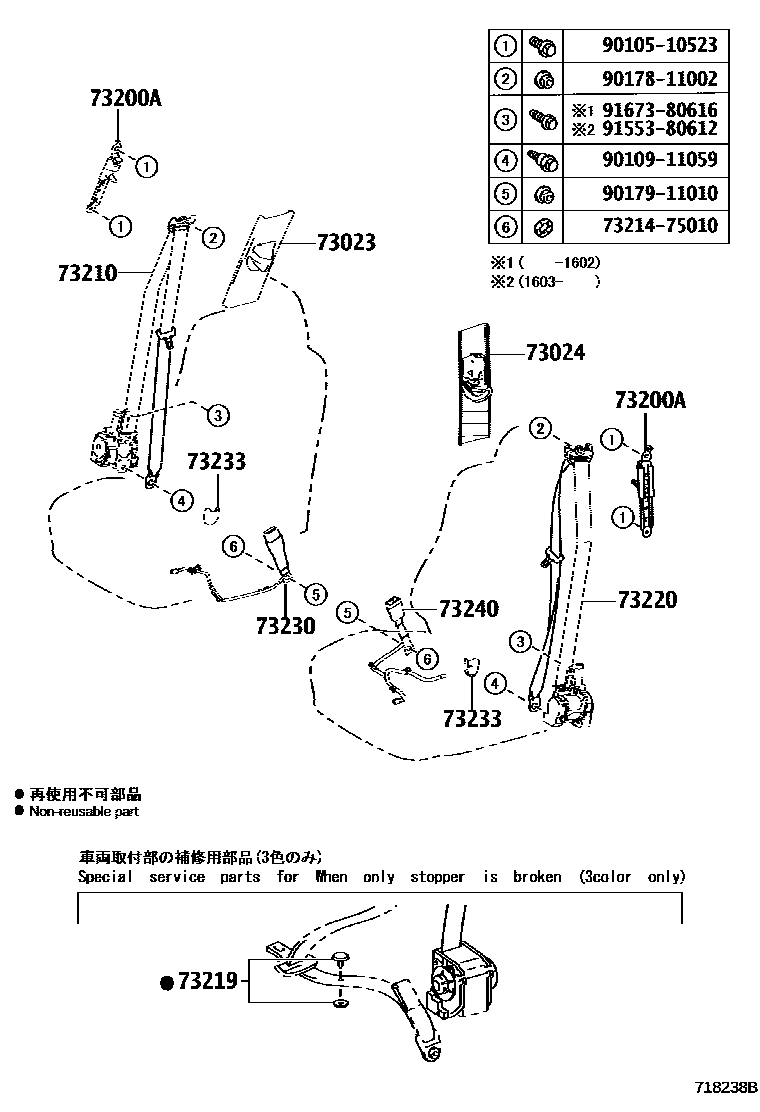

SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0002 1�����

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-33030-C0iAVU65,ZSU6#..ELEGC; AVU65,ZSU6#..GRAND; AVU65,ZSU6#..PREM201312-201705

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-33030-C0iAVU65,ZSU6#..ELEGC; AVU65,ZSU6#..GRAND; AVU65,ZSU6#..PREM201312-201705

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iAVU65,ZSU6#201507-201705

main73200-53010×2iAVU65,ZSU6#201312-201507

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-48560-C0iAVU65,ZSU6#..ELEGC; AVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#

main73210-48560-K0iAVU65,ZSU6#..PREM201506-201606

DARK VIOLET,TRIM44

main73210-48610-C0iASU6#..ELEGC,PREM; ASU6#..PROGR; AVU65,ZSU6#..ELEGC,PREM; AVU65,ZSU6#..PROGR201705

BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM2#,4#,8#; BLACK,TRIM2#,8#

73219STOPPER, TONGUE PLATE

main73219-33010iASU6#,AVU65,ZSU6#201705

main73219-33020iAVU65,ZSU6#201312-201705

main73219-33030iAVU65,ZSU6#201312-201705

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-48490-C0iASU6#..ELEGC,PREM; ASU6#..PROGR; AVU65,ZSU6#..ELEGC,PREM; AVU65,ZSU6#..PROGR201705

BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM2#,4#,8#; BLACK,TRIM2#,8#

main73220-48510-C0iAVU65,ZSU6#..ELEGC; AVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#

main73220-48510-K0iAVU65,ZSU6#..PREM201506-201606

DARK VIOLET,TRIM44

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-48470-C0iAVU65,ZSU6#..GRAND201312-201705

BLACK,TRIM2#,4#

main73230-48490-C0iAVU65,ZSU6#..ELEGC; AVU65,ZSU6#..PREM201312-201705

main73230-48590-C0iASU6#..ELEGC,PREM; ASU6#..PROGR; AVU65,ZSU6#..ELEGC,PREM; AVU65,ZSU6#..PROGR201705

BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM2#,4#,8#; BLACK,TRIM2#,8#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C0×2iAVU65,ZSU6#..ELEGC; AVU65,ZSU6#..GRAND; AVU65,ZSU6#..PREM201312-201610

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#

main73233-60020-C1×2iAVU65,ZSU6#..ELEGC; AVU65,ZSU6#..GRAND; AVU65,ZSU6#..PREM201610-201705

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-48480-C0iASU6#..ELEGC,PREM; ASU6#..PROGR; AVU65,ZSU6#..ELEGC,PREM; AVU65,ZSU6#..PROGR201705

BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM2#,4#,8#; BLACK,TRIM2#,8#

main73230-48500-C0iAVU65,ZSU6#..PREM201505-201606

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010911059

main90109-11059

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

9167380616

main91673-80616

16 parts on this diagram · 2 diagrams in section
